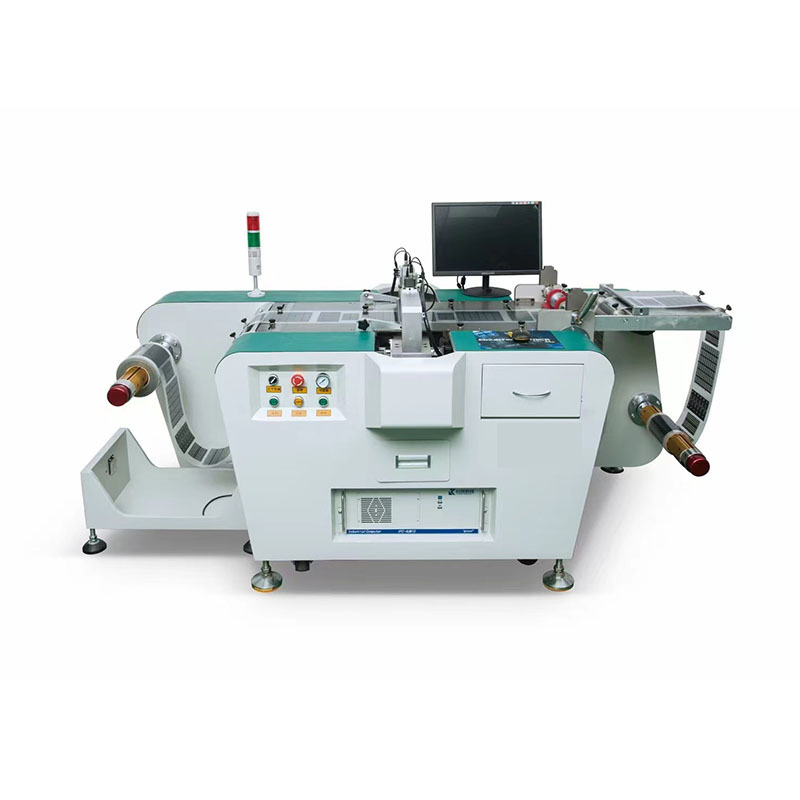

500mm R2R Dual-Head CCD Hole Punching Machine with ±0.015mm Precision
500mm R2R Dual-Head CCD Hole Punching Machine with ±0.015mm Precision
Specifications
Brand Name :
SILITRON
Model Number :
SLTQ-350/500
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L2200 x W1400 x H1250mm
Material of punch die :
SKD11/61 quenched
Punch die service life :
1-5 million cycles
Precision :
±0.015mm
Air pressure :
0.6-0.8MPa
Description
Application Fields

This machine is designed for processing various roll materials including: PET, PC, PVC, IMI/IMD materials, Flexible circuits and films, Mobile phone panels and keypads, Aluminum substrates and nameplates, Membrane switches and keyboards, Medical labels and glucose testing strips, Graphic overlays and self-adhesive labels, Vehicle panels and heat transfer labels.

Punching Samples
500mm R2R Dual-Head CCD Hole Punching Machine with ±0.015mm Precision
Product Features

  • 3–4x Higher Productivity – Dual-head punching achieves unmatched throughput compared to traditional single-head systems.

  • Smarter Manpower Use – One operator can oversee multiple machines at once, significantly cutting labor costs.

  • All-in-One Functionality – From feeding to punching, static removal, cutting, and collecting, the entire workflow is automated.

  • Seamless Workflow Integration – Designed to align perfectly with automatic screen printing lines, making automation more efficient.

  • Future-Ready Workforce – Reduces dependence on skilled labor, lightens workloads, and improves working conditions — solving the hiring difficulty problem faced by many enterprises.

Technical Parameters
Model SLTQ-350/500(90-500)
Hole diameter Φ1 mm-Φ5mm
Max material width 500mm
Max punching force 4000kN
Multiple light sources white & colors
Air pressure 0.6-0.8MPa
Punching precision ±0.015mm
Punching speed 0.5s/2 holes (tested based on hole distance 100mm)
Power 1.5kW
Voltage AC200V~240V
Dimension L2100mm x W1300mm x H1100mm
Weight 600kg
Workable Marks
500mm R2R Dual-Head CCD Hole Punching Machine with ±0.015mm Precision

Main Components
  • Transmission components: Motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate
  • Pneumatic components: Solenoid valve, cylinder, oil-water filter, punching die, control relay
  • Vision components: Video capture card, camera, lens, infrared light source, touchscreen display
  • Control components: Industrial PC, motion control card, SLT automatic punching software, camera auto-positioning system
  • Electrical components: AC-DC power supply, short-circuit protection air switch, driver, solenoid valve
