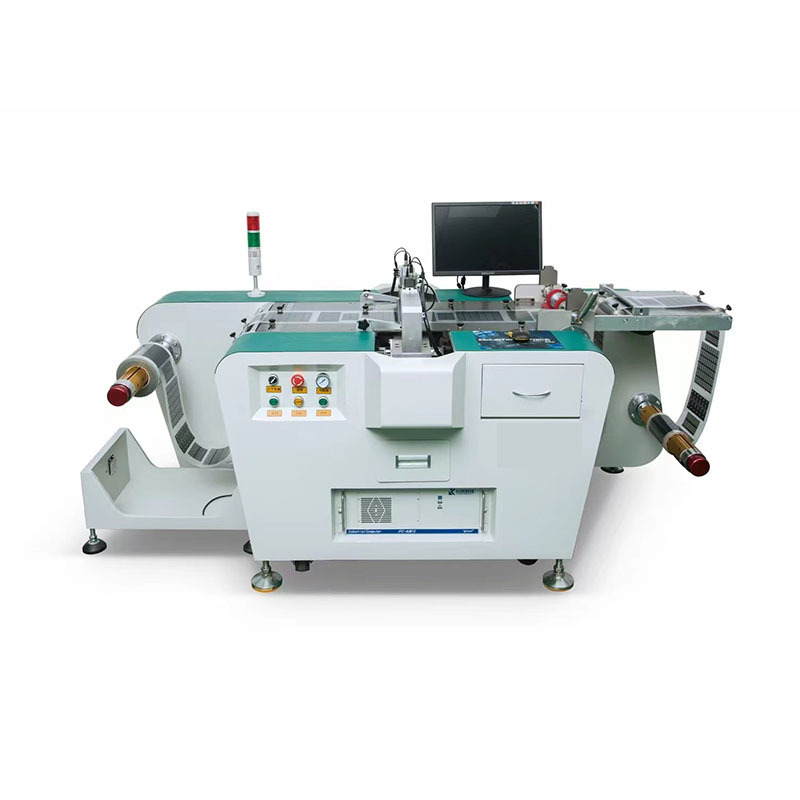

Roll-to-Roll Dual-Head CCD Hole Punching Machine for Flexible Printed Circuits
Roll-to-Roll Dual-Head CCD Hole Punching Machine for Flexible Printed Circuits
Specifications
Brand Name :
SILITRON
Model Number :
SLTQ-350/500
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L2200 x W1400 x H1250mm
Material of punch die :
SKD11/61 quenched
Punch die service life :
1-5 million cycles
Precision :
±0.015mm
Air pressure :
0.6-0.8MPa
Description
Application Fields

Suitable for various trademarks, labels, mobile phone keypads, mobile panels, conductive films, membrane switches, films, IMD/IML, FPC flexible circuits, and PET/PVC/PC/PP flexible roll materials for positioning hole punching and roll-to-roll sheet cutting

Punching Samples
Roll-to-Roll Dual-Head CCD Hole Punching Machine for Flexible Printed Circuits
Product Features

  • Efficiency Advantage – The fully automatic dual-head punching machine delivers 3–4 times the efficiency of a single-head unit, dramatically boosting production.

  • Labor Advantage – Single-head machines require manual loading and one operator per unit, while a fully automatic system allows one person to manage multiple machines, reducing labor costs.

  • Function Advantage – With automatic feeding, positioning, punching, static removal, cutting, collecting, and die-cutting, one machine integrates multiple functions for full automation.

  • Integration Advantage – Perfectly complements fully automatic screen printing machines, serving as the next seamless process step in large-scale production lines.

  • Workplace Advantage – Helps companies address labor shortages by transforming heavy technical work into light, simple tasks, improving the working environment and easing recruitment challenges.

Technical Parameters
Model SLTQ-350/500(90-500)
Hole diameter Φ1 mm-Φ5mm
Max material width 350mm
Max punching force 4000kN
Multiple light sources white & colors
Air pressure 0.6-0.8MPa
Punching precision ±0.02mm
Punching speed 0.5s/2 holes (tested based on hole distance 100mm)
Power 1.5kW
Voltage AC200V~240V
Dimension L2100mm x W1300mm x H1100mm
Weight 600kg
Workable Marks
Roll-to-Roll Dual-Head CCD Hole Punching Machine for Flexible Printed Circuits

Main Components
  • Transmission components: Motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate
  • Pneumatic components: Solenoid valve, cylinder, oil-water filter, punching die, control relay
  • Vision components: Video capture card, camera, lens, infrared light source, touchscreen display
  • Control components: Industrial PC, motion control card, SLT automatic punching software, camera auto-positioning system
  • Electrical components: AC-DC power supply, short-circuit protection air switch, driver, solenoid valve
