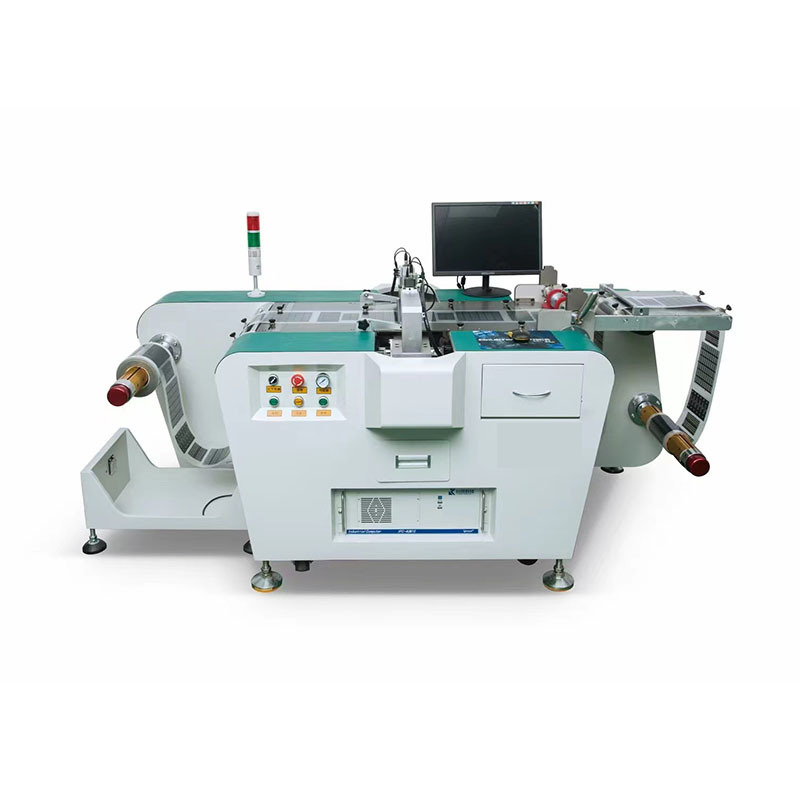

R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision
R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision
R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision
R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision
Specifications
Brand Name :
SILITRON
Model Number :
SLTQ-350/500
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L2200 x W1400 x H1250mm
Material of punch die :
SKD11/61 quenched
Punch die service life :
1-5 million cycles
Precision :
±0.015mm
Air pressure :
0.6-0.8MPa
Description
Application Fields

This machine is designed for processing various roll materials including:

  • PET, PC, PVC, IMI/IMD materials
  • Flexible circuits and films
  • Mobile phone panels and keypads
  • Aluminum substrates and nameplates
  • Membrane switches and keyboards
  • Medical labels and glucose testing strips
  • Graphic overlays and self-adhesive labels
  • Vehicle panels and heat transfer labels
Punching Samples
R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision
Product Features
  • Efficiency Advantage: Delivers 3-4 times the output of single-head machines, significantly increasing production capacity.
  • Labor Advantage: Fully automated operation allows one operator to manage multiple machines, reducing workforce requirements.
  • Function Advantage: Integrates automatic feeding, positioning, punching, static removal, cutting, and collecting in one system.
  • Integration Advantage: Seamlessly connects with automatic screen printing machines for complete production line solutions.
  • Workplace Advantage: Transforms complex technical work into simple operations, improving working conditions and recruitment potential.
Technical Parameters
Model SLTQ-350/500(90-500)
Hole diameter Φ1 mm-Φ5mm
Max material width 350mm
Max punching force 4000kN
Multiple light sources white & colors
Air pressure 0.6-0.8MPa
Punching precision ±0.02mm
Punching speed 0.5s/2 holes (tested based on hole distance 100mm)
Power 1.5kW
Voltage AC200V~240V
Dimension L2100mm x W1300mm x H1100mm
Weight 600kg
Workable Marks
R2R Dual-Head CCD Hole Punching Machine for Heat Transfer Label 350mm Wide ±0.015mm Precision

Main Components
  • Transmission components: Motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate
  • Pneumatic components: Solenoid valve, cylinder, oil-water filter, punching die, control relay
  • Vision components: Video capture card, camera, lens, infrared light source, touchscreen display
  • Control components: Industrial PC, motion control card, SLT automatic punching software, camera auto-positioning system
  • Electrical components: AC-DC power supply, short-circuit protection air switch, driver, solenoid valve
