Application Fields

It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, nameplates, polycarbonate, membrane switches, decals, vehecle panel, keyboards, dials, demos, heat transfer label, front panel, flex printed circuits, medical labels, graphic overlays, glucose testing strips, self-adhesive label, membrane keyboard, and other roll materials.

Punching Samples

Product Features

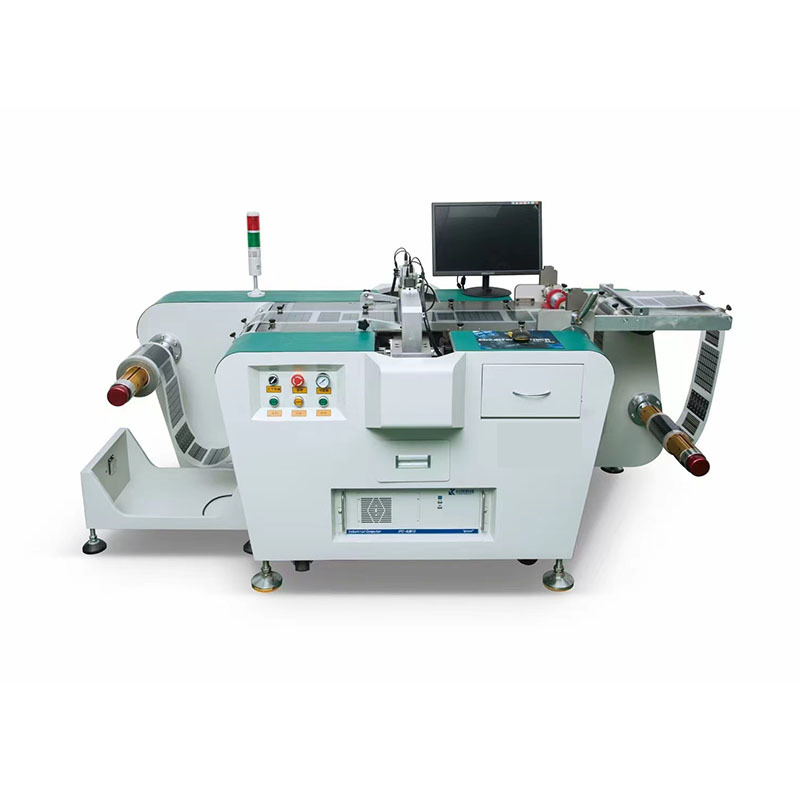

• Efficiency Advantage – The fully automatic dual-head punching machine delivers 3–4 times the efficiency of a single-head unit, dramatically boosting production.

• Labor Advantage – Single-head machines require manual loading and one operator per unit, while a fully automatic system allows one person to manage multiple machines, reducing labor costs.

• Function Advantage – With automatic feeding, positioning, punching, static removal, cutting, collecting, and die-cutting, one machine integrates multiple functions for full automation.

• Integration Advantage – Perfectly complements fully automatic screen printing machines, serving as the next seamless process step in large-scale production lines.

• Workplace Advantage – Helps companies address labor shortages by transforming heavy technical work into light, simple tasks, improving the working environment and easing recruitment challenges.

Technical Parameters

Main Components

• Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
• Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
• Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
• Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
• Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
•
