Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVDF-HST
Certification :
ROHS, REACH
Place of Origin :
CHINA
MOQ :
1000M
Price :
USD$0.058 to $2.0/M
Payment Terms :
T/T, Western Union
Supply Ability :
20,000M/DAY
Delivery Time :
5~7 days
Packaging Details :
Spools in carton
Material :
PVDF
Working temperature :
-55~+175 degree C
Shrink Ratio :
2:1
Shrink Temperature :
175 degree C
Size :
1.2mm to 38.1mm
Tensile Strength :
>25MPA
Flammability :
VW-1
Anti-aging :
Outstanding
Heat and Cold resistance :
Outstanding
Min Shrink temperature :
155 degree C
Description

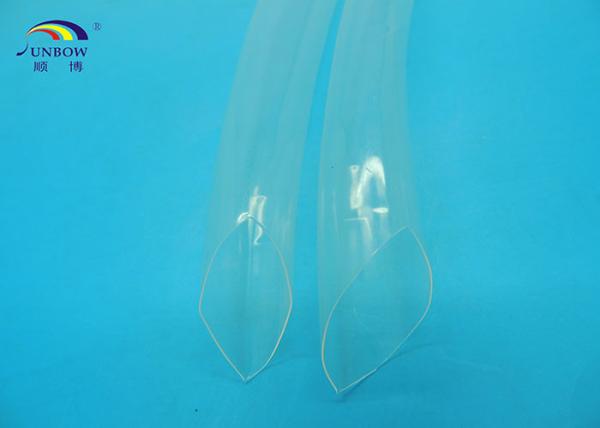

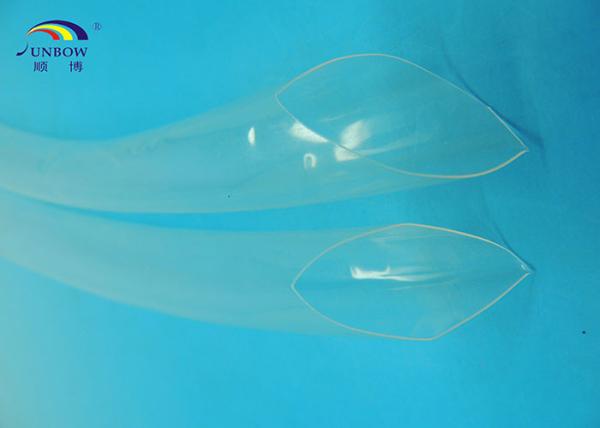

Chemical and aolvent resistant vinylidene fluoride PVDF heat shrink tube for electric cable and wire insulation

Model Number: SB-PVDF-HST

Operating Temperature: -55°C - 175°C

Structure

These thin wall heat shrinkable tube are the polyvinylidene fluoride composed and treated in radiation modification. These tubing possesses good wear & heat resistant, oil & chemical solvent resistant and flame retarding.

Characteristics

1. High withstand to abrasion and cut-through

2. Excellent chemical and solvent resistance

3. Shrink Temperature: 175°C

4. Shrink ratio: 2:1

Usage

Semi-rigid thin wall PVDF heat shrink tubing, ideal for electronic, automotive and military applications requiring protection and see-through inspection. It can be widely used in high temperature, industrial fuels, solvents and chemical erosion of weld, terminal and the connection to protect the cables .

Aolvent Resistant Clear Plastic Tubing vinylidene fluoride PVDF Heat Shrink Tube for Cable and Wire Insulation

Specification

Item

Test Method

Unit

Specifications

Min. shrink temperature

-

°C

155

Operation temperature

-

°C

-55~175

Specific Gravity

ASTM D792

g/cm3

1.78

Tensile strength

ASTM D2671

M Pa

≥25

Elongation at break

ASTM D2671

%

≥550

After Aging Elongation

250°C,168h

%

≥500

Heat Shock

300°C, 4h

-

No Cracking

Cold Bend

-55°C, 4h

-

No Cracking

Volume Resistivity

ASTM D257

Ω.cm

≥1014

Flammability Rating

UL-224

VW-1

Pass

Dimension

Size

As supplied (mm)

After recovery (mm)

Standard Package

Inch

mm

Internal Diameter (mm)

Internal Diameter (mm)

Wall Thickness (mm)

M/Spool

3/64

1.2

1.2

0.6

0.25±0.05

200

1/16

1.6

1.6

0.8

0.25±0.05

200

3/32

2.4

2.4

1.2

0.25±0.05

200

1/8

3.2

3.2

1.6

0.25±0.05

100

3/16

4.8

4.8

2.4

0.25±0.05

100

1/4

6.4

6.4

3.2

0.30±0.05

100

3/8

9.5

9.5

4.8

0.30±0.05

50

1/2

12.7

12.7

6.4

0.30±0.05

50

3/4

19.1

19.1

9.5

0.42±0.05

50

1

25.4

25.4

12.7

0.50±0.05

50

1-1/2

38.1

38.1

19.1

0.50±0.05

50

Advantages

  1. Excellent wear, heat resistance.
  2. Good oil and chemical solvent resistance
  3. Excellent flame retardant
  4. High withstand to abrasion and sut through
  5. Shrink temperature: 175 degree C
  6. Shrink ratio: 2:1
  7. Fast shrinking
  8. Very soft and flexible
  9. Various sizes available, from 1.2mm to 38.1mm
  10. Excellent tensile strength
  11. Heat and color resistance
  12. Anti-aging
  13. Fast delivery time
  14. Free sample available
