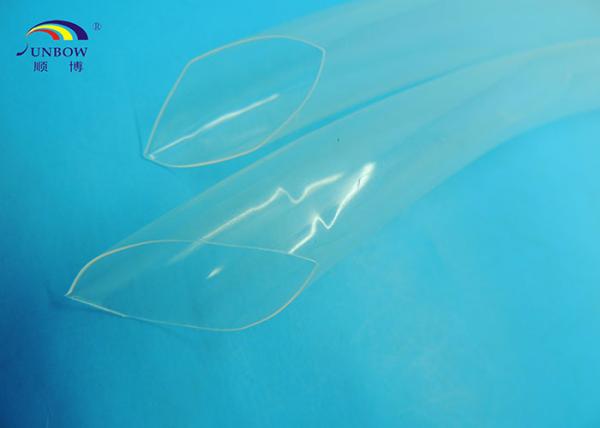

Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable
Specifications
Brand Name :
SUNBOW
Model Number :
SB-FEP-HST
Certification :
ROHS, REACH
Place of Origin :
CHINA
MOQ :
1000M
Price :
USD0.2 TO $2.58/M
Payment Terms :
T/T, Western Union
Supply Ability :
20,000M/DAY
Delivery Time :
5~7 work days
Packaging Details :
spools in cartons
Working temperature :
-80~+200 degree C
Shrinkage temperature :
+200 ~+250 degree C
Melting temperature :
260 ~270 degree C
Shrink ratio :
35%
Toughness :
Outstanding
Flame retardant :
VW-1
Tensile strength :
>21MPA
Size :
1.0mm to 30mm
Wall thickness :
0.2mm to 0.4mm
Water resistance :
Outstanding
Description

Non-flammable heat shrinkable FEP tubes with high working temperature, High temperature FEP heat shrink tubes

Main Features:

1. High working tempeature

2. widely application

3. All sizes available from 1.0mm to 30.0mm

Model Number: SB-FEP-HST

Working temperature:-80 ~ +200 ºC

Shrinkage temperature: +200 ~ +250 ºC

Semi-rigid Thin Wall Heat Shrinkable FEP Tubes High Temperature and Non-flammable

Usage

Mainly used for insulation and sheath, electrical components, wires, cables, under various frequencies;

liquid crystal manufacturing apparatus, the single end emitting single core fiber tube, heat exchanger,

steam piping, high purity reagents conveying pipe, all kinds of corrosive medium conveying pipe.

Specifications

Color

Clear, Black etc

Melting temperature ºC

260--270

Working temperature ºC

-80--200

Shrinkage temperature ºC

200-250

Integrated index

g/10min4-

12

proportion

2.15

Effect of corrosion on copper

No corrosion

Antibacterial property, corrosion resistance

Good

Toughness

Good

Tensile strength Mpa (kgf/cm)

＞21.0

The decomposition temperature ºC

360

Flame retardant

VW-1

Environmental protection

On the human body and no harm to the environment

Dimension

As supplied ID (mm) After recovery
ID (mm) Wall Thickness (mm)
1.0±0.15 0.75 0.2-0.3
1.6±0.2 1.2 0.2-0.3
2.4±0.2 1.6 0.2-0.3
3.2±0.2 2.5 0.2-0.3
4.8±0.2 3.5 0.2-0.3
5.72±0.2 4.5 0.25-0.3
9.4±0.2 7.2 0.25-0.3
10.0±0.2 8.5 0.3-0.4
12.7±0.2 9.5 0.3-0.4
16.0±0.2 12.3 0.3-0.4
18.0±0.2 13.8 0.3-0.4
19.0±0.2 14.6 0.3-0.4
20.0±0.2 15.4 0.3-0.4
22.0±0.2 17 0.3-0.4
25.0±0.3 19.3 0.4-0.5
28.0±0.3 21.6 0.4-0.5
30.0±0.3 23.1 0.4-0.5

Advantages

  1. Excellent wear, heat resistance.
  2. Good oil and chemical solvent resistance
  3. Excellent flame retardant
  4. High withstand to abrasion and sut through
  5. Shrink temperature: 200 degree C to 250 degree C
  6. Fast shrinking
  7. Very soft and flexible
  8. Fast delivery time
  9. Free sample available
  10. Excellent tensile strength
  11. Heat and color resistance 1
  12. Anti-aging
  13. Large application
