Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVDF-HST
Certification :
ROHS, REACH
Place of Origin :
CHINA
MOQ :
1000M
Price :
USD$0.058 to $2.0/M
Payment Terms :
T/T, Western Union
Supply Ability :
20,000M/DAY
Delivery Time :
5~7 days
Packaging Details :
Spools in carton
Material :
PVDF
Working temperature :
-55~+175 degree C
Shrink Ratio :
2:1
Shrink Temperature :
175 degree C
Size :
1.2mm to 38.1mm
Tensile Strength :
>25MPA
Flammability :
VW-1
Anti-aging :
Outstanding
Heat and Cold resistance :
Outstanding
Min Shrink temperature :
155 degree C
Description

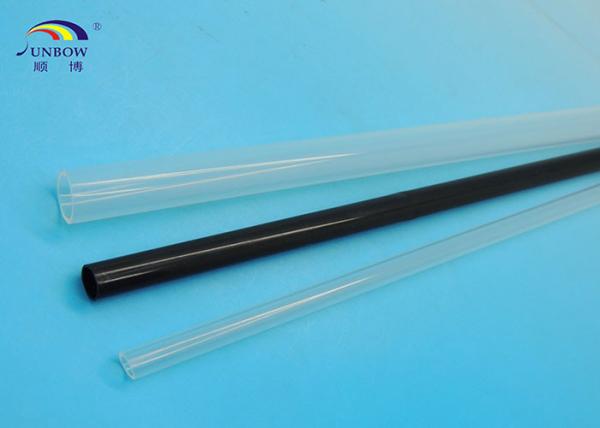

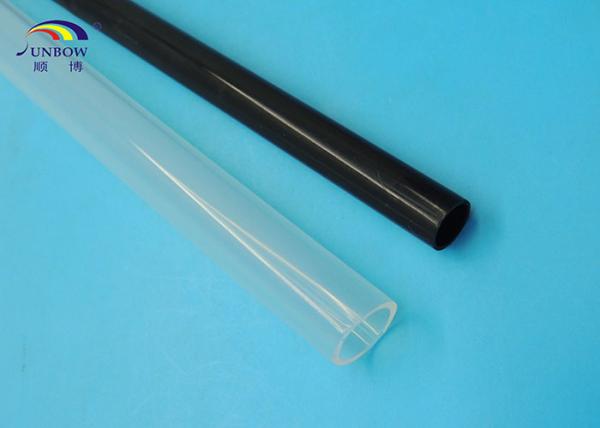

175 deg C PVDF heat shrinkable tubing clear plastic tubing in 2:1 shrink ratio clear

Model Number: SB-PVDF-HST

Operating Temperature: -55°C - 175°C

Structure

These thin wall heat shrinkable tube are the polyvinylidene fluoride composed and treated in radiation modification. These tubing possesses good wear & heat resistant, oil & chemical solvent resistant and flame retarding.

Characteristics

1. High withstand to abrasion and cut-through

2. Excellent chemical and solvent resistance

3. Shrink Temperature: 175°C

4. Shrink ratio: 2:1

Flexible Clear Plastic Tubing PVDF Heat Shrinkable Tube / Pipes / Sleeving 175°C

Usage

Semi-rigid thin wall PVDF heat shrink tubing, ideal for electronic, automotive and military applications requiring protection and see-through inspection. It can be widely used in high temperature, industrial fuels, solvents and chemical erosion of weld, terminal and the connection to protect the cables .

Specification

Item

Test Method

Unit

Specifications

Min. shrink temperature

-

°C

155

Operation temperature

-

°C

-55~175

Specific Gravity

ASTM D792

g/cm3

1.78

Tensile strength

ASTM D2671

M Pa

≥25

Elongation at break

ASTM D2671

%

≥550

After Aging Elongation

250°C,168h

%

≥500

Heat Shock

300°C, 4h

-

No Cracking

Cold Bend

-55°C, 4h

-

No Cracking

Volume Resistivity

ASTM D257

Ω.cm

≥1014

Flammability Rating

UL-224

VW-1

Pass

Dimension

Size

As supplied (mm)

After recovery (mm)

Standard Package

Inch

mm

Internal Diameter (mm)

Internal Diameter (mm)

Wall Thickness (mm)

M/Spool

3/64

1.2

1.2

0.6

0.25±0.05

200

1/16

1.6

1.6

0.8

0.25±0.05

200

3/32

2.4

2.4

1.2

0.25±0.05

200

1/8

3.2

3.2

1.6

0.25±0.05

100

3/16

4.8

4.8

2.4

0.25±0.05

100

1/4

6.4

6.4

3.2

0.30±0.05

100

3/8

9.5

9.5

4.8

0.30±0.05

50

1/2

12.7

12.7

6.4

0.30±0.05

50

3/4

19.1

19.1

9.5

0.42±0.05

50

1

25.4

25.4

12.7

0.50±0.05

50

1-1/2

38.1

38.1

19.1

0.50±0.05

50

Advantages

  1. Excellent wear, heat resistance.
  2. Good oil and chemical solvent resistance
  3. Excellent flame retardant
  4. High withstand to abrasion and sut through
  5. Shrink temperature: 175 degree C
  6. Shrink ratio: 2:1
  7. Fast shrinking
  8. Very soft and flexible
  9. Various sizes available, from 1.2mm to 38.1mm
  10. Excellent tensile strength
  11. Heat and color resistance
  12. Anti-aging
  13. Fast delivery time
  14. Free sample available
