Specifications
Brand Name :
Hanast
Model Number :
HN-6607AB
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
1kg
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P
Packaging Details :
25KG/barrel
Name :
Shore 00 Self-Healing Jelly Gel
Keyword :
electrical insulation silicone gel
Waterproof :
yes
Type :
ab gel silicone,2 parts
Application :
AC capacitors, negative ion generators, aquarium water pumps, ignition coils
Feature :
electrical insulation，low-viscosity，soft and clear
Color :
Clear
application :
junction box,pcb,load cell etc
mxi ratio :
1:1
Customzation :
Support
Description

Ultra-Soft Shore 00 Clear Silicone Gel For Electronics Low-Stress Cushioning, Anti-Vibration Jelly Encapsulation, Waterproofing And Conformal Coating For Delicate Components

Product Description of softness silicone gel:

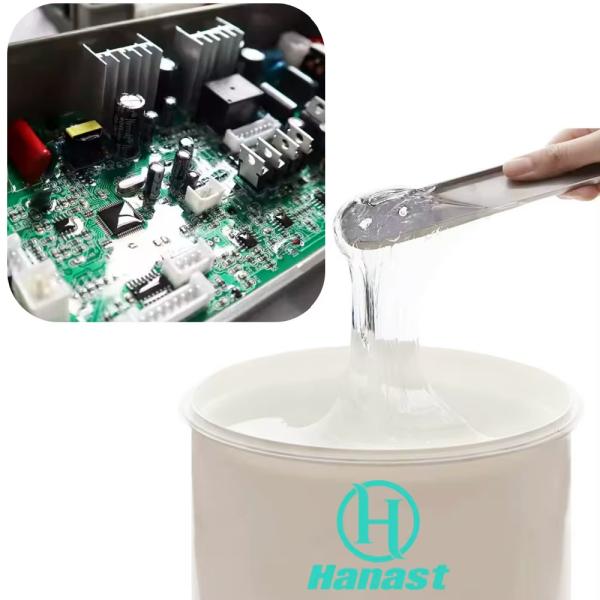

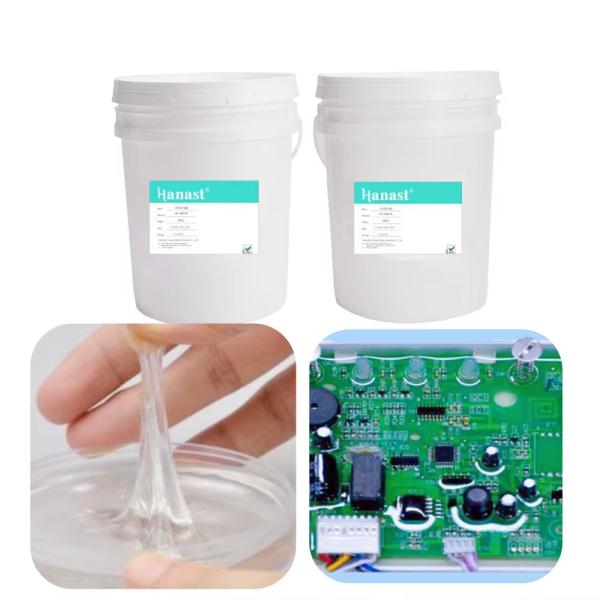

Silicone gel is a two-component, ultra-soft elastomeric material that cures at room temperature or under heat, forming a transparent, semi-solid, jelly-like substance with a Shore 00 hardness upon curing. Its unique molecular structure—characterized by a low cross-link density—imparts extremely low internal stress and exceptional stress-absorbing capabilities to the material, thereby providing precision electronic components with protective functions such as low-stress cushioning, shock and vibration damping, and resistance to water and moisture.

Ultra-Soft Shore 00 Clear Silicone Gel For Electronics Low-Stress Cushioning, Anti-Vibration Jelly Encapsulation, Waterproofing And Conformal Coating For Delicate Components

Product Features of softness silicone gel:

1. High transparency
2. Soft (also known as "jelly gel")
3. Low viscosity
4. Good flow properties
5. Low stress; repairable
6. Good shock resistance
7. Waterproof and moisture-proof

Ultra-Soft Shore 00 Clear Silicone Gel For Electronics Low-Stress Cushioning, Anti-Vibration Jelly Encapsulation, Waterproofing And Conformal Coating For Delicate Components

Product application of softness silicone gel:

Silicone gels are specifically designed to protect precision electronic components that are highly sensitive to mechanical stress, including—but not limited to—the following:

IC chips utilizing wire bonding, and COB modules

Precision sensors (MEMS, pressure sensors, accelerometers)

High-voltage components (where it is necessary to minimize the impact of stress on electrical clearance)

Circuit modules requiring probe testing or rework capability

Display drivers or optoelectronic devices requiring optical transparency

Ultra-Soft Shore 00 Clear Silicone Gel For Electronics Low-Stress Cushioning, Anti-Vibration Jelly Encapsulation, Waterproofing And Conformal Coating For Delicate Components

Physical Properties of softness silicone gel

Characteristics before curing
Component
Component A
Component B
Color
Transparent liquid
Transparent liquid
viscosity(cp s. 25℃)
800～2000
800～1800
Relative density(mpa•s)
1 ．0～1.12
0.98～1.02
The mixing ratio
A:B=1:1
Viscosity after mixing(cp s. 25℃)
800～1500
Operate Time (25℃)
2 h
Penetration (1/10mm)
200~ 400
Curing conditions (120℃)
20~30 mins
Cured properties
Hardness(Shore A, 24hr)
0～10
