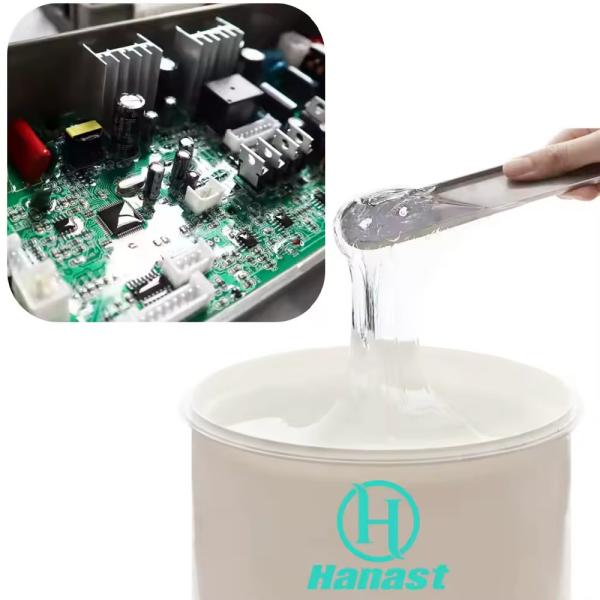

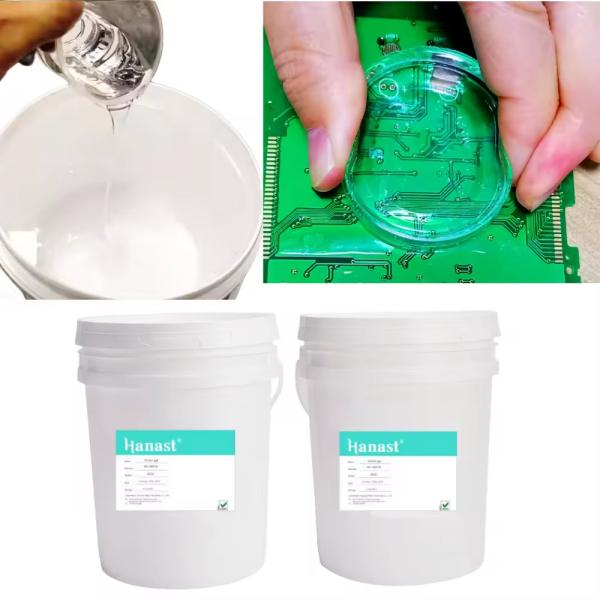

Junction Box Electrical Potting Liquid Silicone Gel Insulation Waterproof Igbt
Junction Box Electrical Potting Liquid Silicone Gel Insulation Waterproof Igbt
Specifications
Brand Name :
Hanast
Model Number :
HN-6607AB
Certification :
ROHS SGS
Place of Origin :
Guangdong,China
MOQ :
1kg
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
25KG/ Iron Drum
Feature :
Waterproof,soft,low-viscosity
Application :
Load cell,power module,PCB,circuit board
Advantage :
good shock absorption, moisture resistance
Sample :
1 kilogram at least
Keyword :
waterproof protective electronic potting adhesive
Viscosity after mixing（cp s. 25℃) :
800～1500
Hardness :
0～10
Relative density（mpa•s） :
A:1 ．0～1.12,B:0.98～1.02
Penetration (1/10mm) :
200 ~400
Color :
Clear
Description

Junction Box Circuit Board Softness Electrical Insulation Silicone Gel Waterproof 2 Part For PCB Load Cell Gel Silicone Igbt

Product description:

HN-6607AB is a very soft, low crosslinking density addition silicone rubber

Product Features:

1. Medium temperature curing, the curing time can be adjusted according to different temperatures;

2. It is low-viscosity silicone oil before curing and gel elastomer after curing.

Characteristics before curing
Component
Component A
Component B
Color
Transparent liquid
Transparent liquid
viscosity(cp s. 25℃)
800～2000
800～1800
Relative density(mpa•s)
1 ．0～1.12
0.98～1.02
The mixing ratio
A:B=1:1
Viscosity after mixing(cp s. 25℃)
800～1500
Operate Time (25℃)
2 h
Penetration (1/10mm)
200~ 400
Curing conditions (120℃)
20~30 mins
Cured properties
Hardness(Shore A, 24hr)
0～10

Junction Box Electrical Potting Liquid Silicone Gel Insulation Waterproof Igbt

Instructions:

1. Before mixing, component A needs to be properly stirred manually or mechanically, and component B should be fully shaken in a sealed state before use.

2. When it needs to be attached to the application material, please confirm whether it can be attached before use, and then apply it. 3. Before construction, please weigh and mix according to the weight ratio of A:B = 1:1, and stir thoroughly before applying glue.

Package:

This product is 40KG per group;

Component A is 20KG (in barrels), and Component B is 20KG (in barrels)
