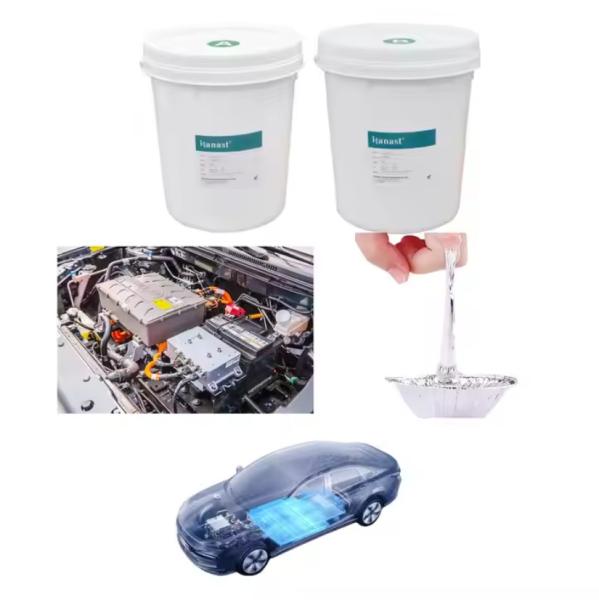

Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Low Viscosity Electronic Silicone Gel rubber Insulation Potting Automotive Electronics
Specifications
Brand Name :
Hanast
Model Number :
HN-6607A/B
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 kilogram
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-7days
Packaging Details :
25KG/ Iron Drum
Main Raw Material :
Silicone
Usage :
electronics industry
Classification :
Double Components Adhesives
Type :
Potting Silicone Gel
Features :
good shock absorption, moisture resistance
Description

Low Viscosity New Energy Automotive Electronics Waterproof Insulation Potting IGBT ECU Motor Battery Sensor Jelly Silicone Gel

Specification

Characteristics before curing
Component
Component A
Component B
Color
Transparent liquid
Transparent liquid
viscosity(cp s. 25℃)
800～2000
800～1800
Relative density(mpa•s)
1 ．0～1.12
0.98～1.02
The mixing ratio
A:B=1:1
Viscosity after mixing(cp s. 25℃)
800～1500
Operate Time (25℃)
2 h
Penetration (1/10mm)
200~ 400
Curing conditions (120℃)
20~30 mins
Cured properties
Hardness(Shore A, 24hr)
0～10

HN-6607A/B Two-Component Potting Silicone Gel is a very soft, low cross-linking density addition potting silicone gel. It is a low viscosity liquid before vulcanization.

After vulcanization, in addition to the general characteristics of addition potting silicone gel, it has good shock absorption, moisture resistance and sealing due to its soft nature. properties and excellent dielectric insulation properties over a wide range of temperature and humidity.
1.Good insulation
Good electrical and insulation properties, no corrosion to materials

2.Good sealing
After silicone gel potting, it has good sealing properties, does not expand or shrink, and does not damage electronic components.

3.Waterproof and moisture-proof
Improve the waterproof performance of the product and effectively improve the stability

4.Repairability
After curing, it is in a semi-solidified state. It effectively protects the product and is removable and repairable to reduce maintenance costs.
Product Features
1. Medium temperature curing, the curing time can be adjusted according to different temperatures;
2. It is low-viscosity silicone oil before curing and gel elastomer after curing.
Application scope
It is used for waterproof, moisture-proof and gas pollution-proof coating of high precision electronic appliances, IGBT modules,automotive electronics, smart water meters, sensors, etc., as well as for the pouring and potting of chest pads, silicone latex pads, shoulder pads, anti-slip pads, handicrafts, etc. Various solar street light optical lenses, sensors, and electronic modules provide excellent buffering and stress relief properties.
