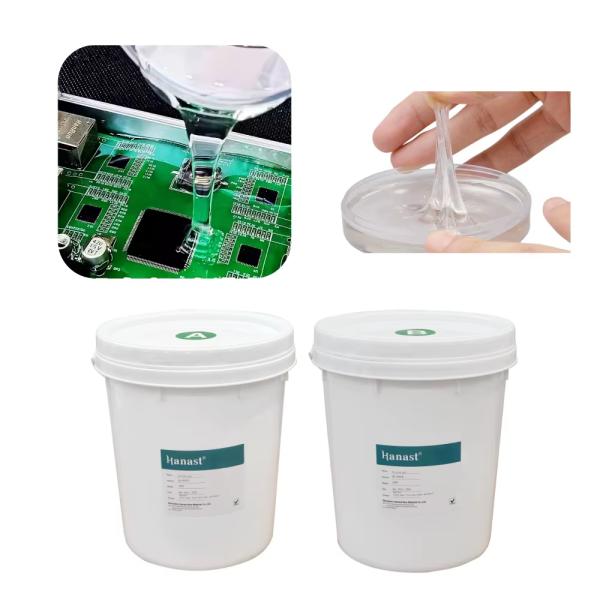

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
Specifications
Brand Name :
Hanast
Model Number :
HN-6607AB
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
1kg
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P
Packaging Details :
25KG/barrel
Name :
ab gel silicone
Keyword :
electrical insulation silicone gel
Waterproof :
yes
Type :
ab gel silicone,2 parts
Application :
AC capacitors, negative ion generators, aquarium water pumps, ignition coils
Feature :
electrical insulation，low-viscosity，soft and clear
Color :
Clear
application :
junction box,pcb,load cell etc
mxi ratio :
1:1
Customzation :
Support
Description

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Product Description of softness silicone gel:

Silicone gel is a polymeric material derived from a polysiloxane structure. It's typically supplied as a two-part (A/B) liquid system that, when mixed, cures at room temperature or under heat to form a soft, elastic gel. Its hardness is significantly lower than standard silicone rubber, and it has a jelly-like texture. It's characterized by exceptional flexibility and resilience, effectively absorbing external impact forces while maintaining stable performance over extended periods.

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Product Features of softness silicone gel:

1. Low viscosity, bubble-free
2. Appearance: clear liquid
3. Temperature Resistance: -60-200℃
4. Waterproof
5. Strong vibration resistance, low stress, and high impact resistance
6. Yellowing-resistant and UV-resistant
7. Highly flexible; becomes soft as jelly after curing etc

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Product application of softness silicone gel:

1. New Energy Vehicles: BMS and Battery Cell Protection
2. LED Packaging and Lighting Driver Power Supply
3. High-voltage power supply and communication module
4. Medical and Wearable Devices
5. Industrial and Military Controllers

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Physical Properties of softness silicone gel

Characteristics before curing
Component
Component A
Component B
Color
Transparent liquid
Transparent liquid
viscosity(cp s. 25℃)
800～2000
800～1800
Relative density(mpa•s)
1 ．0～1.12
0.98～1.02
The mixing ratio
A:B=1:1
Viscosity after mixing(cp s. 25℃)
800～1500
Operate Time (25℃)
2 h
Penetration (1/10mm)
200~ 400
Curing conditions (120℃)
20~30 mins
Cured properties
Hardness(Shore A, 24hr)
0～10

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel

Load Cell Gel Silicone Electrical Insulation Silicone Gel 1:1 10 Shore A Transparent Silicone Thermal Gel
