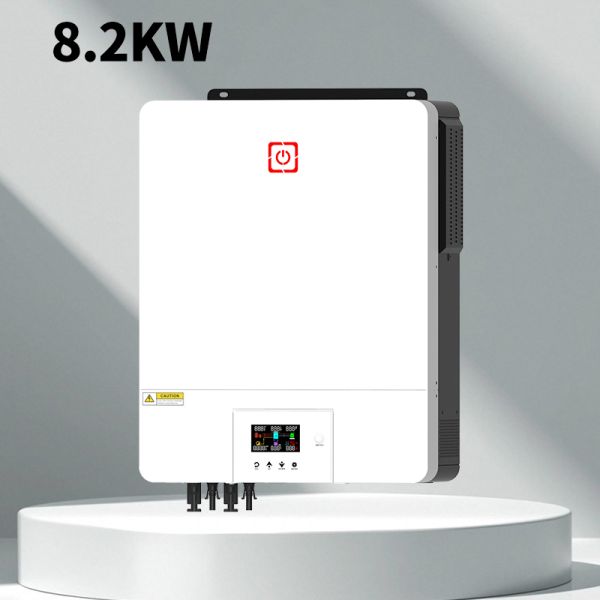

8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
8200W Solar System Inverter Hybrid Solar Inverter 450V DC Pure Sine Wave MPPT Inverter
Specifications
Brand Name :
shunxiang
Model Number :
FEC-82
Certification :
CE;ROSH;UN38.3;UL2743
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
8-10work days
Packaging Details :
Cardboard box/Wooden box
Phase :
1-phase
Maximum PV Input Power :
5400W+5400W
Rated Output Power :
8200W
Maximum Solar Charging Current :
160A
DC Voltage :
360/500VDC
Start-up Voltage/Initial Feeding Voltage :
90VDC/120VDC
MPPT Voltage Range :
90~450VDC
Nominal Output Voltage :
220/230/240VAC
H*W*D(mm) :
588*463*205
Gross Weight :
16.1kg
Description
Key Features
  • Pure sine wave solar inverter(on/off Grid)
  • Output power factor 1.0
  • WIFI&GPRS available for IOS and Android
  • Inverter can run without battery
  • One-key restoration to factory Settings
  • Built-in Lithium battery automatic activation
  • Built-in 160A MPPT solar charger(for 8.2kw,10.2kw)
  • Dual communication ports for Battery communication and Wifi communication
  • High PV input voltage range(90~500VDC)
  • Built-in anti-dust kit for harsh environment
  • Smart battery charge design to optimize battery life
  • Dual output
  • Dual PV input
  • Touch button
  • On Off Grid Work Mode
Technical Specifications
MODEL 8.2KW
Phase 1-phase
Maximum PV Input Power 5400W+5400W
Rated Output Power 8200W
Maximum Solar Charging Current 160A
GRID-TIE OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90~450VDC
Maximum Input Current 2/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 35.6A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 8200W
Maximum Main Load
Second Load Range 1640W~5740W
Maximum Load Cut Off Voltage 52VDC
Maximum Load Return Voltage 54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90~280VAC or 170~280VAC
Frequency Range 50±1Hz/60±1Hz
Maximum AC input Current 48.2A
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT Voltage Range 90~450VDC
Maximum Input Current 2/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Efficiency(DC to AC) 94%
BATTERY&CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charging Current 160A
Maximum AC Charging Current 140A
Maximum Solar+AC Charging Current 160A
HYBRID OPERATION
PVINPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90~450VDC
Maximum Input Current 2/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 35.6A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 48.2A
Maximum Charging Current 140A
GENERAL
PHYSICAL
Dimension,H*W*D(mm) 500*390*136
Cartoon Dimension,H*W*D(mm) 588*463*205
Net Weight(kgs) 14.5
Gross Weight(kgs) 16.1
INTERACE
Communication Port RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non~condensing)
Operating Temperature -10℃~50℃
STANDARD
Compliance Safety CE
