Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys
Specifications
Brand Name :
DOOWIN Marine
Model Number :
SAPB
Certification :
ISO, BV, ABS, LR
Place of Origin :
Shandong, China
MOQ :
1
Price :
USD500- USD20,000
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000PCS/ WEEK
Delivery Time :
Upon QTY
Packaging Details :
Pallets or plywood box
Material :
Foam core with polyethylene skin
Buoyancy :
1ton~30ton
Color :
Yellow, Orange, or customized color
Steelwork :
Anchor cross, pad eye, swivals, ect
Application :
Mooring
Description

Offshore And Remote Mooring High Strength Foam Core Suitcase Anchor Pendant Buoys

Suitcase anchor pendant buoys are manufactured from resilient closed-cell unsinkable foam core around the inner central steelwork covered in polyurethane elastomer coating.

The suitcase anchor pendant buoy has a rectangular shape with a lay-flat surface. This shape ensures the buoys can be safe storage and transported economically. The inner central steel frame has enough support branches to ensure the foam core cannot be moved.

The resilient closed-cell polyethylene foam core guarantees self-fendering and is unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultra violet rays degradation. For the extreme operating environment. The reinforced nylon filament ensures polyurethane elastomer protective coating has higher tear strength.

Features

  • Self-fendering (High impact absorption capacity)
  • PU Protective Outer Skin (Reinforced urethane elastomer skin)
  • Inner PE/EVA Foam (Unskinable closed cell rigid foam core)
  • Upper End Fitting (Various end fitting options available)
  • Internal Steel Core (For better support and balance)
  • Reinforcement Layer (Reinforced nylon filament ensures polyurethane elastomer protective coating has higher tear strength)


Specification

The table below shows a range of standard sizes only. Other sizes or specific buoyancy/dimensions required can be evaluated on application.

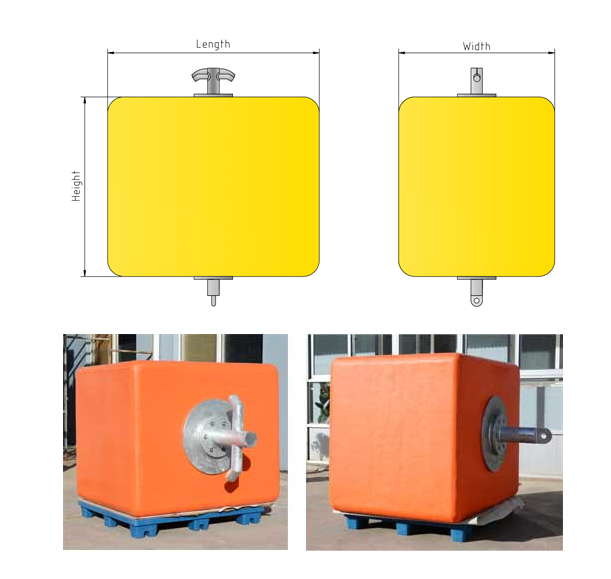

A variety of steelwork options, e.g. anchor cross, pad eye, swivels, etc. (see diagram) are available.
Standard colors are orange or yellow but other colors are available on request. Further options include reflective tape, and navigation lights.

Type Length Width Height Weight Net Buoyancy Net Buoyancy
(mm) (mm) (mm) (kg) (kg) (lbs)
SAPB1 1250 1100 1100 260 1000 2207
SAPB2 1800 1200 1500 500 2000 4413
SAPB3 1850 1300 1600 570 3000 6620
SAPB4 2000 1400 1800 750 4000 8826
SAPB5 2000 1500 2000 900 5000 11033
SAPB6 2000 1750 2150 1200 6000 13239
SAPB8 3000 1950 2200 1600 8000 17652
SAPB10 2400 1900 2700 1950 10000 22065
SAPB12 2400 2100 2900 2300 12000 26478
SAPB14 3000 2000 2900 2700 14000 30891
SAPB16 3350 2000 3000 3000 16000 35304
SAPB18 3350 2500 3450 3400 18000 39717
SAPB20 3250 2375 3450 3600 20000 44130
SAPB30 3250 2450 4850 4600 30000 66195
