Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
Customized
Certification :
SGS, BV, CCS, ABS, LR, BV.
Place of Origin :
China
MOQ :
1pc
Price :
USD$ 200~2990
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Product Name :
Offshore mooring buoys
Product Color :
Yellow, orange, or customized
Inner core :
Closed cell PE foam core
Skin :
Polyurethane Elastomer
Product Size :
Varies depending on type and purpose
End Fittings: :
1-1/2” Swivel (Hot Dipped Galvanized)
Product Lifespan :
7-10 years
Product Weight :
Varies depending on type and purpose
Warranty :
2 years
Description

Customized Surface Heavy Duty Large PE / EVA Foam Buoy Offshore Mooring Buoys

Offshore Mooring Buoys
Offshore mooring buoys are in service for inland waterways and offshore instead of traditional steel mooring buoys.

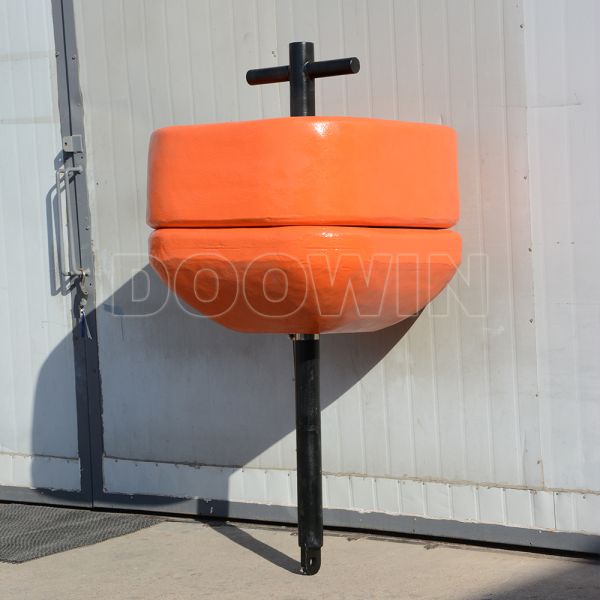

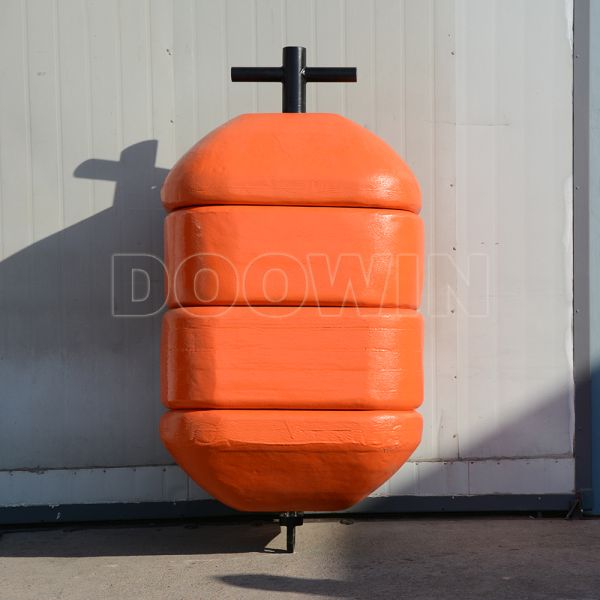

The cylindrical offshore mooring buoy is one kind of representative mooring buoys. The cylindrical mooring buoys can be supplied in chain-through type, or equipped with pad-eye, crucifix, quick release hook, and maker or navigation equipment. Other variety end fittings are available to suit every case application. All end fittings are made of galvanized or painted steel to resist seawater corrosion.

Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified

Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified

Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified

  1. Upper end fittings (various options available)
  2. Resilient out foam (available upon request)
  3. Rigid inner foam
  4. Internal steel core
  5. Load distribution plates
  6. Lower end fitting (mooring eye shown)
  7. Reinforced urethane elastomer skin

This drawing shows a typical specification only. For the specific design of each buoy, please feel free to contact us.



Cylindrical Mooring Buoys Specification
The below table shows the most commonly requested size only. The standard color is yellow and orange

Custom Offshore Mooring Buoys With PE Foam Core / Polyurethane Skin CCS Certified


Type

Height

(mm)

Diameter

(mm)

Overall Height

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

CMB1

700

1500

1500

161

1000

2207

CMB3

1100

2000

2200

544

3000

6620

CMB5

1500

2500

2500

1104

5000

11033

CMB8

1500

2500

3100

1698

8000

17652

CMB10

1500

2500

3300

1924

10000

22065

CMB15

2000

3000

3500

2886

15000

33098

CMB20

2000

3000

4000

4021

20000

44131

CMB25

2000

3000

4000

5027

25000

55163

CMB30

3000

4000

4200

6650

30000

66196


SM Mooring Buoys

The mooring buoys can be installed with various fittings on the top. And the mooring buoys can be designed to meet different requests. It has the same design as common mooring buoys.

The large mooring tube with 82.5mm ID will accept mooring chain of up to 20mm in diameter. The mooring tube is not molded into the buoy but slides into a tubular section that runs down the center of the buoy enabling the tube to be replaced at any stage during the product’s service life.

Customized size are available upon request
