Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
BMBH 1-20 ,BMBC1-25
Certification :
SGS, BV
Place of Origin :
China
MOQ :
1pc
Price :
USD$ 1000 - 6900
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Commercial Mooring Buoys
Material :
Closed Cell Foam Core
Shape :
Spherical,or customized
Corrosion Resistance :
High
Weather Resistance :
Excellent
Skin :
Polyurethane Elastomer
Description

Commercial Barrel Mooring Buoys Chain Throughtype Marine PE Floats

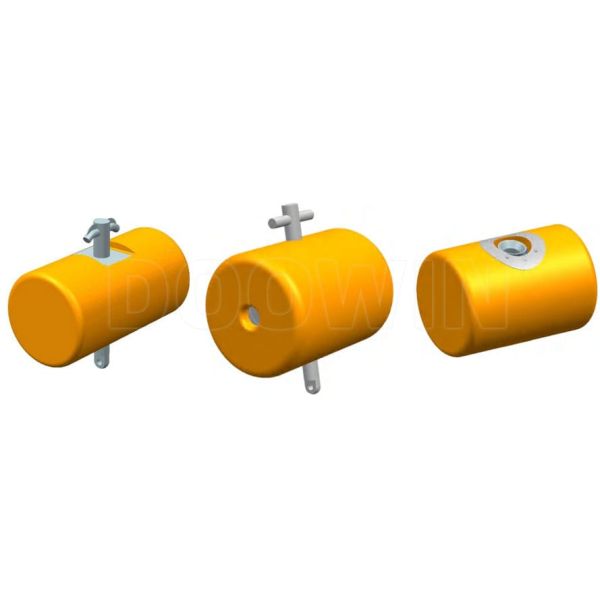

Commercial barrel mooring buoy is one kind of representative mooring buoy. This commercial mooring buoy has a barrel shape with chain through, handling crucifix, modular type.

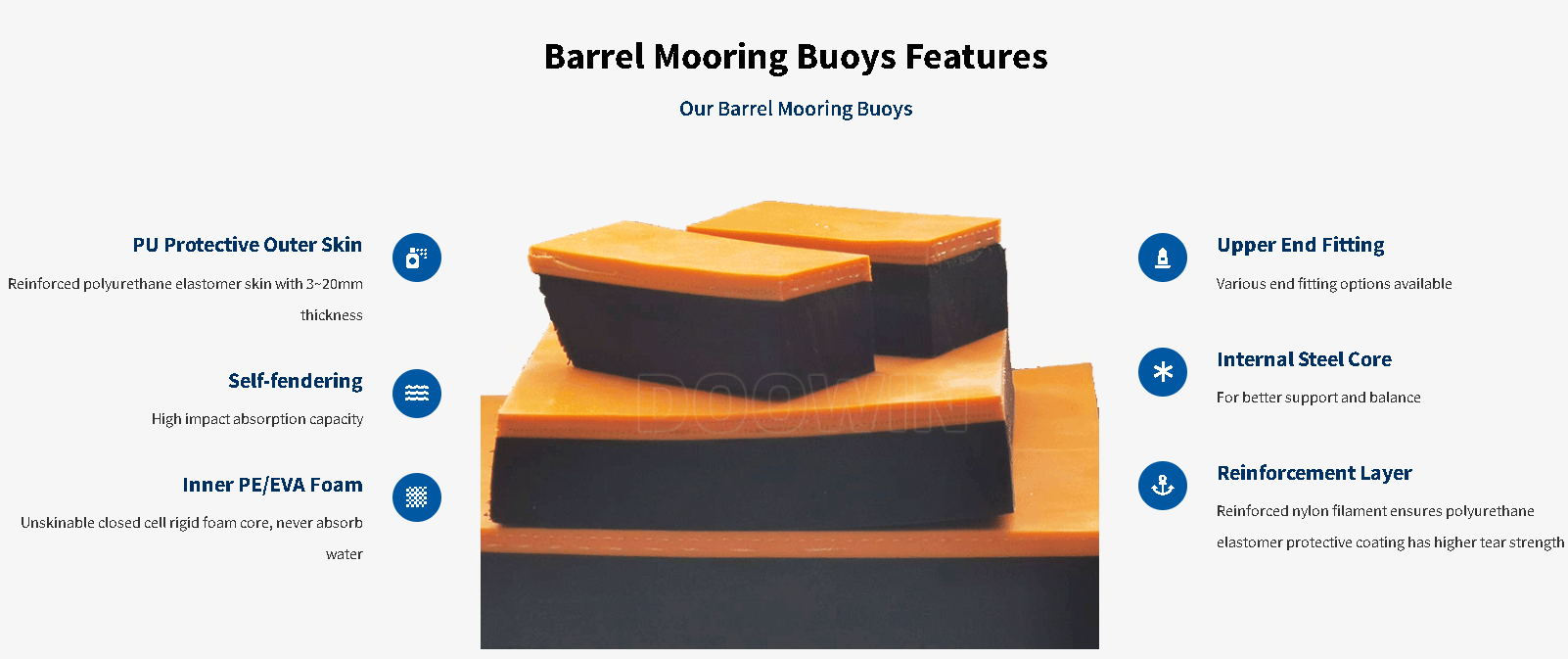

The steelwork construction through the buoy’s middle vertically. It can be supplied with handling crucifix an chain-through design. The barrel mooring buoys are constructed by resilient closed cell polyethylene/EVA foam around the inner central steelwork, covered by polyurethane (PU) other skin. The resilient closed cell polyethylene/EVA foam core guarantees self-fendering and unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultraviolet ray degradation. Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats

For extreme service environments, the polyurethane elastomer skin can be reinforced by nylon to protective coating has higher tear strength, making the buoy long-lasting and virtually maintenance-free.

Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats


Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats


Commercial Barrel Mooring Buoys Specification
We make several kinds of barrel mooring buoys with below-rated buoyancy. Commercial Mooring Barrel Buoys – Chain Through, Handling Crucifix & Modula

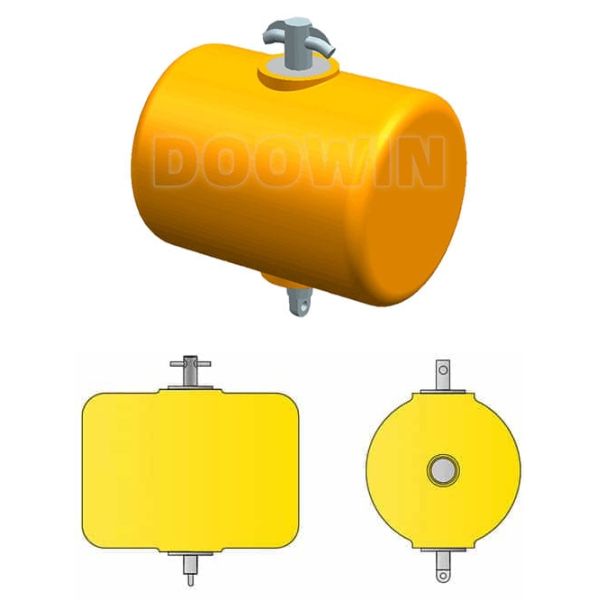

Barrel Mooring Buoy with Handling Crucifix

Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats

Type

Diameter

(mm)

Length

(mm)

Overall Height

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

BMBH-1

1,050

1,800

1,950

400

1,000

2,205

BMBH-2

1,300

2,080

2,200

540

2,000

4,409

BMBH-3

1,540

2,080

2,400

650

3,000

6,614

BMBH-4

1,500

2,900

2,350

880

4,000

8,818

BMBH-5

1,650

2,900

2,500

1150

5,000

11,023

BMBH-6

1,800

2,900

2,650

1250

6,000

13,228

BMBH-8

1,900

3,600

3,260

2000

8,000

17,637

BMBH-10

2,100

3,600

3,360

2200

10,000

22,046

BMBH-12

2,200

3,850

3,460

2300

12,000

26,455

BMBH-15

2,400

4,100

3,660

2550

15,000

33,069

BMBH-20

2,700

4,150

3,960

3200

20,000

44,092



Barrel Mooring Buoy with Chain Through


Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats

Type

Diameter

(mm)

Length

(mm)

Overall Height

(mm)

Weight

(kg)

Net Buoyancy

(kg)

Net Buoyancy

(lbs)

BMBC-06

880

1,240

1,175

110

600

1,320

BMBC-1

1,050

1,500

1,050

225

1,000

2,200

BMBC-2

1,250

2,100

1,250

415

2,000

4,400

BMBC-3

1,520

2,100

1,520

575

3,000

6,600

BMBC-4

1,520

2,900

1,520

1,100

4,000

8,800

BMBC-5

1,650

2,900

1,650

1,100

5,000

11,000

BMBC-6

1,820

2,900

1,820

1,200

6,000

13,200

BMBC-8

1,970

3,150

1,970

1,400

8,000

17,600

BMBC-10

2,100

3,500

2,100

1,700

10,000

22,000

BMBC-15

2,400

4,100

2,400

2,550

15,000

33,000

BMBC-20

2,700

4,150

2,700

3,200

20,000

44,000

BMBC-25

2,750

5,900

2,750

4,700

25,000

55,000



Other Design Barrel Mooring Buoy
