Specifications
Brand Name :
DOOWIN MARINE
Model Number :
JMB
Certification :
BV, CCS, LR, DNV
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Name :
Offshore Mooring Buoys
Buoy Material :
Closed-cell Foam + PU Skin
Buoy Buoyancy :
75kg ~ 1000kg
Buoy Color :
Yellow, Orange, Customized Color
Customized Size :
Availiable
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description
DOOWIN MARINE supplies a range of mooring buoys with reserve buoyancy between 75kg and 1000kg. They are a heavy-duty offshore mooring buoy with a structural tie-bar offering the user a product with unprecedented strength and reliability due to its fully sealed design.
The mooring foam buoys and tie-bars are manufactured in China allowing a quick turnaround time and high level of quality control. DOOWIN MARINE mooring buoys are foam-filled with marine-grade 100% closed-cell foam to ensure they remain buoyant even if the hull is damaged. The polyurethane spraying technology ensures that the buoys have a much higher strength and durability than the traditional rota-moulding process.

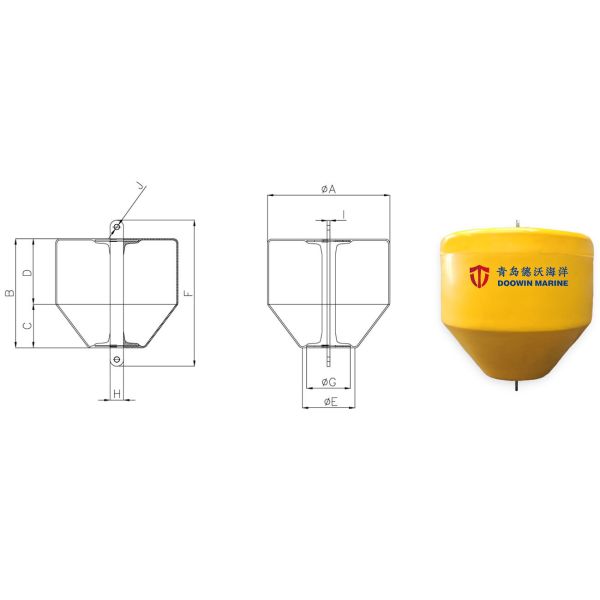

Mooring Buoys Construction
Upper end fittings (various options available)
Resilient out foam (available upon request)
Internal steel core
Load distribution plates
Lower end fitting (mooring eye shown)
Nylon reinforced urethane elastomer skin

Heavy Duty Spherical Offshore Mooring Buoys 75kg -1000kg Buoyancy
Size
(Reserve Buoyancy)		 Tie Bar
WLL		 A B c D E F G H 1 J Shackle to
Suit
Kg Tonnes Dimensions(mm)
75 2.5 580 518 208 310 260 670 250 50 10 20 3.25T
75 HD 20 580 518 208 310 260 775 250 130 30 45 13.5T
150 10 740 660 265 395 390 850 280 100 20 32 9.5T
250 10 860 770 265 505 430 980 320 100 20 34 9.5T
500 20 1080 940 350 590 520 1285 400 150 25 39 13.5T
1000 35 1400 1250 500 750 640 1670 500 155 40 58 35T
