Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
HPF-2000x6000
Certification :
CCS, BV, LR
Place of Origin :
China
Name :
Submarine Fenders
Fender's Valve :
Water and Air Ball Valves
Hydro Pneumatic Fenders Size :
D2000 x L6000mm
Production Standard :
ISO 17357
Energy Absorption :
157 kNm
Reaction Force :
587 kN
Safety Valves :
Option
MOQ :
1pc
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description

Yokohama Type Hydropneumatic Submarine Fenders 2000x6000

Advanced Hydropneumatic Fender Systems for Marine Applications‌ Introduction to the Technology‌
Hydropneumatic fenders represent an innovative adaptation of traditional pneumatic fender systems, specifically engineered to address the unique challenges of submarine operations. These specialized marine cushioning devices utilize a carefully balanced combination of water and air within their containment structure, achieving optimal performance characteristics for submerged applications.

Core Design Features‌
The system incorporates several distinctive engineering elements:
• Dual-phase composition with adjustable water/air mixture ratios
• Precision counterweight mechanism for vertical orientation maintenance
• Customizable pressure parameters for different operational requirements
• Specialized installation protocols for underwater deployment

Performance Specifications‌
Key performance attributes include:

Enhanced submerged contact surface protection
Minimized hull pressure impact
Dynamic draft adjustment capabilities
Flexible positioning options

Industrial Applications‌
This technology serves critical functions across multiple marine sectors:

Submarine docking infrastructure
Specialized ferry terminal operations
Offshore oil platform protection systems

Yokohama Type Hydropneumatic Submarine Fenders Specification

Model Air Filled (No Water) Partially Water Filled (65:35)
Energy (kNm) Reaction (kN) Water:Air Energy (kNm) Reaction (kN)
HPF 1700x7200 566 1774 0:100 135 599
HPF 2000x6000 653 1731 0:100 157 587
HPF 2500x5500 937 1996 0:100 225 673
HPF 3300x6500 1932 3106 0:100 622 1222
HPF 3300x10500 3151 5067 0:100 595 1250

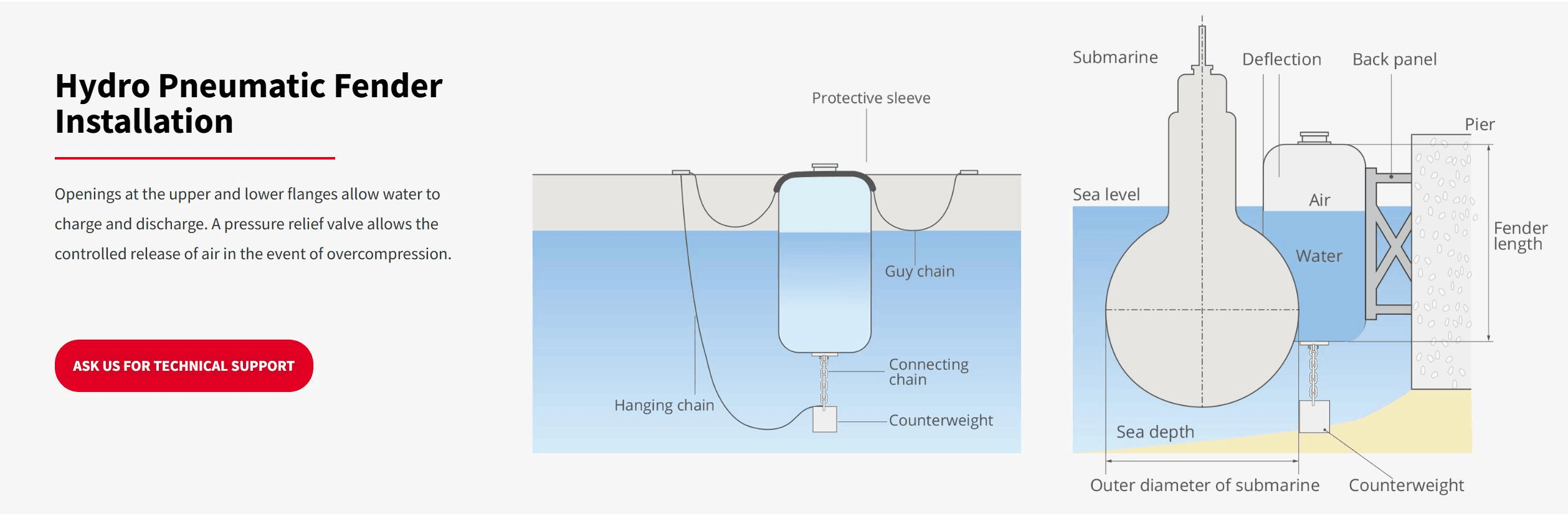

Yokohama Type Hydropneumatic Submarine Fenders Installation

Yokohama Type Hydropneumatic Submarine Fenders 2000x6000 Easy Operation
