Specifications
Brand Name :
DOOWIN MARINE
Model Number :
HPF
Certification :
CCS, BV, LR
Place of Origin :
China
MOQ :
1pc
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Fender Type :
Hydro-Pneumatic Fenders
Fender Application :
Submarine Fenders
Water : Air :
65:35
Accessories :
Counterweight
Description
Hydro-pneumatic Fenders make contact with vessels as submarines below the water line. Hydro-pneumatic fenders can also be used for vessel-to-vessel. Fenders are partially filled with water and ballasted to float vertically. Performance can be tuned by changing the water-to-air ratio and initial pressure.
The hydro-pneumatic fender is customized for each type or class of submarine, depending on its water-air ratio, hull shape, berthing type, energy absorption, and jetty design. Therefore, it is strongly advised that a detailed study be carried out for each case.

Features‌
‌Robust Construction‌: Puncture-resistant materials for harsh environments
‌Modular Installation‌: Upper/lower flange openings for water cycling
‌Fail-Safe Design‌: Pressure relief valve prevents overcompression
‌Applications‌
‌Military‌: Naval submarines, semi-submersible platforms
‌Commercial‌: High-speed ferries, offshore rigs
Specification of Hydro Pneumatic Fenders
Model Air filled (no water) Partially water filled

Water: Air Energy (kNm) Reaction (kN) Water: Air Energy (kNm) Reaction (kN)
HPF 1700x7200 0:100 566 1774 65:35 135 599
HPF 2000x6000 0:100 653 1731 65:35 157 587
HPF 2500x5500 0:100 937 1996 65:35 225 673
HPF 3300x6500 0:100 1932 3106 65:35 622 1222
HPF 3300x10500 0:100 3151 5067 65:35 595 1250
The factors as vessel hull shape, water to air ratio, gas mixture (ie. N2) as well as the initial pressure influ the performances of Hydro Pneumatic Fenders. Performances are given for an initial pressure of 7.1 psi and are indicative only.

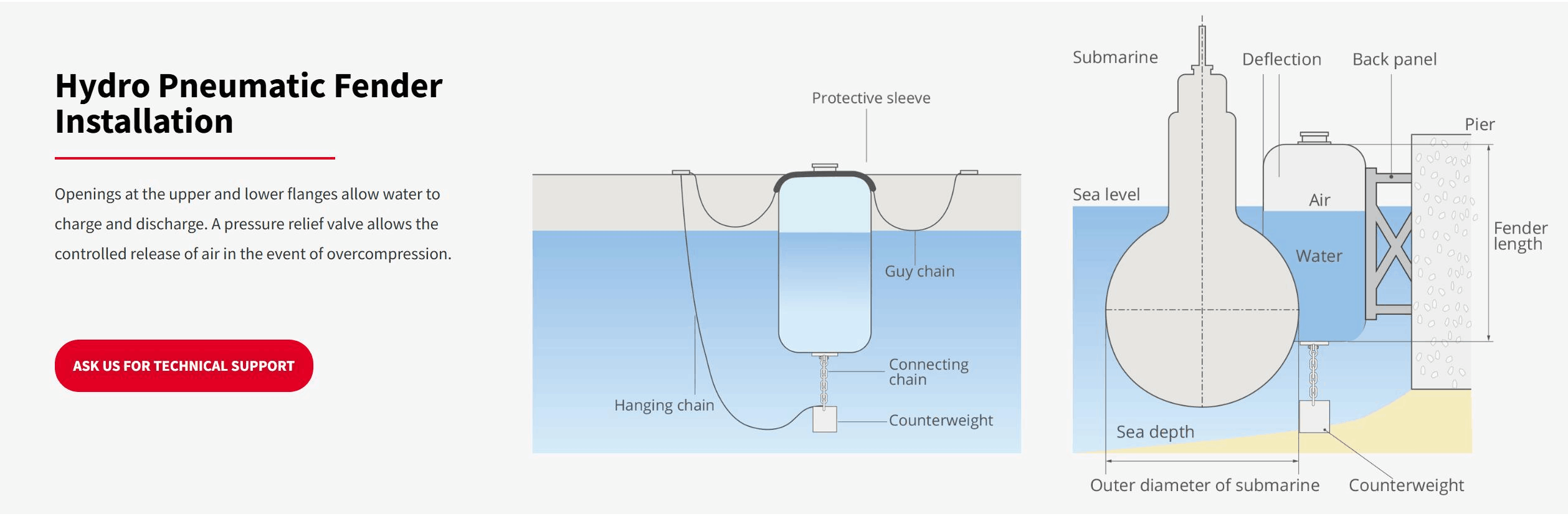

Installation of Hydro-Pneumatic Fenders
Hydro-Pneumatic Fenders with 65:35 Water-to-Air Ratio for Submarine
Openings at the upper and lower flanges allow water to charge and discharge. A pressure relief valve allows the controlled release of air in the event of overcompression.
