Specifications
Brand Name :
DOOWIN MARINE
Model Number :
HPF-2500x5500
Certification :
CCS, LR, BV
Place of Origin :
China
Hydro Pneumatic Fenders Size :
Diameter 2500 x Length 5500
Production Standard :
ISO 17357
Energy Absorption :
225 kNm
Reaction Force :
673 kN
Fender Cover :
Can install the chain and tire net
Safety Valve :
Installed Safety Valve
Name :
Hydro Pneumatic Fenders
MOQ :
1pc
Packaging Details :
Pallet or Plywooden Box
Delivery Time :
2~3 weeks
Supply Ability :
10pcs/per week
Description

Submarine Yokohama Type Floating Hydro Pneumatic Rubber Fenders with 2500x5500mm

Hydropneumatic fenders represent an advanced adaptation of conventional pneumatic fender technology, specifically engineered to meet the unique requirements of submarine operations. These specialized marine cushioning devices incorporate a carefully balanced combination of water and air within their structure, complemented by an integrated counterweight system that maintains optimal vertical positioning during operation.

Hydro Pneumatic Rubber Fenders Features

  • Submerged contact area
  • Low hull pressure
  • Adjustable draft
  • Movable

Hydropneumatic Fender Applications
Submarine Jetties
Certain Ferry Types
Oil Rigs

Hydro Pneumatic Fenders End Fittings

Yokohama Type Floating Hydro Pneumatic Fenders 2500x5500mm ISO 17357

Specification Hydro Pneumatic Rubber Fenders For Submarine

Model Air Filled (No Water) Partially Water Filled (65:35)
Energy (kNm) Reaction (kN) Water:Air Energy (kNm) Reaction (kN)
HPF 1700x7200 566 1774 0:100 135 599
HPF 2000x6000 653 1731 0:100 157 587
HPF 2500x5500 937 1996 0:100 225 673
HPF 3300x6500 1932 3106 0:100 622 1222
HPF 3300x10500 3151 5067 0:100 595 1250

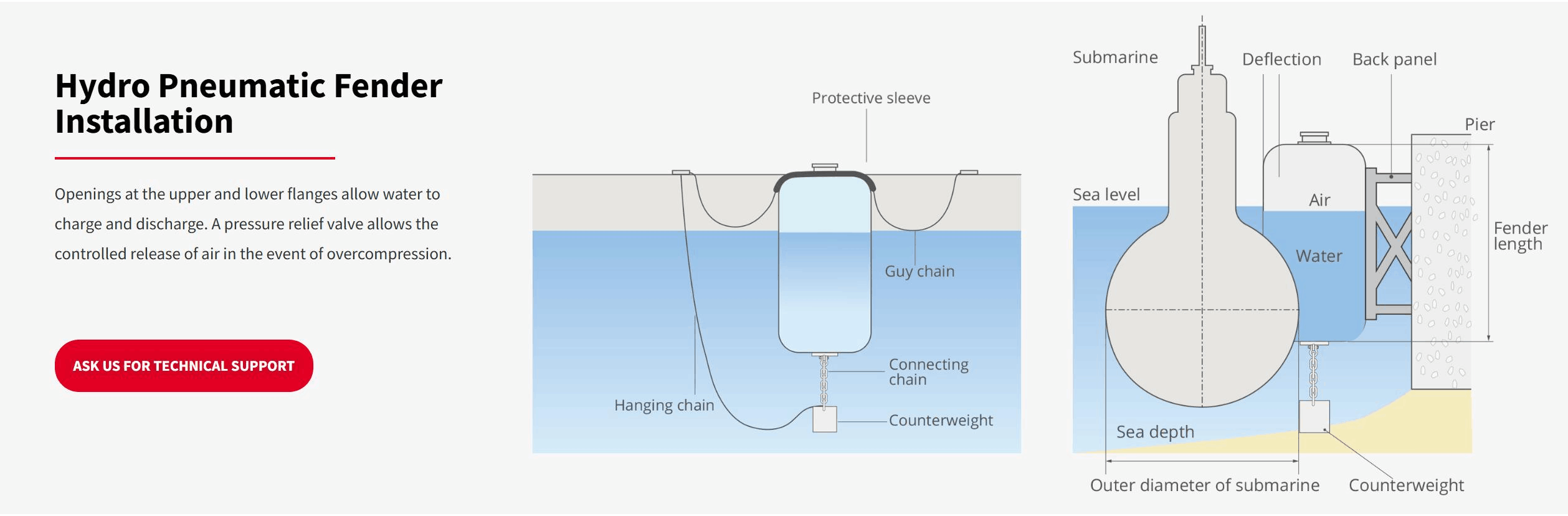

Hydro Pneumatic Rubber Fenders Installation
Yokohama Type Floating Hydro Pneumatic Fenders 2500x5500mm ISO 17357
