Vertically used Hydro Pneumatic Fenders to Protect the Submarine

Hydro-pneumatic fenders are specialized marine buffering systems predominantly used for the berthing of submarines and vessels characterized by low freeboard and high draft. These design features often necessitate fender contact below the waterline, requiring solutions that can withstand submerged operational conditions.

Hydro-pneumatic fenders are engineered and fabricated to exceed the structural integrity of standard pneumatic fenders, addressing elevated pressure demands inherent to such applications. The fender construction incorporates a partial water-filling process, followed by air pressurization and ballasting to maintain stability at the designated draft line. This configuration ensures optimal performance in underwater environments, where the water volume within the fender directly correlates with reaction force, energy absorption capacity, and minimum endurable pressure thresholds.

Key Advantages of Hydro-Pneumatic Fenders

High Energy Absorption: Efficient dissipation of kinetic energy during berthing impacts.
Low Reaction Force: Minimized structural stress on both vessel and dock infrastructure.
Reduced Maintenance: Durable materials and design extend service life.
Enhanced Air Retention: Advanced sealing mechanisms prevent pressure loss over time.
Customizable Design: Tailored dimensions and performance parameters to meet specific operational requirements.
Submerged Contact Interface: Designed for reliable performance below the waterline.
Minimal Hull Pressure Distribution: Prevents damage to sensitive vessel coatings, including acoustic tiles.
Variable Draft Adaptability: Adjustable ballasting systems accommodate fluctuating load conditions.

Primary Applications of Hydro-Pneumatic Fenders

Submarines: Critical for stealth operations requiring non-intrusive berthing solutions.
High-Speed Ferries (Select Models) : Optimized for vessels with dynamic loading profiles.
Semi-Submersible Oil Rigs: Stabilization during offshore docking procedures.

Technical Context
The hydro-pneumatic principle combines hydraulic (water) and pneumatic (air) systems to achieve controlled compression, as evidenced in modular suspension technologies where fluid-air interactions isolate vibrations.

Similar fractional modeling approaches validate the nonlinear stiffness characteristics of hydro-pneumatic components, ensuring predictable performance under variable loads.

These principles are mirrored in HPNE fenders, where water-air volume ratios dictate energy absorption efficiency

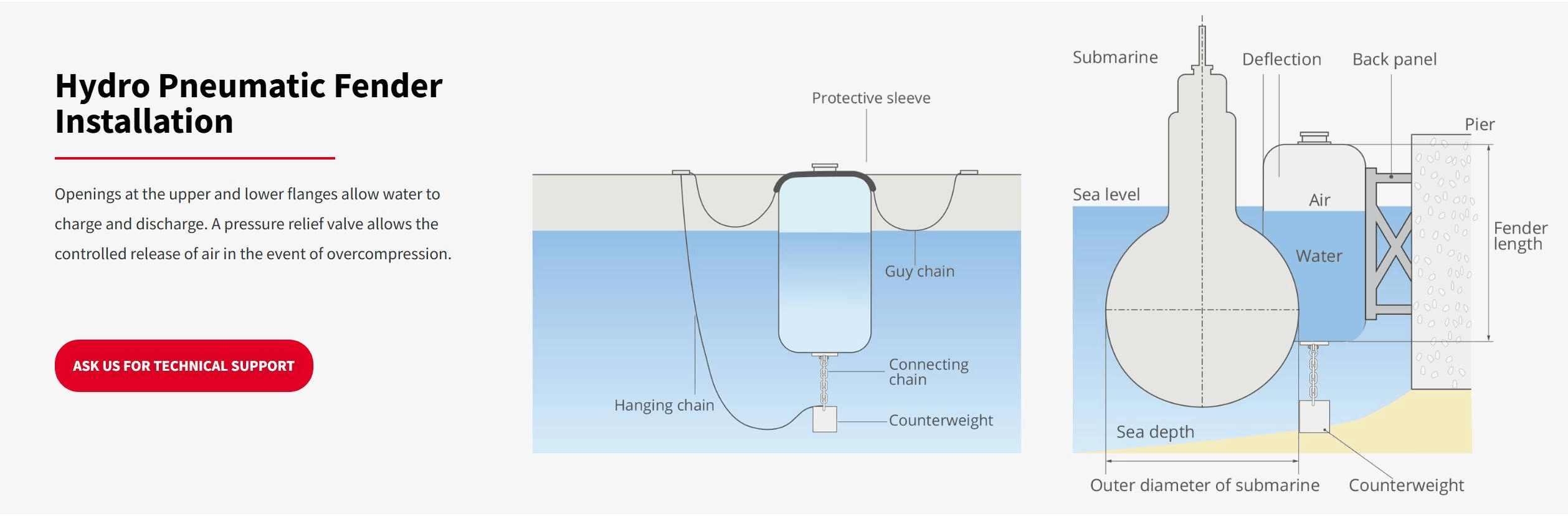

Hydro Pneumatic Rubber Fenders Installation
