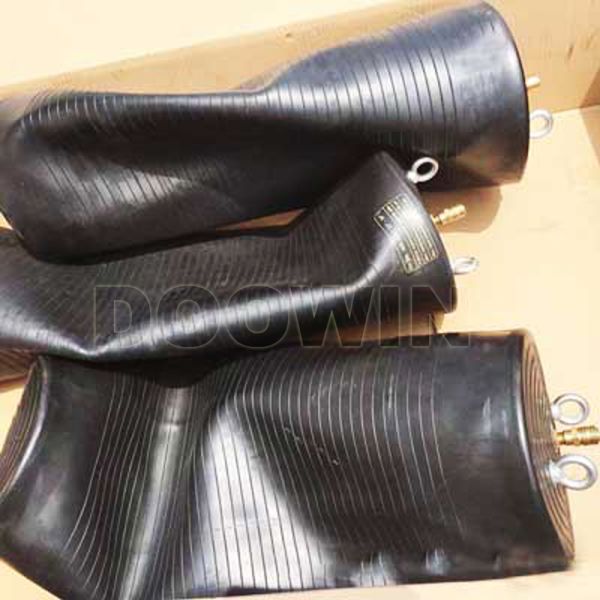

Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
Multi-size Pipe Stopper
Certification :
SGS, BV, CCS, ABS, LR, BV.
Place of Origin :
China
MOQ :
1pc
Price :
$USD 159 - 799
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Municipal Blocking Plugs
Diameter :
0.3~2.5m, or customized diameter
Length :
0.8~4.8m, or customized length
Working Pressure :
0.1~0.25Mpa
Accessories :
Swivel, pressure gauge, quick connector, adaptor
Water Depth :
0~10m, or customzied
Warranty :
2 Years
Certificate :
Manufacturer Certificate, BV/ABS/LR/CCS Certificate
Description
Multi-size Municipal Blocking Plugs Natural Rubber Inflatable Pipe Stopper
Commercial series inflatable pipe plugs are constructed with high-quality natural rubber, NBR, neoprene rubber, or other durable materials, reinforced with nylon layers for enhanced resistance to fuel, petrochemicals, and other caustic chemicals. Each plug comes equipped with rigging hardware, inflation ports, and a pressure relief valve.
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
These multi-size flow stoppers can accommodate a range of pipe diameters, making them versatile for various applications. Their lightweight design ensures easy installation and quick removal, ideal for commercial and light industrial work. When inflated with air or inert gas, they expand to completely block pipes for maintenance, construction, or other projects.
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
Specification of Pipe Plug
Model Pipe Diameter (mm) Air Pressure (MPA) Diameter (mm) Length (mm) Weight (kg)
DN150-300 150-300 0.2 135 500 2.5
DN200-400 200-400 0.2 180 600 4
DN200-500 200-500 0.2 180 750 5
DN300-600 300-600 0.15 280 750 10
DN400-800 400-800 0.15 380 900 18
DN500-1000 500-1000 0.15 460 1050 25
Inflatable Pipe Plugs Features
Doowin Marine uses the most durable materials and rigorous testing to ensure the safety and longevity of our plugs. Our inflatable pipe plugs offer these key features and benefits:
Municipal Series Blocking Pipe Plugs are Lightweight and Durable
  • Suitable for commercial, municipal, large diameter, or high-pressure pipes and pipe systems
  • Constructed with high-quality rubber and synthetic-tire-cord for lightweight toughness
  • Flexible design simplifies installations in difficult-to-access locations
  • Reinforced with synthetic-tire-cord for extra durability
  • Tested at higher pressures than working pressure for safety assurance
  • Sturdy products designed for tough jobs in demanding environments
  • Complete set of accessories included for immediate use
  • Adaptable to almost any pipe configuration
  • Compact deflated size enables fast, easy, and safe insertion and operation
Multi Size Municipal Blocking Plugs , Natural Rubber Inflatable Pipe Stopper
