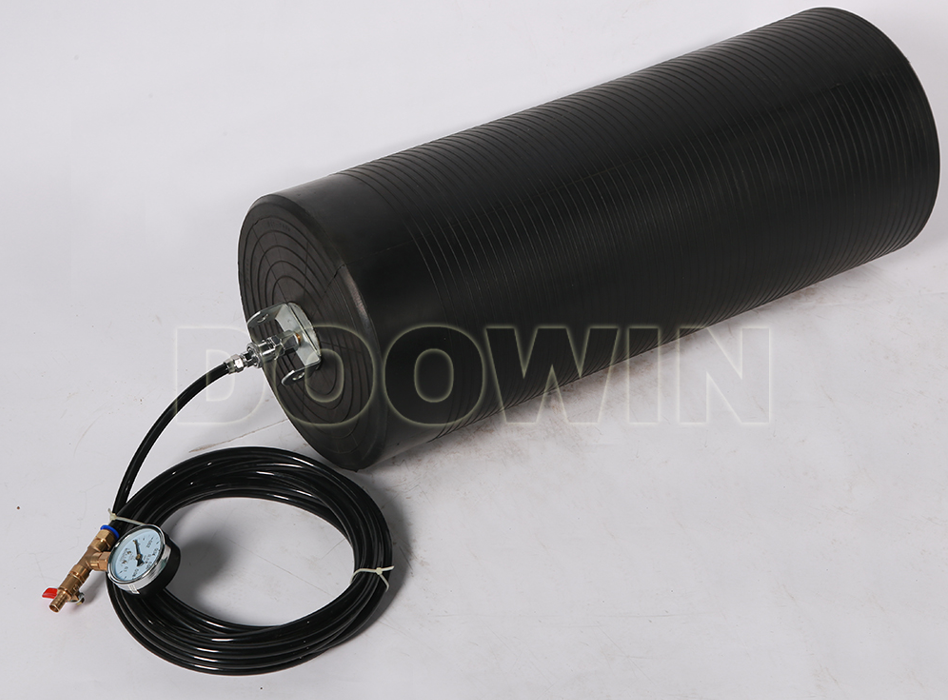

0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
Pipe plug
Certification :
SGS, BV, CCS, ABS, LR, BV.
Place of Origin :
China
MOQ :
1pc
Price :
$USD 159 - 799
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Rubber Pipe Plug
Diameter :
0.3~2.5m, or customized diameter
Length :
0.8m-4.8m, or customized length
Working Pressure :
0.1~0.25Mpa
Accessories :
Swivel, pressure gauge, quick connector, adaptor
Water Depth :
0~10m, or customzied
Warranty :
2 Years
Certificate :
Manufacturer Certificate, BV/ABS/LR/CCS Certificate
Description

Multi-size Municipal Blocking Plugs Natural Rubber Inflatable Pipe Stopper


Commercial series inflatable pipe plugs can be built up with high-quality natural rubber, NBR, neoprene rubber, or other materials. Nylon layers were used to reinforce it. This ensures our inflatable pipe stoppers are resistant to fuel, petrochemicals, and other caustic chemicals. Each inflatable pipe plug is equipped with rigging hardware, inflation ports, and a pressure relief valve.

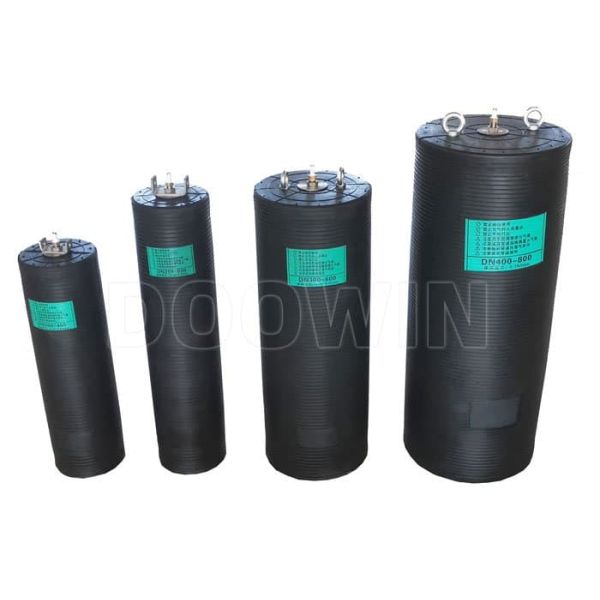

0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use

And, inflatable pipe plugs are multi-size flow stoppers. Each flow stopper can be used to close off a range of pipe diameters. The inflatable pipe plugs are easy to install and even more importantly easy and quick to remove because of their lightweight.

Commercial series pipe stoppers are lightweight plugs designed for commercial and light industrial work. Their small deflated size makes insertion and operations fast, easy, and safe. Filling the plugs with air or inert gas lets them expand to completely block pipes for maintenance, construction, or other projects. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. All commercial plugs use standard valves for easy inflation and deflating.

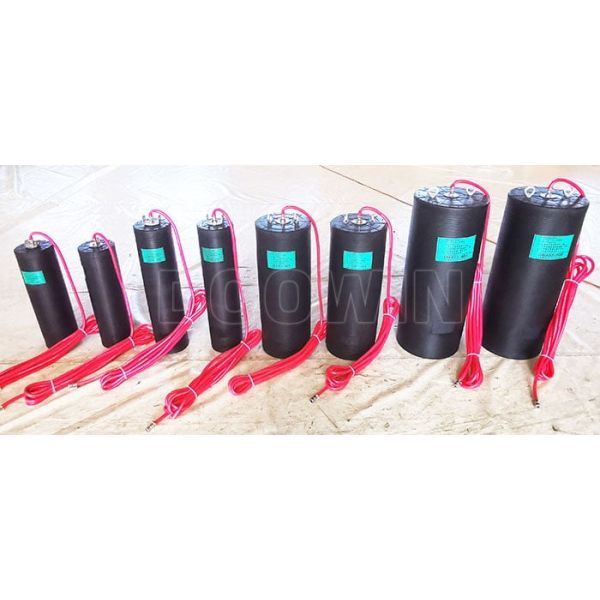

0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use

Specification of Pipe Plug

Model

Pipe Diameter

mm

Air Pressure

MPA

Diameter

mm

Length

mm

Weight

kg

DN150-300

150-300

0.2

135

500

2.5

DN200-400

200-400

0.2

180

600

4

DN200-500

200-500

0.2

180

750

5

DN300-600

300-600

0.15

280

750

10

DN400-800

400-800

0.15

380

900

18

DN500-1000

500-1000

0.15

460

1050

25

Inflatable Pipe Plugs Features

Doowin Marine uses the most durable materials and rigorous tests to ensure the safety and longevity of their plugs. Our inflatable pipe plugs have the following features and benefits:

MUNICIPAL SERIES BLOCKING PIPE PLUGS ARE LIGHTWEIGHT AND DURABLE

  • Suitable for commercial, municipal, large diameter, or high-pressure pipes and pipe systems.
  • We use high-quality rubber and synthetic-tire-cord made to be lightweight without compromising on toughness.
  • Inflatable pipe plugs have a flexible design to make tricky installations easier, especially in difficult-to-access locations.
  • Inflatable pipe plugs are reinforced with synthetic-tire-cord for extra durability.
  • Inflatable pipe plugs have all been tested at a higher pressure than their working pressure to ensure safety.
  • Pipe stopper is sturdy products designed for difficult jobs in tough environments.
  • We supply the whole set of accessories. Ready to use when getting the plugs.
  • Our inflatable pipe plugs can be conformed to almost any pipe configuration.
  • Their small deflated size makes insertion and operations fast, easy, and safe.
  • 0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
  • 0.8m-4.8m Rubber Pipe Plug / Inflatable Rubber Plug For Municipal Use
