High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
Specifications
Brand Name :
DOOWIN MARINE
Model Number :
Inflatable Rubber Pipe Plugs
Certification :
SGS, BV, CCS, ABS, LR, BV.
Place of Origin :
China
MOQ :
1pc
Price :
$USD 100-3900
Payment Terms :
T/T
Supply Ability :
10pcs/per week
Delivery Time :
2~3 weeks
Packaging Details :
Pallet or Plywooden Box
Name :
Rubber Pipe Plug
Diameter :
0.3~2.5m, or customized diameter
Length :
0.8~4.8m, or customized length
Accessories :
Swivel, pressure gauge, quick connector, adaptor
Working Pressure :
0.1~0.25Mpa
Water Depth :
0~10m, or customzied
Warranty :
2 Years
Certificate :
Manufacturer Certificate, BV/ABS/LR/CCS Certificate
Description

Inflatable Pipe Plugs Rubber Airbags High-pressure Pipeline Blocking


Based on years of experience in the production of marine rubber airbags, our company has successfully developed a new generation of high-pressure pipeline blocking inflatable pipe plugs. The inflatable pipe plugs are widely applicable to all kinds of pipeline closed water tests, municipal pipeline maintenance, plugging, dredging, dredging, water blocking, leaking, drainage pipeline maintenance, sewage industry treatment, fire emergency repair, and plugging construction, etc. The new type of blocking inflatable pipe stopper has the advantages of soft and tough texture, strong pressure resistance, good air tightness, anti-cracking, abrasion resistance, explosion-proof, convenient and quick operation, fast blocking speed, and can be used repeatedly.

High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking

Municipal series blocking pipe stoppers are the industry leader in employing advanced rubber compounds and high tensile fiber, with advanced integral winding production technology. Our pipe stopper is more flexible and lightweight, higher safety factor, stronger wear-resisting and anti-aging, and better sealing effect than the competition.

We do the airtightness and pressure test for all pipe plugs at a higher pressure than their working pressure to ensure durability and safety. We supply all necessary accessories together with the inflatable pipe plugs. The workers can use it directly after getting the plugs.
Applications

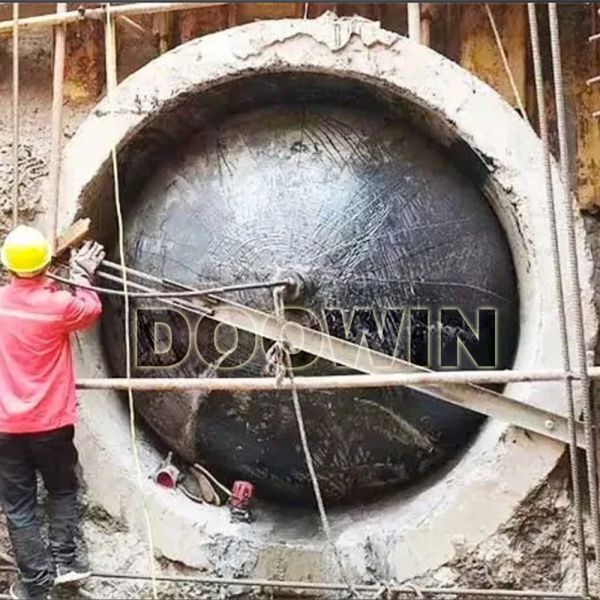

  • Pipeline closed water tests
  • Municipal pipeline maintenance
  • Plugging, dredging, and water blocking
  • Leak repair and drainage maintenance
  • Sewage industry treatment
  • Fire emergency repairs
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking

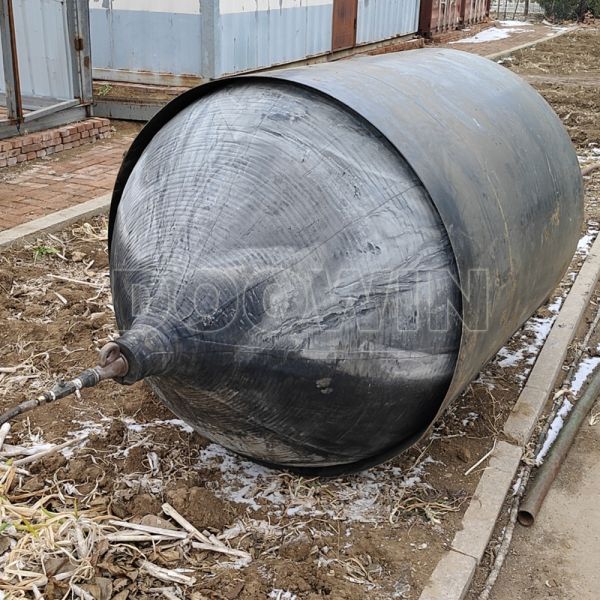

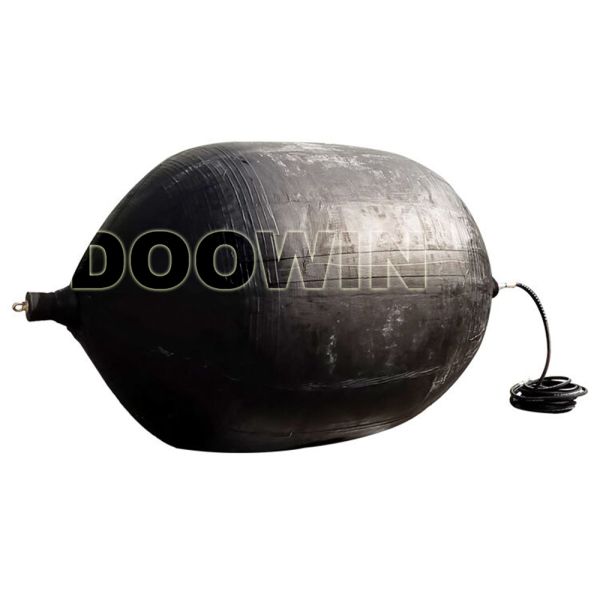

Construction
The high-pressure inflatable pipe plugs feature:
  • Airbag body with two cone ends
  • Traction pull rings at both ends
  • Inflation port at either end
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
Key Features
  • High-quality rubber and synthetic-tire-cord construction
  • Lightweight yet extremely durable
  • Flexible design for difficult installations
  • Reinforced for extra durability
  • Pressure tested above working pressure
  • Complete set of accessories included
  • Conforms to almost any pipe configuration
  • Compact when deflated for easy insertion
Technical Specifications
High Pressure Inflatable Pipe Plugs 300mm DN For Pipeline Blocking
Stoppers Diameter DN (mm) Length (mm) 5M Water Depth Low Working Pressure (MPA) 8M Water Depth Standard Working Pressure (MPA) 10M Water Depth Ultra-High Working Pressure (MPA)
300 800 0.15 0.20 0.25
400 1000 0.15 0.20 0.25
500 1100 0.15 0.20 0.25
600 1400 0.15 0.20 0.25
800 1600 0.12 0.17 0.20
1000 1900 0.12 0.17 0.20
1200 2400 0.12 0.17 0.20
1350 2400 0.10 0.15 0.17
1400 2500 0.10 0.15 0.17
1500 2800 0.10 0.15 0.17
1600 2800 0.10 0.15 0.17
1650 3000 0.10 0.15 0.17
1800 3200 0.10 0.15 0.17
2000 3600 0.10 0.15 0.17
2200 3700 0.10 0.15 0.17
2500 4200 0.10 0.15 0.17

Note: The above performance is for reference. We also manufacture customized sizes. The length varies for different working pressures. Please confirm exact specifications when ordering.
