Specifications
Model Number :
CUB1000-3900
Product Weight :
Varies depending on type and purpose
MOQ :
1pc
Delivery Time :
2~3 weeks
End Fittings: :
1-1/2” Swivel (Hot Dipped Galvanized)
Payment Terms :
T/T
Product Color :
Yellow, orange, or customized
Product Size :
Varies depending on type and purpose
Product Lifespan :
10 years
Warranty :
2 years
Price :
USD$ 200~1600
Skin :
Polyurethane Elastomer
Supply Ability :
10pcs/per week
Product Shape :
Cylindrical, or customized
Place of Origin :
China
Product Name :
Large Mooring Buoy for Sale Marine Ocean Buoy for Mooring Vessel
Packaging Details :
Pallet or Plywooden Box
Certification :
SGS, BV, CCS, ABS, LR, BV.
Brand Name :
DOOWIN MARINE
Inner core :
Closed cell foam core
Description
Large Mooring Buoy for Sale Marine Ocean Buoy for Mooring Vessel
Product Attributes
Attribute Value
Product Shape Cylindrical, or customized
Product Color Yellow, orange, or customized
Skin Polyurethane Elastomer
Product Lifespan 10 years
Product Size Varies depending on type and purpose
End Fittings 1-1/2" Swivel (Hot Dipped Galvanized)
Product Weight Varies depending on type and purpose
Inner core Closed cell foam core
Warranty 2 years
Product Description

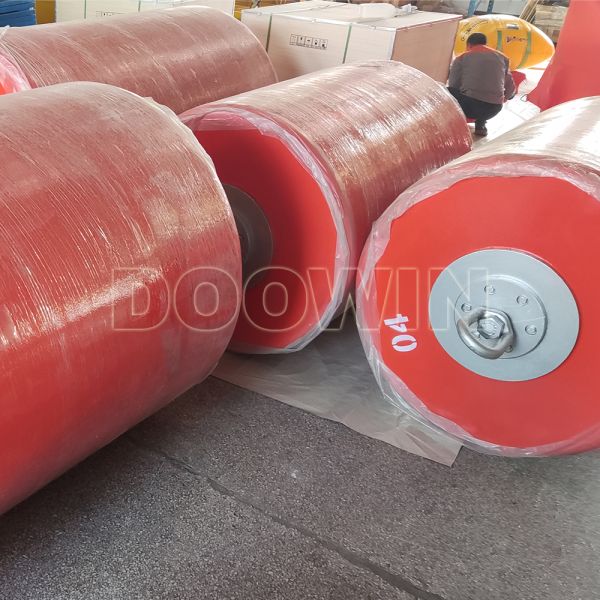

Our offshore surface foam buoys are constructed with resilient closed cell polyethylene/EVA foam around the inner central steelwork, covered by a polyurethane (PU) outer skin. The closed cell foam core ensures self-fendering and unsinkable performance even in case of damage. The self-colored polyurethane elastomer skin provides excellent resistance to abrasion and UV degradation.

Round Mooring Pick Up Buoy Chain Support Buoy for Boats

Round Mooring Pick Up Buoy Chain Support Buoy for Boats
Cylindrical Utility Buoys Specification

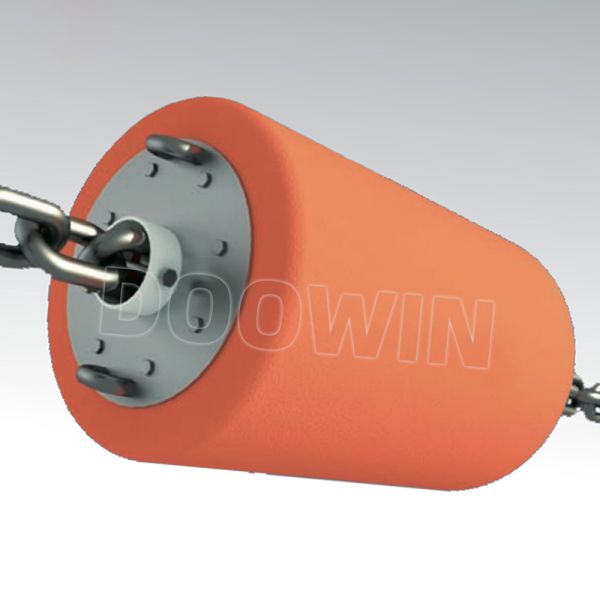

Cylindrical foam-filled chain support buoys ranging from 1 Ton to 4 Tons (or more) - Fitted on each end with mooring pad eye or swivel or mixed depending on use.

Round Mooring Pick Up Buoy Chain Support Buoy for Boats
Type Length (mm) Overall Length (mm) Diameter (mm) Weight (kg) Net Buoyancy (kg) Net Buoyancy (lbs)
CUB-1000 1500 2100 1080 375 1000 2222
CUB-1250 1550 2100 1160 380 1250 2778
CUB-1500 2000 2500 1130 445 1500 3333
CUB-1700 2000 2500 1180 455 1700 3778
CUB-1750 2000 2500 1190 460 1750 3889
CUB-1850 2000 2500 1230 470 1850 4111
CUB-2000 2000 2500 1290 485 2000 4445
CUB-2250 2000 2500 1340 500 2250 5000
CUB-2500 2000 2500 1400 515 2500 5556
CUB-2800 2000 2500 1510 595 2800 6222
CUB-3000 2000 2500 1520 550 3000 6667
CUB-3200 2000 2500 1560 560 3200 7111
CUB-3500 2000 2500 1630 580 3500 7778
CUB-3900 2000 2500 1705 605 3900 8667
Round Mooring Pick Up Buoy Chain Support Buoy for Boats Round Mooring Pick Up Buoy Chain Support Buoy for Boats Round Mooring Pick Up Buoy Chain Support Buoy for Boats
