125–250mm Inclined Double Bitt Bollard | CB/T 169-2011 Type B Welded Mooring Bollard for Ship Deck

Product Overview

CB/T 169-2011 Type B inclined double bitt bollard is designed for medium to heavy-duty ship mooring applications.

The inclined double-post structure increases friction and prevents rope slipping or accidental release during vessel movement.

It is widely used on cargo vessels, barges and harbor service ships requiring stable and high-load mooring performance.

Quick Specifications

• Nominal Diameter: 125–250 mm → Determines rope compatibility
• Type: Type B (double base plate) → Improved load distribution and structural stability
• SWL Range: 19.5–59 kN → Load capacity reference
• Structure: Inclined double bitt → Anti-slip rope holding
• Material: C-Mn Steel / Stainless Steel → Strength & corrosion resistance
• Surface: Sa2.5 + epoxy coating → Marine corrosion protection
• Installation: Welded base → Strong load transfer to deck
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Main Technical Parameters (CB/T 169-2011 Type B)

Engineering Design Logic

Load transfer path: Rope → Bollard Posts → Base Plate → Deck Structure.

Inclined posts increase friction and reduce rope slip under dynamic vessel movement.

Double base plate improves load distribution and structural stability.

Why Inclined Bollard Design?

Prevents rope slipping → Higher mooring safety

Improves holding force → Better stability under vessel movement

Reduces accidental release → Safer operation

Suitable for dynamic conditions → Cargo vessels and barges

Structure

Inclined Double Posts | Double Base Plate | Reinforcement Plates | Welded Structure

Custom Attributes

• Inclined posts → Anti-slip performance
• Double base plate → Higher structural stability
• Welded fabrication → Reliable load transfer
• Smooth surface → Protects rope
• Optional stainless steel → Corrosion resistance

Selection Guide

Step 1 – Select diameter → Based on rope size

Step 2 – Confirm rope type → Wire / fiber

Step 3 – Confirm load → Based on SWL

Step 4 – Select Type → Type B for heavy-duty application

Step 5 – Confirm certification requirement

Not sure about the correct model? Contact us — we will recommend the right solution based on your rope and working conditions.

Inquiry Guide

Please provide rope diameter, rope type, vessel type, installation position and certification requirement.

How It Works

Rope wraps around inclined posts → friction increases → load transfers to base → ensures secure mooring without slipping.

Applications

Cargo vessels | Barges | Harbor service ships | Deck mooring

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

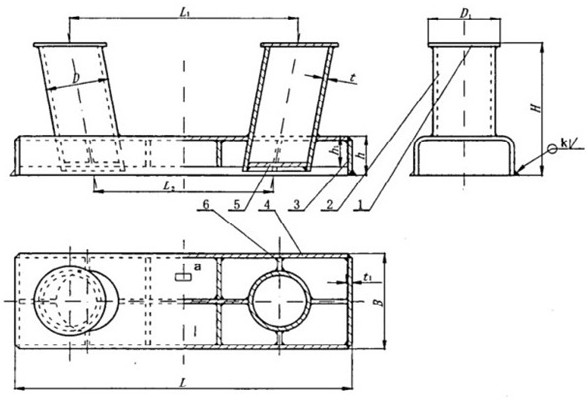

Drawing & Photos

General arrangement drawing and product photos

Ordering

Specify: Type (Type B) | Size | Material | Coating | Certification

FAQ

Q1: What is Type B bollard?

A: Type B is the higher capacity configuration within CB/T 169, featuring a double base plate structure for improved load distribution and structural stability.

Q2: Why inclined design?
A: Prevents rope slipping during vessel movement.

Q3: How to select size?
A: Based on rope diameter and required SWL.
