50–100mm Inclined Double Bitt Bollard | CB/T 169-2011 Type A Welded Mooring Bollard for Ship Deck

Product Overview

CB/T 169-2011 Type A welded incline type bollard is designed for light-duty ship mooring applications.

The inclined double-post structure improves rope holding performance and prevents rope slipping during vessel movement.

It is suitable for workboats, barges and small vessels where compact and reliable mooring is required.

Quick Specifications

Standard: CB/T 169-2011 → Replaces GB556

Application: Inland and small vessel mooring → Compact and efficient solution

Type: Type A (single base plate) → Compact structure

Nominal Diameter: 50–100 mm → Rope compatibility

SWL: 8.5–14.5 kN → Light-duty load range

Material: Carbon structural steel / stainless steel → Strength & corrosion resistance

Structure: Inclined double bitt → Anti-slip rope holding

Surface: Sa2.5 + epoxy coating → Marine protection

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Main Technical Parameters (CB/T 169-2011 Type A)

Engineering Design Logic

Load transfer path: Rope → Bollard Post → Base Plate → Deck.

Inclined posts increase friction and reduce rope slip.

Structure is optimized for light-duty mooring points.

Why Inclined Bollard Design?

Prevents rope slipping → Safer mooring

Improves holding → Stable rope control

Reduces accidental release → Reliable operation

Structure

Inclined posts | Top plate | Base plate | Rib plates | Welded structure

Custom Attributes

Inclined posts → Anti-slip performance

Compact base → Space saving

Smooth finish → Protects rope

Welded fabrication → Reliable strength

Selection Guide

Step 1 – Select A50 / A75 / A100 → Based on SWL

Step 2 – Confirm rope size → From table

Step 3 – Confirm installation → Deck welding

Step 4 – Confirm coating & certification

Not sure about selection? Contact us.

Inquiry Guide

Provide rope size, SWL, vessel type, quantity and certification.

How It Works

Rope wraps around inclined posts → friction increases → load transfers to deck → stable mooring.

Applications

Workboats | Small vessels | Barges | Harbor service ships

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

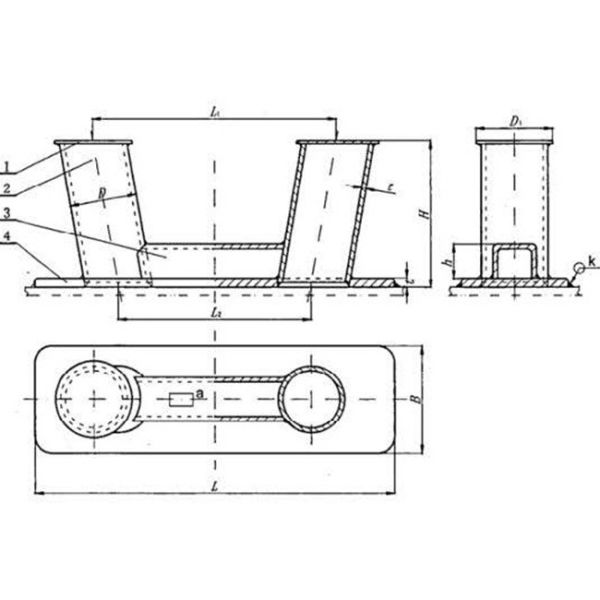

Drawing & Photos

General arrangement drawing and product photos

Ordering

Specify: Type A | Size | Material | Coating | Certification

FAQ

Q1: What is Type A bollard?
A: Light-duty version within CB/T 169 with compact structure.

Q2: Why inclined?
A: Prevents rope slipping.

Q3: How to select?
A: Based on rope size and SWL.
