Product Overview

Type AW steel wire rope reel is designed for compact marine steel wire rope storage where a projecting handle is not required.

The no-handle design keeps the reel profile simple and compact. Operators rotate the reel by gripping the outer drum rim, making it suitable for limited deck space and low-frequency operation.

Compared with handle-operated Type A reels, Type AW reduces protruding parts and provides a simpler structure for storage-oriented applications.

The reel is used for storage only, not for lifting or pulling. It is suitable for 13 mm to 32 mm steel wire ropes with storage length from 120 m to 190 m.

A bolted base, lubricated bearing arrangement, optional brake or locking pin, and smooth free-edge finishing support safe storage and easier onboard arrangement.

Quick Specifications

• Applicable Steel Wire Diameter: 13-32 mm -> Suitable for small to medium marine steel wire rope storage
• Operation: No handle, drum-grip operation -> Operators rotate the reel by gripping the outer drum rim
• Compact Structure: No protruding handle -> Better for limited deck space and storage areas
• Standard: CB/T 3468-92 Type AW -> Marine steel wire rope reel reference standard
• Drum Capacity: 120-190 m -> Selected according to rope diameter and required storage length
• Brake / Locking: Foot brake or locking pin available -> Keeps reel stable during storage
• Base Fixing: Bolted base -> Convenient installation, removal and relocation
• Structure: Weight-reduction hole design -> Reduces product weight while maintaining structural strength
• Bearing Arrangement: Lubricated bearing design -> Easier rotation and lower manual effort
• Material: Mild steel / 304 / 316L stainless steel -> Selected according to corrosion and budget requirement
• Surface Treatment: Hot-dip galvanizing / Sa2.5 blasting + epoxy coating / polished stainless steel -> Marine corrosion protection
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Main Technical Parameters

Note: Model, brake details, base arrangement and drum dimensions can be confirmed according to project drawings and ship deck layout.

Selection Guide

Step 1 - Confirm wire rope diameter -> Select AW13, AW17, AW21, AW26 or AW32 according to rope size

Step 2 - Confirm compact deck requirement -> Select AW when a projecting handle is not preferred

Step 3 - Confirm operation method -> Operators rotate by gripping the outer drum rim

Step 4 - Confirm storage length -> Match drum capacity from 120 m to 190 m

Step 5 - Confirm brake or locking requirement -> Recommended for safe storage and stable onboard condition

Step 6 - Confirm base fixing and coating -> Bolted base and coating system according to ship deck arrangement

Step 7 - Confirm certificate requirement -> Maker’s Test Certificate or class certificate according to project demand

Structure

Drum | Steel Pipe Drum Core | Shaft | Lubricated Bearing Arrangement | Support Frame | Bolted Base | Weight-Reduction Holes | Foot Brake / Locking Pin | No-Handle Compact Structure

Design and Quality Advantages

• No-handle design -> Avoids projecting handle and improves storage compactness
• Drum-grip operation -> Operators rotate by holding the outer drum rim
• Simpler structure -> Fewer external operation parts and easier stowage
• Weight-reduction holes -> Reduce product weight without affecting structural strength
• Foot brake or locking pin -> Keeps the reel stable during storage or standby condition
• Lubricated bearing arrangement -> Smooth rotation and lower manual effort
• Bolted base -> Convenient installation, removal and relocation
• Smooth free edges -> Protects operators from sharp edges and improves handling safety
• Smooth rope contact surface -> Reduces risk of wire rope damage during winding and storage

Custom Attributes

• Product Type: Compact no-handle steel wire rope storage reel -> Used for marine wire rope storage, not lifting
• Standard: CB/T 3468-92 Type AW -> Marine reel reference standard
• Applicable Rope: 13-32 mm steel wire rope -> Covers small and medium diameter storage needs
• Capacity: 120-190 m -> Selected based on rope diameter and required storage length
• Operation: Drum-grip operation -> Operators rotate the reel by holding the outer drum rim
• Structure: No protruding handle -> Suitable for compact storage and limited deck space
• Brake: Foot brake available -> Improves storage stability
• Locking: Locking pin available -> Keeps reel secure during storage
• Installation: Bolted base -> Easy mounting and relocation
• Material: Mild steel / 304 / 316L stainless steel -> Select based on corrosion and budget requirement
• Surface Treatment: Hot-dip galvanizing / epoxy coating / polished stainless steel -> Marine corrosion protection
• Customization: Drum size, base arrangement, brake, locking pin and material -> Supports project-specific requirements
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate -> Supports project documentation and inspection requirements

Inquiry Guide

Please provide wire rope diameter, rope length, compact-space requirement, brake or locking requirement, base fixing arrangement, material, surface treatment and certification requirement.

Not sure about the correct reel size? Send us the rope diameter and storage length, and we will recommend a suitable reel configuration.

How It Works

The steel wire rope is wound onto the drum for storage. Operators rotate the reel by gripping the outer drum rim, while the bearing arrangement supports smooth movement. The foot brake or locking pin secures the reel when the rope is stored or when the reel is not in operation.

Applications

Compact ship deck wire rope storage | Limited deck space | Spare mooring wire storage | Vessel outfitting | Workshop rope storage

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate. Advantages include light-weight structure, smooth rotation, bolted base installation, brake/locking safety, smooth free edges and customizable materials/coatings.

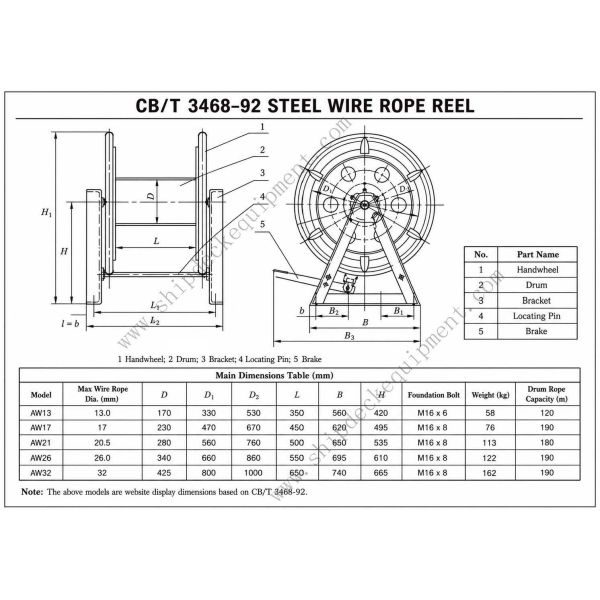

Drawing & Photos

General arrangement drawing and product photos

Ordering

Specify: Type AW model, wire rope diameter, rope length, compact-space requirement, brake or locking requirement, material, surface treatment, bolted base arrangement, quantity and certification requirement.

FAQ

Q1: Why choose AW no-handle reel?
A: AW type is suitable when compact structure and fewer projecting parts are preferred for storage-oriented applications.

Q2: How is the reel operated without a handle?
A: Operators rotate the reel by gripping the outer drum rim. The lubricated bearing arrangement supports smooth rotation.

Q3: Is AW type better for limited deck space?
A: Yes. The no-handle design reduces protruding parts and is easier to arrange in compact storage areas.

Q4: Is this reel used for lifting or pulling?
A: No. It is a storage reel for steel wire rope, not a lifting winch or towing winch.

Q5: Can the surface treatment be customized?
A: Yes. Hot-dip galvanizing, Sa2.5 blasting plus epoxy coating, polished stainless steel and customized coating are available.
