Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
Specifications
Brand Name :
Zhongyuan Marine Equipmen
Model Number :
Standard or Customized
Certification :
CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Place of Origin :
China
MOQ :
1 Unit
Price :
Based on quotation
Payment Terms :
T/T, L/C
Supply Ability :
Customized production based on project requirements
Delivery Time :
Based on project requirements
Packaging Details :
Export standard pallet or customized packing
Model Type :
Double Bitt Bollard;
Type :
8”, 10” with or without horns;
Material Grade :
ASTM A27-70-36 C-Mn Casting Steel or equivalent;
Quality Control :
Material Mechanical Test, Heat treatment, X-Ray, Magmatic examination or dye penetration test if required;
Surface treatment :
Sandblasting, can be shop primer painted;
Certificate :
ABS approval, and Mill’s certificate with material property test report.
Description

Casting Steel Double Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment

Description

Casting steel double bitt bollard is made of material ASTM A27-70-36 or equivalent and has 8” and 10” with or without horns. The surface of the single bitt bollard is smooth and free from burs which may cut the mooring rope. Casting steel has been heat treated before delivery with good mechanical property and surface quality. Dye penetration test or Magmatic examination will be carried out as required for free of sub-surface defects. We can also satisfy clients’ needs for X-Ray test in the way of the critical area where the force concentrates at the bitt bollard.

Main Technical Specification

  1. Model Type: Double Bitt Bollard;
  2. Types: 8”, 10” with or without horns;
  3. Material Grade: ASTM A27-70-36 C-Mn Casting Steel or equivalent;
  4. Surface treatment: Sandblasting, can be shop primer painted;
  5. Quality Control: Material Mechanical Test, Heat treatment, X-Ray, Magmatic examination or dye penetration test if required;
  6. Certificate: ABS approval, and Mill’s certificate with material property test report.

Main Technical Parameters:

Description

Dimensions In Inches

(mm)

LBS

(KGS)
A B C D (Ø) E F (Ø) G H I J K L (Ø) M
Double Bitt 8”

40”

(1016)

14”

(336)

16”

(406)

11”

(279)

8”

(203)

7”

(177)

2”

(51)

2”

(51)

1.25”

(32)

.72”

(18)

 - - -

320

(145)
Double Bitt 8” With Horns

40”

(1016)

14”

(336)

16”

(406)

11”

(279)

8”

(203)

7”

(177)

2”

(51)

2”

(51)

1.25”

(32)

.72”

(18)

10”

(254)

3.5”

(89)

.3”

(8)

331

(150)
Double Bitt 10”

45”

(1143)

15”

(381)

18”

(457)

13.5”

(343)

9”

(228)

9”

(228)

2.25”

(57)

2”

(51)

1.25”

(32)

.75” R

(19)

 - - -

574

(260)
Double Bitt 10” With Horns

45”

(1143)

15”

(381)

18”

(457)

13.5”

(343)

9”

(228)

9”

(228)

2.25”

(57)

2”

(51)

1.25”

(32)

.75” R

(19)

11”

(279)

3.5”

(89)

.3”

(8)

579

(262)

Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment

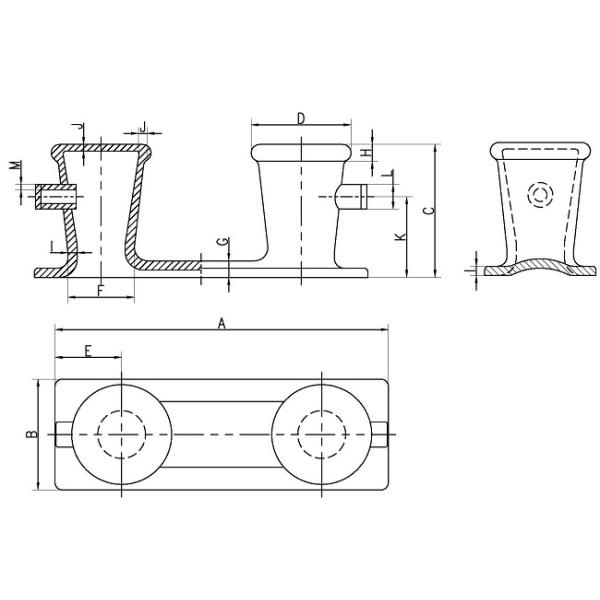

Drawing of Casting Steel Double Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment

Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
