Specifications
Model Number :
JK830
Place of Origin :
Henan, China
Brand Name :
Jinke
Drilling Method :
DTH Hammer
Hole Diameter :
Up to 165mm
Price :
Negotiable
Machine Weight :
14 tons
Feed Stroke :
4m
Track Width :
350mm
Certification :
ISO 9001, CE
Supply Ability :
20 Units per Month
Pull-up Force :
70kN
Air Requirement :
21 m3/min, 21 bar
Engine :
125HP Diesel Heavy Duty Cooling
MOQ :
1 Unit
Payment Terms :
T/T,L/C
Packaging Details :
Export standard: mast and tracks in steel frame crating, suitable for container or flat rack shipment
Description

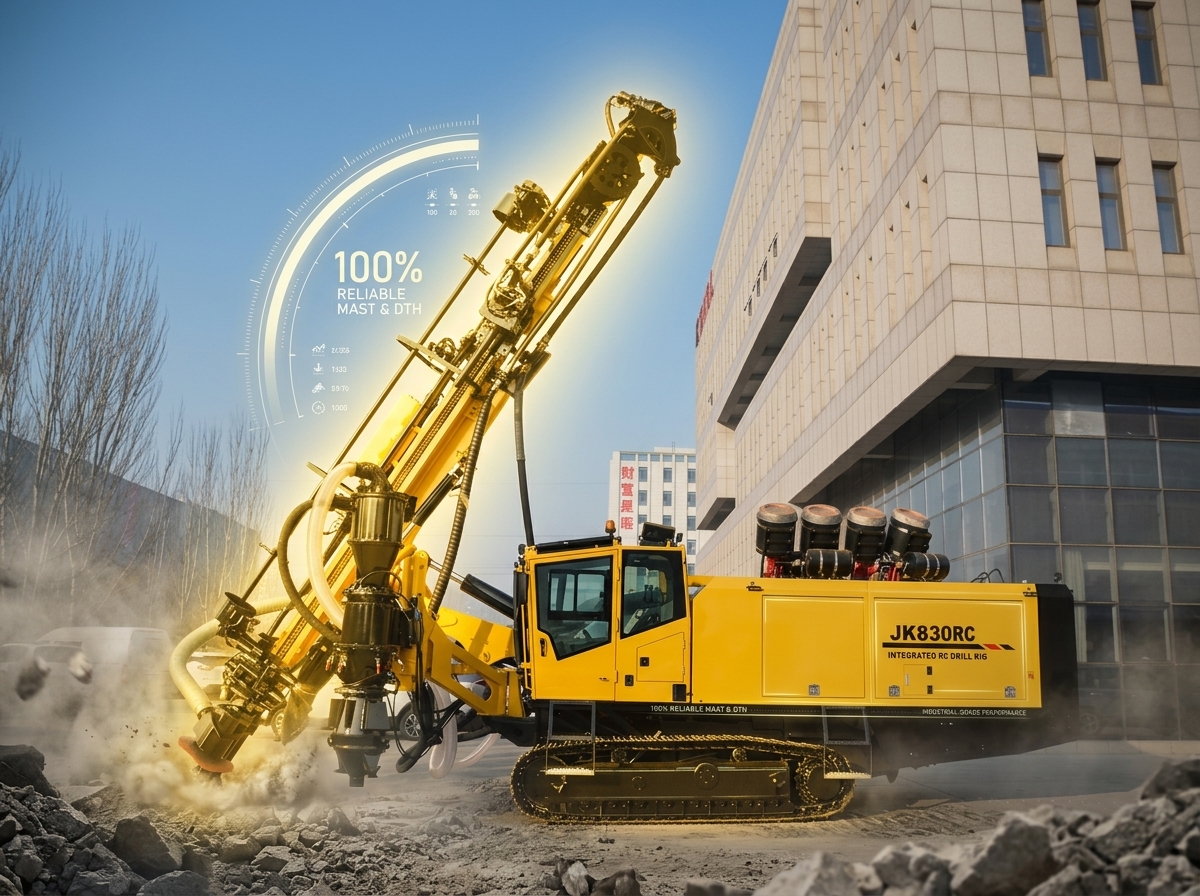

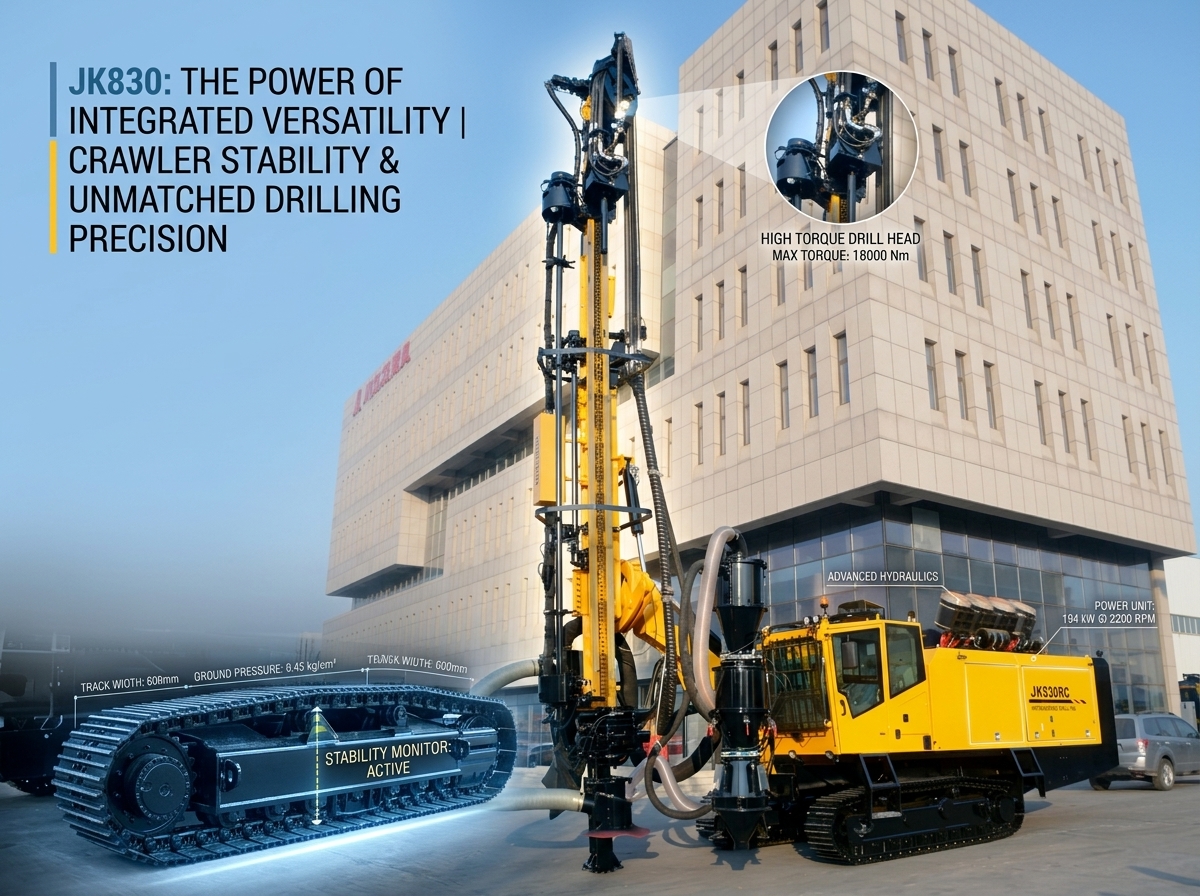

Jinke JK830 Heavy Duty Crawler DTH Drill Rig

For quarries that drill big patterns, the JK830 in heavy duty trim runs 165mm holes all shift without complaints. The frame, mast and feed system are built heavier than the standard machine, and the hydraulic system is tuned for long cycles on hard granite and basalt.

Main Features

  • 165mm max hole diameter for production blast patterns

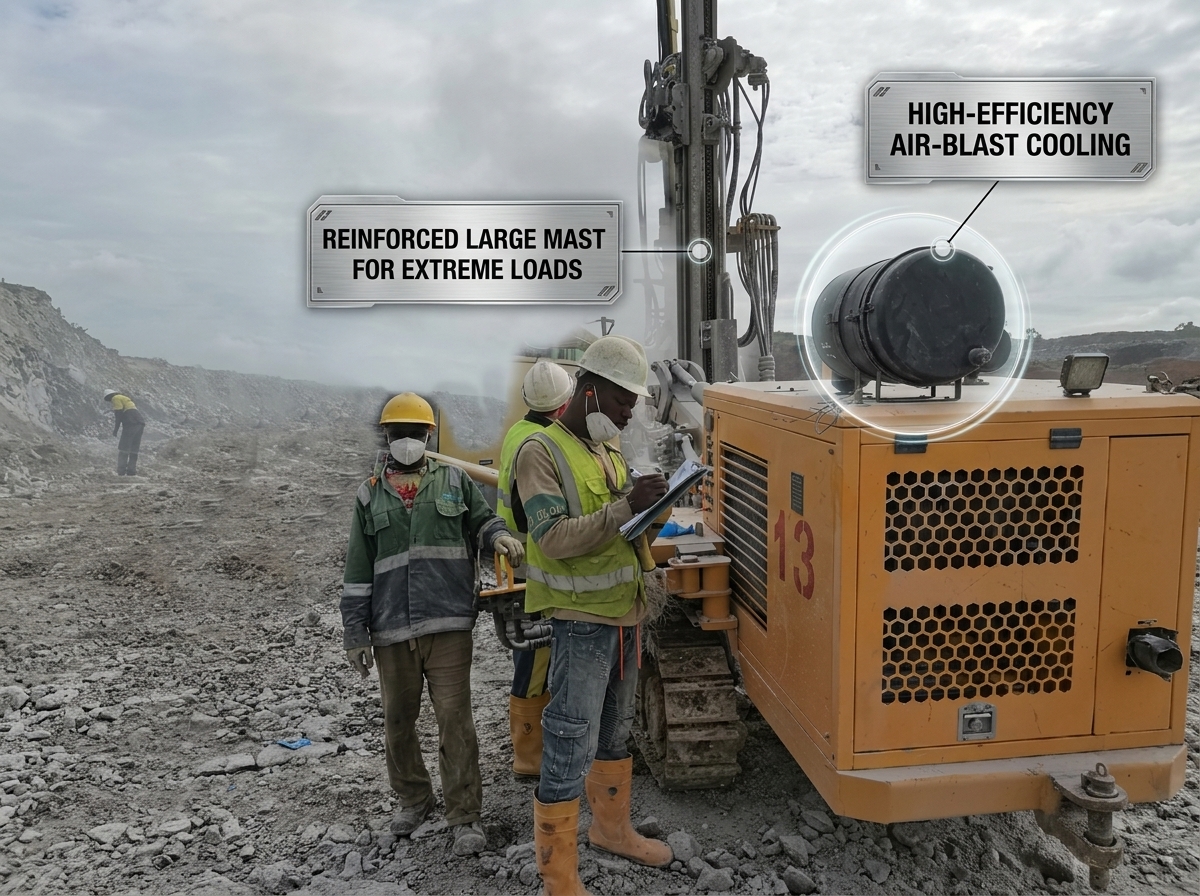

  • Reinforced mast and feed beams for heavy DTH hammers
  • High torque rotation head handles stuck tools without stalling
  • 125HP diesel engine with heavy duty cooling for hot climates
  • Steel tracks with wider grousers grip loose quarry floors
  • Central greasing points cut daily maintenance time

Specifications

Hole diameter: up to 165mm. Drilling method: DTH. Engine: 125HP diesel. Air requirement: 21 m3/min at 21 bar (external compressor). Feed stroke: 4m. Pull-up force: 70kN. Track width: 350mm. Weight: about 14 tons.

This version is paired with a 21 bar compressor in most of our export orders - the higher pressure makes a real difference in hard rock penetration rate. We can quote the rig and compressor as one package.
