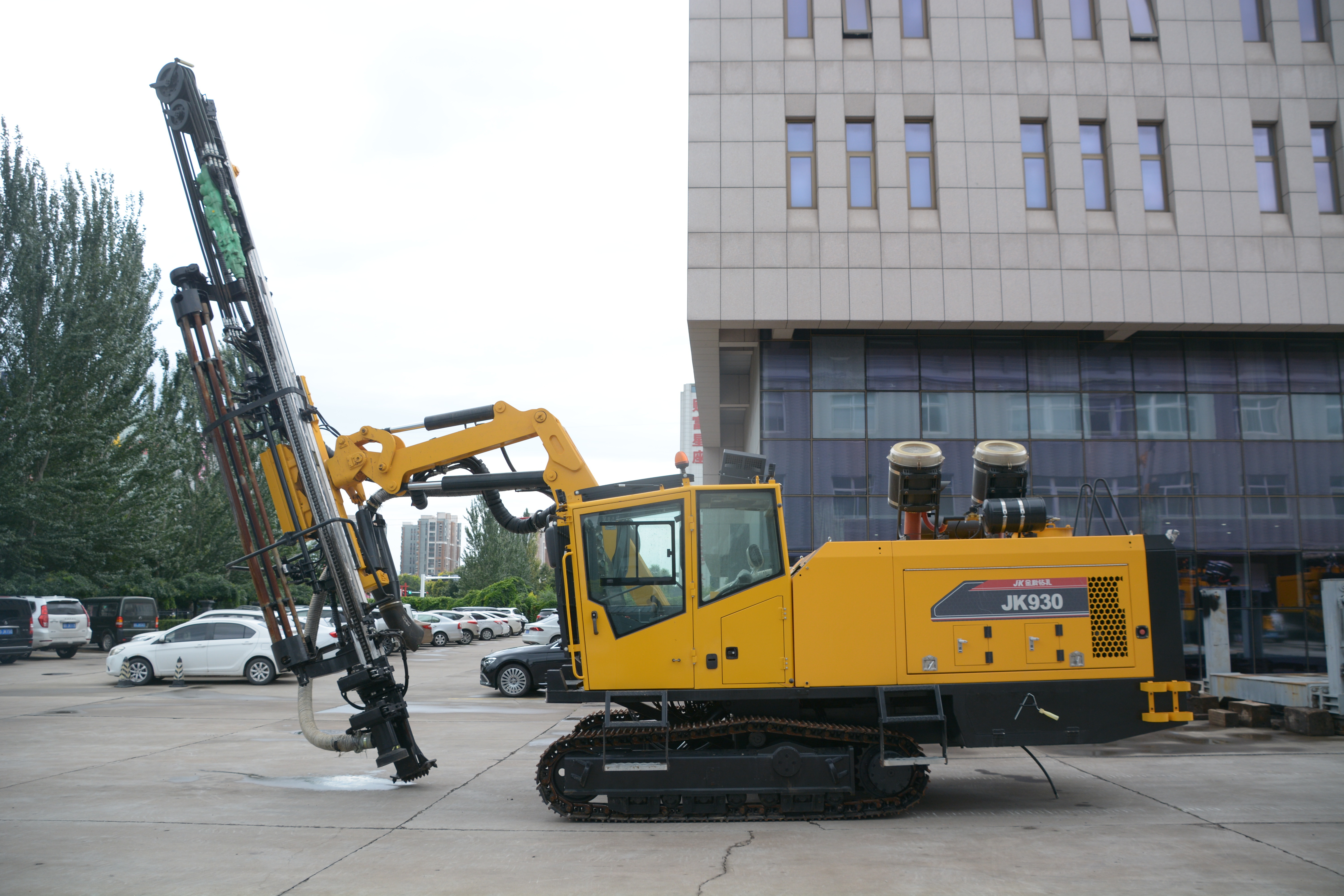

Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Jinke JK930 Truck Mounted Water Well Drill Rig 300m Depth 6X4 Heavy Chassis Geothermal Mining Exploration
Specifications
Feed Type :
Cylinder-Chain Dual Action
Hydraulic Cooling :
Independent Oil Cooler
Brand Name :
Jinke
Price :
USD 90000-130000 / Unit
Delivery Time :
35-50 working days after deposit
Engine Power :
290-340HP Diesel
Rotation Drive :
Hydraulic Top Drive
Feed Stroke :
3.5m
Model Number :
JK930-GT
Certification :
ISO 9001:2015, CE
Payment Terms :
T/T,L/C
Rotation Speed :
0-80 rpm Variable
Safety Features :
Overload Alarm Auto Stop
Rotation Torque :
8000-10000 N·m
Supply Ability :
15 Units per Month
Place of Origin :
Henan, China
Packaging Details :
Flat rack or RORO shipping, full anti-corrosion treatment, control cabin and instruments protected with VCI film, tools packed in marine-grade plywood case
Max Drilling Depth :
300 Meters
Hole Diameter :
105-350mm
MOQ :
1 Unit
Pullback Force :
25 Tons
Chassis Type :
6X4 Heavy Duty Truck
Description

Jinke JK930 Geothermal and Mining Exploration Drilling Rig

Product Overview

This JK930 variant is purpose-configured for geothermal exploration and mining applications where reliability in remote locations is non-negotiable. The 6X4 heavy truck chassis handles unpaved access roads, while the independent hydraulic oil cooling system prevents heat-related downtime during extended drilling operations.

The top-drive rotation head provides 0-80 rpm variable speed with full torque from low RPM — ideal for core barrel operation in exploration drilling. The cylinder-chain feed system delivers smooth, controlled penetration without the jerky motion that can damage core samples or cause borehole deviation in fractured formations.
