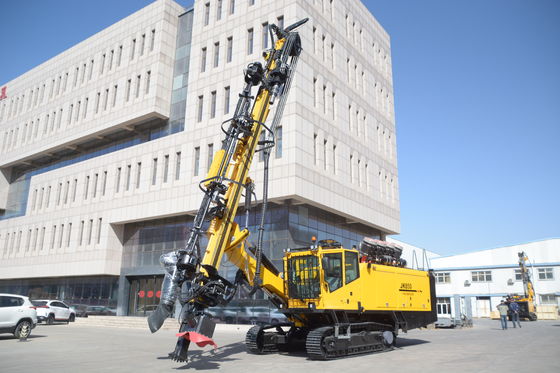

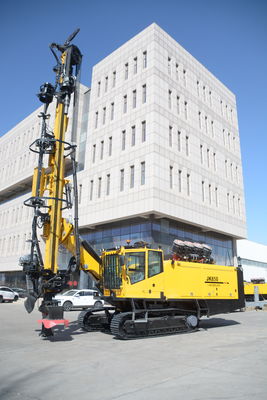

JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
Specifications
Base Type :
Skid-mounted (Crawler track optional)
Packaging Details :
Nude packing in container, key components secured with steel wire and wooden bracing
Place of Origin :
Henan, China
Price :
Negotiable
Payment Terms :
T/T,L/C
Power Source :
Electric Motor Y315S-4 110KW / Diesel Engine 1513BZLD
Drill Pipe Diameter Options :
89mm, 141mm Square, 219mm, 245mm, 273mm, 325mm
Drilling Diameter Range :
105-600mm
Brand Name :
JK
Drilling Depth :
850m
Machine Weight :
35,000 kg
Rotary Table Speed (Forward) :
40, 80, 160, 320 r/min
Main Hoist Lifting Capacity :
80KN
Auxiliary Hoist Lifting Capacity :
50KN
MOQ :
1 Set
Mast Effective Height :
47m
Feeding Stroke :
4.5m
Delivery Time :
35-55 working days after deposit
Rotary Table Torque :
34KN.m
Rotary Table Through Hole :
850mm
Model Number :
JK850
Certification :
ISO 9001:2015, CE
Drill Pipe Length :
3m / 6m
Rotary Table Speed (Reverse) :
40, 80, 160, 320 r/min
Mud Pump Flow Rate :
850 L/min
Description
JK850 Hydraulic Rotary Water Well Drilling Rig

The JK850 is a heavy-duty rotary drilling rig designed for water well construction, geothermal drilling, and deep borehole engineering. Built around an 850mm through-hole rotary table, it handles drilling diameters from 105mm to 600mm with a rated depth of 850 meters.

JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
Power Configuration

The rig can run on either a 110KW Y315S-4 electric motor or a 1513BZLD diesel engine, depending on site power availability. Both options drive the rotary table through a four-speed gearbox delivering 40, 80, 160, and 320 r/min in forward and reverse.

Hoisting System

Main hoist provides 80KN single-rope pull, auxiliary hoist delivers 50KN. The 47-meter mast clears 6-meter drill pipes with room for tool handling. Feed stroke is 4.5 meters.

Technical Specifications
Model JK850 / JKA-5-4 850/22
Drilling Depth 850 m
Drilling Diameter 105 - 600 mm
Rotary Table Through Hole 850 mm
Rotary Table Torque 34 KN.m
Rotary Table Speed (Forward) 40 / 80 / 160 / 320 r/min
Rotary Table Speed (Reverse) 40 / 80 / 160 / 320 r/min
Main Hoist Capacity 80 KN (single rope)
Auxiliary Hoist Capacity 50 KN (single rope)
Mast Height 47 m
Feeding Stroke 4.5 m
Power - Electric Motor Y315S-4, 110 KW
Power - Diesel Engine 1513BZLD
Mud Pump Flow Rate 850 L/min
Drill Pipe (Round) 219 / 245 / 273 / 325 mm
Drill Pipe (Kelly) 141 mm square / 89 mm hex
Drill Pipe Length 3 m / 6 m
Base Type Skid-mounted (crawler optional)
Machine Weight 35,000 kg
Key Features
  • 850mm through-hole rotary table handles large-diameter drilling tools and casing
  • Four-speed forward and reverse rotation for different formation conditions
  • Dual power option — electric for fixed sites, diesel for remote locations
  • Skid-mounted base with optional crawler tracks for site-to-site moves
  • 47-meter mast clears 6-meter drill pipe sections with tooling headroom
  • 80KN main hoist rated for deep hole tool handling
  • 850 L/min mud pump matched to hole cleaning requirements at depth
Note: Crawler track undercarriage is available as an option for sites requiring frequent repositioning. Contact us with your project depth, diameter, and formation details for a tailored configuration.
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
JK850 Hydraulic Rotary Water Well Drilling Rig 850mm Rotary Table for Deep Borehole Engineering
On-Site Assembly and Transport

The rig ships as main components on a flatbed or in a container. Assembly on site typically takes 3-5 days with a small crew and basic lifting equipment. All critical connections use bolted joints — no site welding required. Spare wear parts (brake bands, seals, mast sheave bearings) are included in standard shipment.

Common Applications
  • Agricultural and municipal water supply wells
  • Geothermal heat exchange boreholes
  • Geological survey and mineral exploration drilling
  • Dewatering wells for mining and construction
