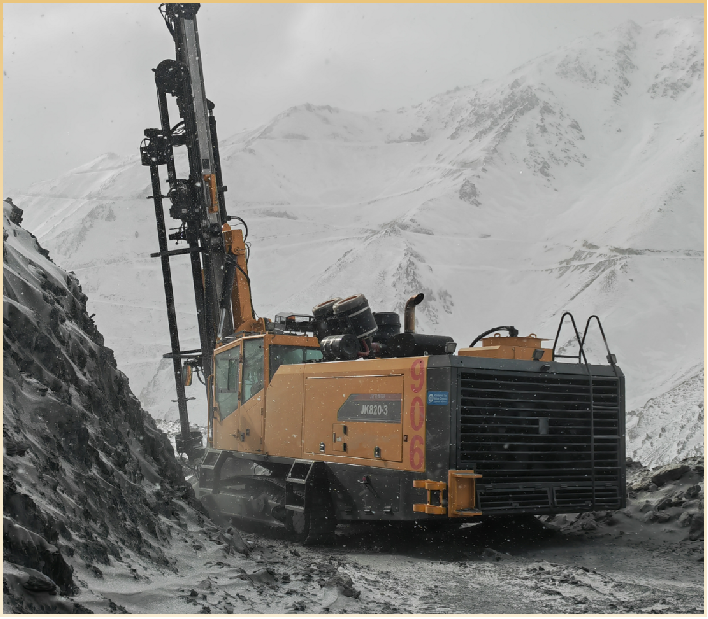

JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
JK820 Hydraulic Crawler Down The Hole Drilling Rig Machine for Quarry Mining Operations
Specifications
Rotation Speed :
0-60 rpm
Chassis Type :
Hydraulic Crawler
Brand Name :
JINKE
Hole Diameter :
90-138 mm
Chassis :
Hydraulic Crawler 7 Support Rollers
Packaging Details :
Standard seaworthy export packaging, main unit secured on steel frame with shrink wrap, accessories in plywood cases
Working Pressure :
1.0-2.1 MPa
Travel Speed :
0-2.5 km per h
Impact Frequency :
820 bpm
Feed Force :
18 kN
Total Weight :
6500 kg
Air Consumption :
11-17 m3 per min
Climbing Ability :
30 Degrees
Overall Dimensions :
5100 x 2150 x 2700 mm
Place of Origin :
China
Controls :
Pilot Hydraulic Joysticks
Model Number :
JK820
Certification :
ISO 9001:2015, CE
Dust Hood Type :
Dual-Layer Sealed
Engine Type :
Diesel Engine
Drilling Depth :
20-30 m
MOQ :
1 Set
After-Sales :
48-Hour Spare Parts Dispatch
Supply Ability :
15 Sets per Month
Drill Pipe Diameter :
76 mm
Dimensions :
5100 x 2150 x 2700 mm
Price :
Negotiable
Drilling Method :
Down-The-Hole (DTH)
Dust Hood :
Dual-Layer Sealed Design
Description
JK820 — The Rig That Earned Its Reputation in the Field

Spec sheets are easy to write. Real-world performance is what separates a reliable drill from a headache. The JK820 has accumulated over 200 units in active field operation across quarries and construction sites in Yunnan, Guizhou, Sichuan, and Guangxi. Every improvement in the current version comes directly from operator and site manager feedback — not from a marketing department.

What We Fixed Based on Real Feedback
Dust ControlUpgraded from single to dual-layer sealed dust hood — airborne dust reduced by over 40%, keeping the worksite compliant with environmental regulations
ControlsSwitched from mechanical linkage to pilot hydraulic joysticks — smoother response, less operator strain over an 8-hour shift
UndercarriageTrack rollers increased from 5 to 7 support rollers — better load distribution on soft ground and rocky slopes
Hydraulic LinesRouting optimized during revision — hoses no longer rub against frame members, hose life extended significantly
Parts and Service — No Long Waits
📦 Wear Parts Included

Every JK820 ships with a consumables kit — seals, filters, grease fittings — enough for the first 6 months of routine operation.

🚚 48-Hour Parts Dispatch

Common spares stocked in provincial warehouses. Specialty parts shipped within 48 hours to any domestic address — export shipments via DHL/FedEx.

🔧 Mature Component Supply

Engine, hydraulic pumps, and motors are all domestic mainstream models — parts available at equipment dealers in every province, not locked into a single supplier.

Specifications Snapshot
Hole Diameter / Depth90-138 mm / 20-30 m
Impact Frequency820 bpm
Air Consumption11-17 m\u00b3/min
Weight / Dimensions6500 kg / 5100\u00d72150\u00d72700 mm
Engine / ChassisDiesel / Hydraulic Crawler
CertificationISO 9001:2015, CE

Don't take our word for it. We can arrange a site visit to a working JK820 near you. Watch it drill in real rock conditions. Talk to the operator. Then decide. Contact us to schedule a visit or request a full technical datasheet.
