Specifications
Feed Stroke :
3.5m Dual-Action
Mobility :
Self-Propelled Highway Legal
Engine Power :
290-340HP Diesel
Model Number :
JK930-MP
Price :
Negotiable
Drilling Methods :
Air DTH / Mud Rotary / Foam
Pullback Force :
25 Tons
Place of Origin :
China
Rotation Torque :
8000-10000 N·m
Options :
RC Sampling Wireline Core Barrel
Top Drive Type :
Hydraulic Variable Speed
Max Drilling Depth :
300 Meters
Packaging Details :
Flat rack container or RORO, anti-corrosion coating on exposed metal, cabin and instruments shrink-wrapped with desiccant, drill tools in export-grade plywood case
Brand Name :
Jinke
Chassis Type :
6X4 Mobile Truck
MOQ :
1 Unit
Payment Terms :
T/T,L/C
Certification :
ISO 9001:2015, CE
Supply Ability :
20 Units per Month
Hole Diameter Range :
105-350mm
Setup Time :
Under 30 Minutes
Description

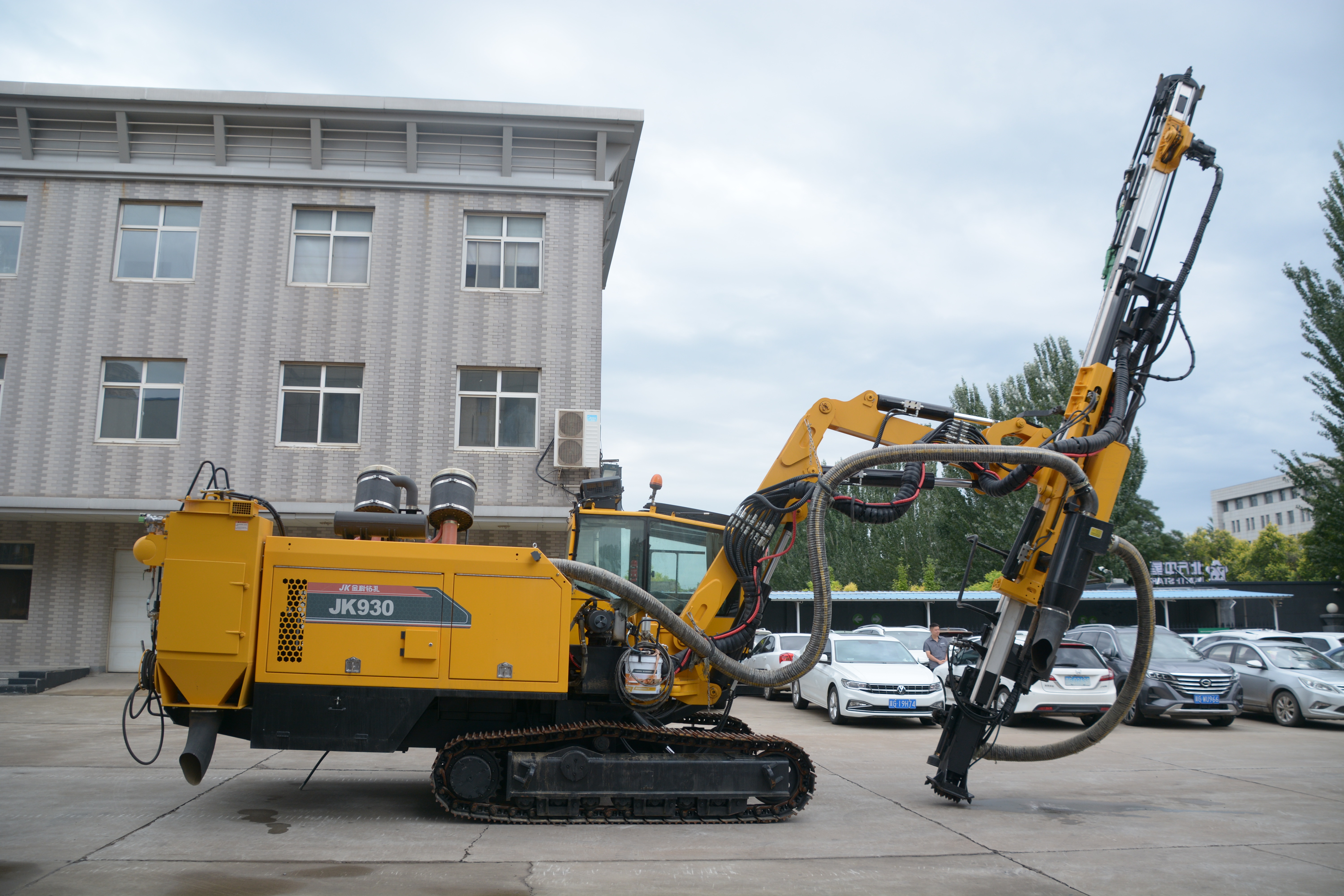

Jinke JK930 Multi-Purpose Mobile Drilling Rig

One Rig, Four Applications

The JK930 multi-purpose rig is designed for drilling contractors who cannot afford to own separate equipment for different job types. Water well drilling today, blast hole drilling tomorrow, geothermal exploration next week — same machine, just change the tooling and drilling mode.

On a single 6X4 mobile truck chassis, the JK930 packs a high-pressure air compressor, mud pump, foam injection system, and hydraulic top drive — three drilling methods on one platform. Mode switching is done through a centralized control panel; no mechanical modifications required between jobs.
