Miniature surface mount magnetic angular position sensor ic Honeywell APS00A with anisotropic magnetoresistive technology
Miniature surface mount magnetic angular position sensor ic Honeywell APS00A with anisotropic magnetoresistive technology
Miniature surface mount magnetic angular position sensor ic Honeywell APS00A with anisotropic magnetoresistive technology
Miniature surface mount magnetic angular position sensor ic Honeywell APS00A with anisotropic magnetoresistive technology
Specifications
Description :
Angle, Linear Position Measuring RoHS
Mfr. Part # :
APS00A
Model Number :
APS00A
Description

Honeywell APS00B High Resolution Magnetic Angular Position Sensor IC

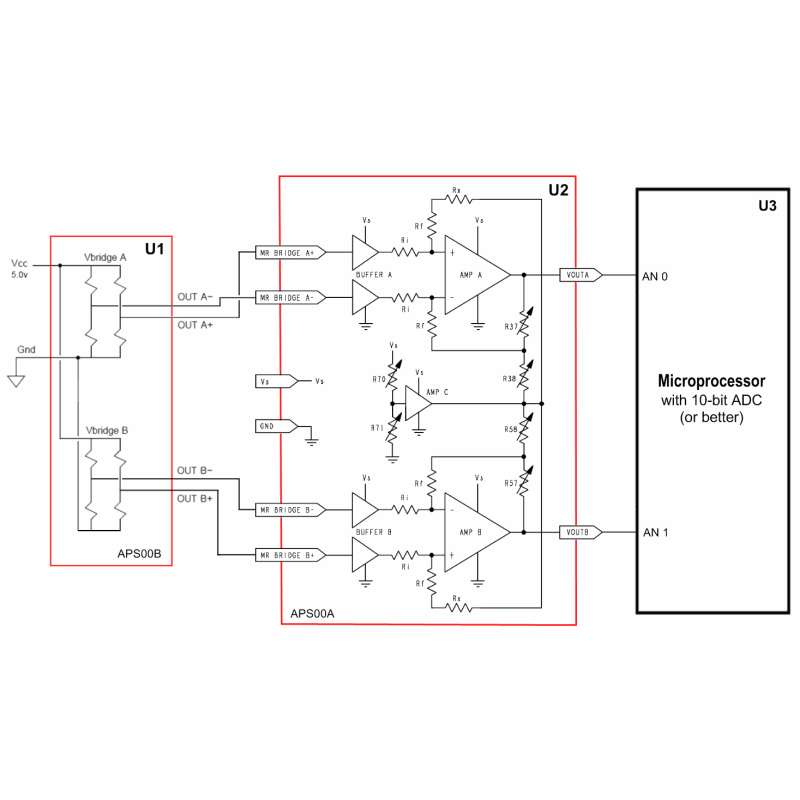

The Honeywell APS00B is a miniature surface mount Integrated Circuit designed for high-resolution magnetic angular position sensing. Utilizing Anisotropic Magnetoresistive (AMR) technology, it provides superior performance over Hall-effect sensors, offering precise measurements with excellent resolution and insensitivity to environmental factors like shock, vibration, and magnet-to-sensor gap variations. The APS00B generates analog sine and cosine outputs from dual Wheatstone bridges, enabling extended angular measurements up to 180 and facilitating applications such as rotary speed and angle detection, and non-contact precision location measurement systems. Its cost-effective and space-efficient SOIC-8 package makes it ideal for high-volume OEM designs.

Product Attributes

  • Brand: Honeywell
  • Technology: Anisotropic Magnetoresistive (AMR)
  • Package: SOIC-8 Surface Mount
  • Certifications: RoHS-compliant
  • Assembly: Suitable for automated pick-and-place equipment

Technical Specifications

ParameterConditionMin.Typ.Max.Unit
Absolute Maximum Ratings
Supply voltage-12+12V
Power Dissipation200mW
Operating Temperature-55 [-67]150 [302]C [F]
Magnetic fluxno limitGauss
Characteristics
Supply voltageVs = 5.0 V5.012V
Operating Temperature-40 [-40]150 [302]C [F]
Bridge resistancebridges are connected in parallel0.91.251.6kOhm
Supply current4.07.0mA
Sensitivity around zero crossing2.12.3mV/
Angle rangeB > saturation field-90+90
Resolution0.05
Max. output amplitude47.567.5mV
Min. output amplitude-47.5-67.5mV
Output amplitude (peak to peak)95135mV
Offset voltage-11mV
Amplitude change at 140C [284F]-34-43%
Amplitude change at -40C [-40 F]2431%
Offset shift-22mV
Synchronism (Amp A/Amp B)97100103%
Synchronism shift-11%
Saturation level<10 V/Gauss amplitude change60190Gauss
Bandwidth0to5.0MHz

2504101957_Honeywell-APS00A_C17192688.pdf
