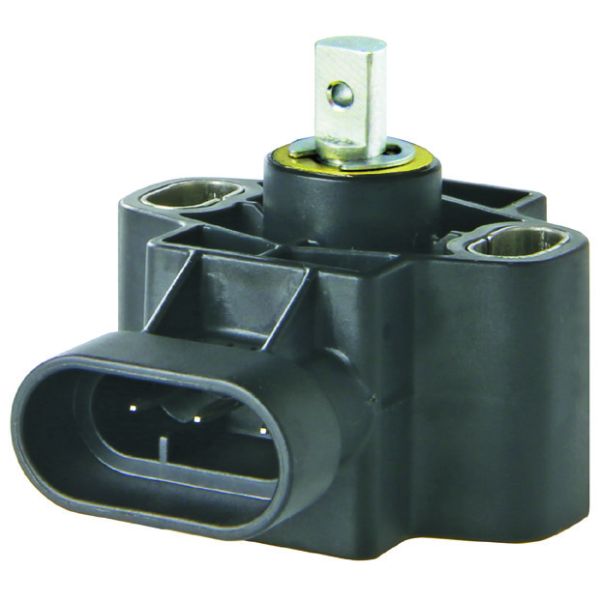

rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
rotary position sensor Honeywell RTP270HVNAX with multiple operating ranges from 50 to 360 degrees
Specifications
Description :
Angle, Linear Position Measuring RoHS
Mfr. Part # :
RTP270HVNAX
Model Number :
RTP270HVNAX
Description

Honeywell RTY & RTP Series Hall-effect Rotary Position Sensors

The RTY Series and RTP Series Hall-effect Rotary Position Sensors offer non-contact sensing for harsh transportation and industrial applications at a competitive cost. The RTY Series features integral shafts with or without levers, while the RTP Series separates the magnet from the sensor body for enhanced durability. Utilizing a Hall-effect IC, these sensors convert rotary movement into a linear output, housed in a rugged, IP69K-qualified package. They provide true non-contact operation, solid-state technology, and are protected against EMI/EMC, reverse polarity, and short circuits. Available in eight operating ranges from 50 to 360, they support input voltages from 4.5 Vdc to 30 Vdc.

Product Attributes

  • Brand: Honeywell
  • Certifications: CE, UKCA
  • Material (Shaft): Stainless steel (RTY Series)
  • Material (Magnet): NdFeB
  • Material (Sensor Housing): PBT plastic
  • Material (Housed Magnet Overmold): PPS plastic
  • Material (Sensor/Housed Magnet Bushing): Brass
  • Actuator Types: Integral shaft (with/without lever), Separate bare magnet, Separate housed magnet
  • Mounting Pitch: 32 mm
  • Termination: AMP Superseal 282087-1
  • EMI/EMC: Automotive-grade testing
  • Ingress Protection: IP69K

Technical Specifications

CharacteristicRTY Series (LV/HV)RTP Series (LV/HV)
Expected Life35 M cyclesInfinite rotation
Supply Voltage5 0.5 Vdc (LV), 10 Vdc to 30 Vdc (HV)5 0.5 Vdc (LV), 10 Vdc to 30 Vdc (HV)
Supply Current (max.)20 mA (LV), 25 mA (HV)32 mA (LV), 47 mA (HV)
Output Type0.5 Vdc to 4.5 Vdc ratiometric (Standard), 4.5 Vdc to 0.5 Vdc ratiometric (Inverted)0.5 Vdc to 4.5 Vdc non-ratiometric (Standard), 4.5 Vdc to 0.5 Vdc non-ratiometric (Inverted)
Output Signal Delay4 ms typ.4 ms typ.
Overvoltage Protection10 Vdc (LV)10 Vdc (LV)
Reverse Polarity Protection-10 Vdc (LV), -30 Vdc (HV)-10 Vdc (LV), -30 Vdc (HV)
Output to Ground Short Circuit ProtectionContinuousContinuous
Resolution12 bit12 bit
Output Load Resistance10 kOhm typ.10 kOhm typ.
Radiated Immunity100 V/m per ISO11452-2 (200 MHz to 1000 MHz)100 V/m per ISO11452-2 (200 MHz to 1000 MHz)
Conducted Immunity100 mA BCI per ISO11452-4 (1 MHz to 200 MHz)100 mA BCI per ISO11452-4 (1 MHz to 400 MHz)
Operating Temperature Range-40 C to 125 C-40 C to 125 C
Media CompatibilityHeavy transportation fluidsHeavy transportation fluids
Shock50 G peak50 G peak
Vibration20 G peak20 G peak
Salt Fog5% 1% for 240 hr per SAE J1455 (at 5.0 Vdc, 38 C)Bare magnet: 96 hr per ASTM B117; Housed magnet: 240 hr per ASTM B117
Air Gap (Housed Magnet Actuator)2.00 0.5 mm [0.08 in 0.02 in]
Air Gap (Bare Magnet Actuator)3.00 0.5 mm [0.12 in 0.02 in]

2412201736_Honeywell-RTP270HVNAX_C17320964.pdf
