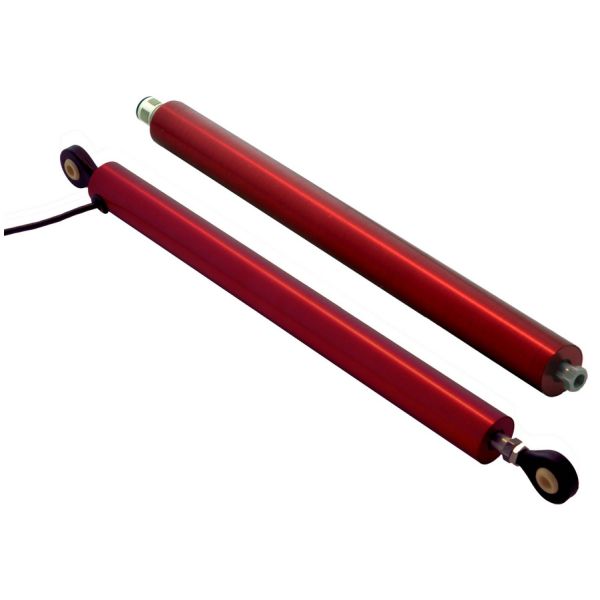

Industrial LVIT position sensor Alliance Memory LRI-19-200-R-00-20-A with analog output and IEC IP67 rating
Industrial LVIT position sensor Alliance Memory LRI-19-200-R-00-20-A with analog output and IEC IP67 rating
Specifications
Linear Range :
0mm~203.2mm
Description :
0mm~203.2mm Angle, Linear Position Measuring RoHS
Mfr. Part # :
LRI-19-200-R-00-20-A
Model Number :
LRI-19-200-R-00-20-A
Description

Product Overview

The LR-19 series LVIT (Linear Variable Inductance Transducer) position sensors by Alliance Sensors Group are contactless devices designed for factory automation and various industrial and commercial applications. They offer superior performance, an excellent stroke-to-length ratio, and are ideal for industrial testing, laboratories, and OEM applications. The LR-19 series is available in 6 full scale ranges from 25 to 200 mm, operates from various DC voltages, and features four analog output options and ASGs proprietary SenSet field calibration feature. Options include axial cable or connector terminations, or radial exiting cable with swivel rod eye ends for easy installation. A larger body version, the LR-27, is also available for heavier duty applications.

Product Attributes

  • Brand: Alliance Sensors Group
  • Technology: LVIT Technology (Linear Variable Inductance Transducer)
  • Certifications: IEC IP-67
  • Material: Aluminum (Housing)
  • Origin: USA

Technical Specifications

Model SeriesMeasuring Range (mm)Linearity Error (typical)ResolutionUpdate Rate (nominal)Operating TemperatureTemperature CoefficientVibrationShockHumidityAnalog I/OInput VoltageMax Current Draw
LR-19 Series25 - 200 (1 - 8 inches)0.15% of FSO0.025% of FS300 Hz-20 C to 85 C (-40 C to 105 C Extended)0.015% of FS/deg C5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p1000 g, 11 ms95% RH, non-condensing0 5 V or 0.5 4.5 V8 30 V35 mA max.
LR-19 Series25 - 200 (1 - 8 inches)0.15% of FSO0.025% of FS300 Hz-20 C to 85 C (-40 C to 105 C Extended)0.015% of FS/deg C5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p1000 g, 11 ms95% RH, non-condensing0 10 V12 30 V35 mA max.
LR-19 Series25 - 200 (1 - 8 inches)0.15% of FSO0.025% of FS300 Hz-20 C to 85 C (-40 C to 105 C Extended)0.015% of FS/deg C5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p1000 g, 11 ms95% RH, non-condensing4 20 mA (3-wire)18 30 V60 mA max. (75 C max.)
