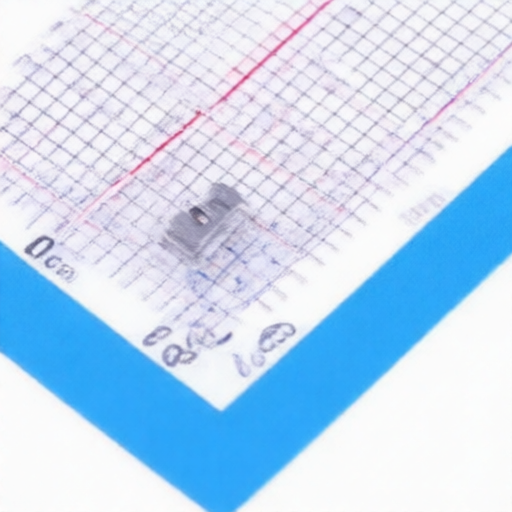

TOF sensor AMS TMF8801-1B with fast VCSEL driver protection and histogram based SPAD TDC technology
TOF sensor AMS TMF8801-1B with fast VCSEL driver protection and histogram based SPAD TDC technology
Specifications
Linear Range :
20mm~2500mm
Interface :
I2C
Voltage - Supply :
2.7V~3.3V
Description :
20mm~2500mm I2C OLGA-12(2.2x3.6) Angle, Linear Position Measuring RoHS
Mfr. Part # :
TMF8801-1B
Model Number :
TMF8801-1B
Package :
OLGA-12(2.2x3.6)
Description

Product Overview

The TMF8801 is a time-of-flight (TOF) sensor integrated into a single modular package with an associated VCSEL. Leveraging SPAD, TDC, and histogram technology, this TOF device offers a detection range of up to 2500 mm. Its small footprint makes it suitable for mobile phone bezels, and it provides accurate detection of the closest objects within a 21 Field of Illumination (FOI). The sensor boasts within 5% measurement accuracy, avoiding multipath and multiple object issues common in iToF sensors. It features a Time-to-Digital Converter (TDC) for direct TOF measurement, a Single Photon Avalanche Photodiode (SPAD) with a histogram-based architecture, and dynamic cover glass calibration for reliable operation in demanding scenarios. It is Class 1 Eye Safe with a fast VCSEL driver and protection.

Product Attributes

  • Brand: ams
  • Origin: Austria, Europe
  • Certifications: Class 1 Eye Safe

Technical Specifications

FeatureSpecification
Detection RangeMinimum: 20 mm
Maximum: 2500 mm
Field of Illumination (FOI)21
AccuracyWithin 5%
Package Size2.2 mm x 3.6 mm x 1.0 mm
TechnologySPAD, TDC, Histogram
VCSELFast driver with protection

2410122031_AMS-TMF8801-1B_C1852800.pdf
