DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch
Specifications
Model Number :
DTT31-A1C111AB2AAB
MOQ :
1pc
Delivery Time :
8-12 weeks
Net weight :
0.260 Kilogram
Brand Name :
Endress+Hauser
Packaging Details :
Original packaging
Payment Terms :
T/T
Max. process pressure :
100 bar (1.740 psi)
Outputs :
1 x PNP switchable output + 1 x 4...20 mA analog output
Price :
Negotiable
Degree of protection :
IP66
Supply Ability :
100pcs per month
Measuring principle :
Thermal
Certification :
CE
Display/Operation :
LED LCD-Display
Place of Origin :
DE
Description

DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch

Endress+Hauser Flowphant T DTT31-A1C111AB2AAB thermal dispersion flow switch for liquids: no moving parts, 0.03–3 m/s measuring range, 1× PNP switch + 4–20 mA analog output, 6 mm probe with 30 mm insertion length, M12 connector, 18–30 V DC. Monitors flow and temperature in one device — ideal for cooling water, lube oil, seal water and leak detection. 310° rotatable display, IP67, chemical-resistant PEEK/PVDF wetted parts.

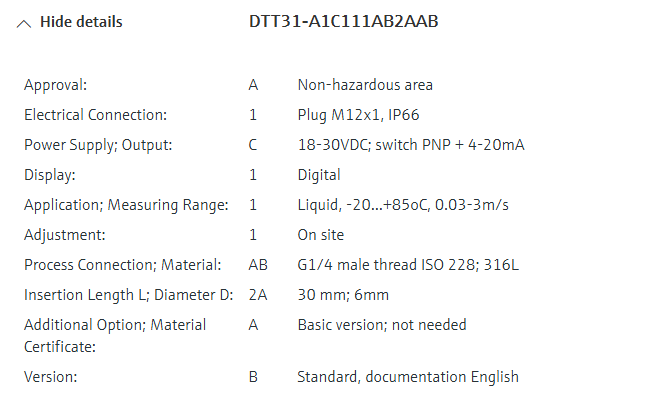

Techinical date


Model
Flowphant T DTT31
Full order code
DTT31-A1C111AB2AAB
Measuring principle
Thermal dispersion / calorimetric
Medium
Liquids (water, oils, coolants, chemicals)
Flow range
0.03 … 3 m/s
Temperature range (medium)
-20 … +85 °C
Temperature measurement
Integrated (flow + temp in one device)
Switch output
1 × PNP, normally open / closed configurable
Analog output
1 × 4–20 mA (active)
Power supply
18 … 30 V DC
Electrical connection
M12 × 1, 4-pin (A-coded)
Probe diameter
6 mm
Insertion length
30 mm
Process connection
G ½ (standard for DTT31 insertion)
Wetted materials
Probe: 316L (1.4404); housing: PEEK / PVDF options
Display
Digital, 310° rotatable
Protection class
IP66 / IP67
Response time
< 1 s (typical, depends on setpoint)
Pressure rating
≤ 10 bar (verify per nameplate)
Ambient temp.
-20 … +60 °C
Approvals
CE, cULus (per variant); non-hazardous area base
