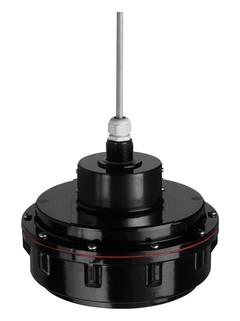

Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Endress Hauser Prosonic FDU95 Ultrasonic Level Sensor for Bulk Materials
Specifications
Brand Name :
Endress+Hauser
Model Number :
FDU95-R1G6A
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Temperature :
-40...+80oC/176oF
Blocking Distance :
2.3ft
Blocking :
membrane 316L, PE coated
Process Connection :
Thread ISO228 G1, UP
Cable Length :
30m/98ft
Additional Option :
Basic version
Net weight :
6.800 Kilogram
Country of dispatch :
DE
Description

Endress+Hauser Ultrasonic measurement Time-of-Flight Prosonic FDU95

The FDU95 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

Sensor for continuous, non-contact level measurement of bulk materials in silos, on belts, stockpiles and in crushers. Typically used in measurements in low structural heights.

Process connection: Thread

Temperature: -40 to +80°C or +150°C (-40 to +176°F or +302°F)

Pressure: +0.7 to +1.5bar (+10 to +22psi)

Maximum measuring range: Solids 45m (148ft)

Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)

International explosion protection certificates

Measuring principle

Ultrasonic

Characteristic / Application


Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter

Supply / Communication


4-wire (HART, Profibus DP)

Accuracy


+/- 2 mm + 0.17% of measured distance

Ambient temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)

Process temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)

Process pressure / max. overpressure limit

0.7 bar...1.5 bar abs
(10 psi...22 psi)

Main wetted parts

UP (unsaturated polyester)
Silicon / Al PTFE coated

Process connection

G / NPT 1"

Blocking distance

0.7 m / 80 °C,
(2.3 ft / 176 °F),
0.9 m / 150 °C,
(2.9 ft / 302 °F)

Max. measurement distance

45 m (148 ft)

Communication

Transmitter:
4...20 mA HART
Profibus DP

Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex

Options

Second 4...20 mA output
