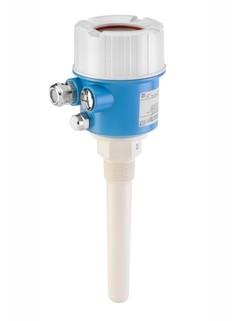

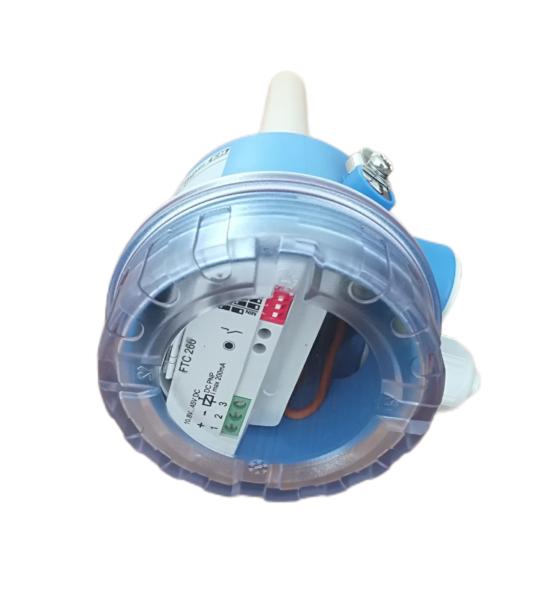

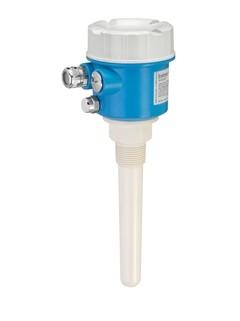

Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Endress Hauser Minicap FTC260 Capacitance Level Sensor with NEPSI Approval
Specifications
Brand Name :
Endress+Hauser
Model Number :
FTC260-2B4J1
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Approval :
NEPSI Ex ta/tb IIIC Da/Db
Process Connection :
Thread ANSI NPT1, PPS
Switch Output :
Relay 20-253VAC/20-55VDC
Housing; Cable Entry :
F34 Alu IP66; gland M20 NEMA Type 4 Encl
Additional Option :
Basic version
Net weight: :
0.920 Kilogram
Description

Endress+Hauser Capacitance Point level detection Minicap FTC260

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

  • Process connection: Threads

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +25bar (-14.5 to +360psi)

  • Sensor length: 140mm (5.51")

  • International explosion protection certificates, overfill prevention WHG

Measuring principle

Capacitive Solid

Characteristic / Application

Compact rod probe with build-up compensation
easy start up

Specialities


FDA-listed material

Supply / Communication

10,8 ... 45V DC, DC-PNP 3-wire
20 ... 253V AC, or
20 ... 55V DC, Relay output

Process temperature

-40°C ...+120°C
(-40°F ...+248°F)

Process pressure / max. overpressure limit

-1 ... 25 bar
(-14.5 ... 360 psi)

Main wetted parts

PPS = Polyphenylene sulphide
(glass fibre content approx. 40%)

Process connection

R1"
NPT1"

Sensor length

140 mm (5.51")

Communication

PNP transistor output
Relay output (potential-free
change-over contact / SPDT)

Certificates / Approvals

ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex

Options


Aluminium Housing

Application limits

Solids, grain size max. 30 mm (1.2"),
DK min 1,6
Flexural strength 1400 N (at probe tip)
