1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
Specifications
Brand Name :
Endress+Hauser
Model Number :
CM14-1020/0（CM14-AAM）
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Approval :
Non-hazardous area
Sensor Input: :
Digital,Memosens pH, ORP (glass)
Output :
2 x 0/4 to 20 mA
communication :
2 x Relay
Gross weight: :
Gross weight:
Country of origin :
DE
Description

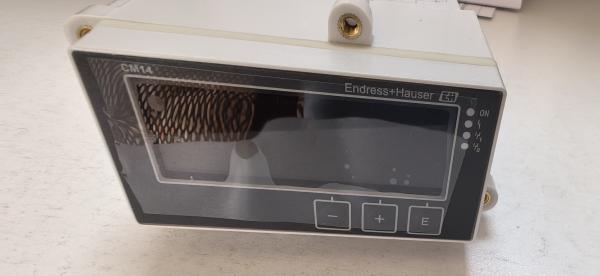

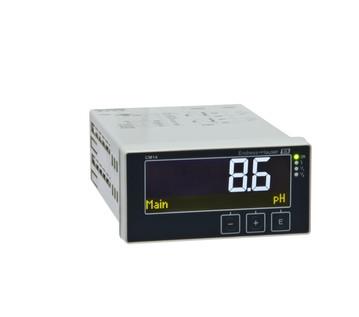

Endress Hauser 1-channel transmitter Liquiline CM14

Liquiline CM14 is a basic transmitter that offers all that you need to run a standard measuring point. It fits in the common cabinet cut-outs and is easy to commission thanks to Memosens digital technology. The Memosens hot plug and play concept allows you to quickly install and configure your digital pH/ORP, conductivity or dissolved oxygen sensors. Liquiline CM14 is compact, easy-to-operate, and cost efficient.

The Liquiline CM14 panel transmitter is suitable for all applications in non-hazardous areas, for example in these industries and their utilities:

  • Food & Beverages

  • Power & Energy

  • Water & Wastewater

Liquiline CM14 features the following protocols and interfaces:

  • 0/4...20 mA

  • Measuring principle

    Potentiometric

    Application

    Water, waste water

    Characteristic

    4-wire transmitter with a two-line display

    Measuring principle

    pH/ORP transmitter for digital Memosens sensors.

    Design

    panel housing (48x96 mm)

    Material

    panel housing, polycarbonate
    front membrane polyester

    Dimension

    48 mm x 96 mm x 152 mm(built in depth)
    3.74x3.74x5.98 inch (built in depth)

    Temperature sensor

    Display and current output

    Ex certification

    no

    Ingress protection

    Front IP65 , NEMA 4X, Body IP20

    Input

    One-channel-transmitter

    Output / communication

    2 x 0/4 to 20 mA
    2 x Relay

    Additional certifications

    CSA C/US general purpose
    UL listed

  • 1Channel Endress Hauser Transmitter Liquiline CM14 For PH ORP Sensors
