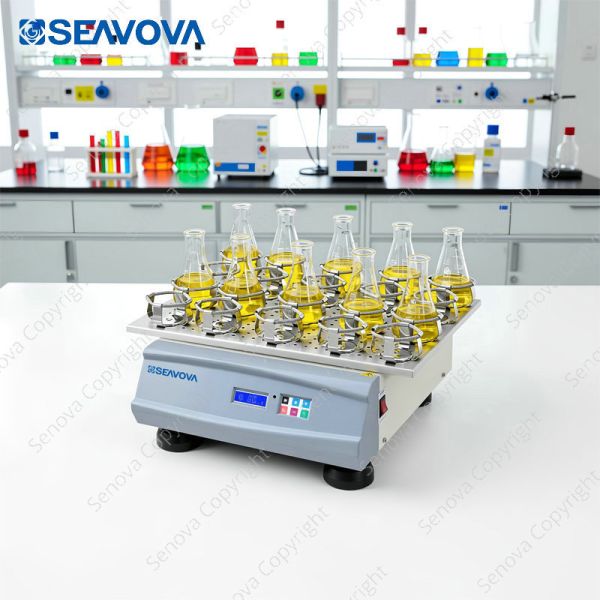

Orbital Linear Switchable Benchtop Laboratory Shaker RS-101
Orbital Linear Switchable Benchtop Laboratory Shaker RS-101
Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1unit
Price :
Available upon request
Packaging Details :
plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
100 units
Model Number :
RS-101
Shaking Mode :
Linear-Orbital (Switchable)
Shaking Platform Size :
500x400mm
Maximum Load Capacity :
0-50(30-300rpm) /Φ50(600rpm)
Speed Display :
LCD
Speed Range :
30-300rpm /600rpm
Orbit :
0-50mm adjustable
Timing :
0-999.59Hr
Power Supply :
AC 200-240V/50-60Hz. Optional: AC110V/60Hz
Description
Orbital-Linear Switchable Benchtop Laboratory Shaker RS-101
Main Features
  • ABS exterior
  • P.I.D controller
  • LCD display with backlight
  • Single-shaft 5-dimensions technology
  • AC inductive long-life brushless motor, with wide speed regulation, constant torque, constant speed of rotation, and maintenance-free
  • High/low limit over temperature acoustic & visual alarm, high/low limit over speed alarm, electric current leakage and over load protection. Motor over-heat protection. Automatic power cut-off in case of temperature out of control or abnormal over-temperature
  • Repeat, increment (step) and 8-segment curve programming setting
  • Power-failure recovery, parameter memory, temperature/speed calibration, time display, and room/working temperature display.
  • Acceleration control circuit ensures soft start, smooth acceleration and safety of samples
  • Flexible orbits and speed: Speed 50-300(Orbit Φ0-50mm)/600rpm(Orbit Φ50mm)
Technical Data
Model RS-101
Control P.I.D.
Display LCD
Convection Mode High Speed Circulation
Shaking Mode Linear-Orbital (Switchable)
Drive Single-shaft balance device
Working Environment Temperature: 15℃-35℃.Humidity 20%-90%
Temp. Range Room Temp
Speed Range(rpm) 50-300/600
Speed Accuracy ±1rpm
Orbit Φ0-50(30-300rpm) /Φ50(600rpm)
Refrigerant /
Timing Range 0-999.59Hr
Platform Size(mm) 500x400
*Flask Capacity 1000mlx6, 500mlx15,or, 250mlx25
Platform Qty. 1 PC
Chamber Dimensions /
Capacity (L) /
N.W./G.W. (Kg) 49/65
Overall Dimensions (DxWxH,mm) 500x480x220
Packing Size 62x62x46(LxWxH,cm)
Power Supply AC 200-240V/50-60Hz. Optional: AC110V/60Hz
Power 80W
Platform Material SUS304
Chamber Material /
Exterior ABS +steel

Orbital Linear Switchable Benchtop Laboratory Shaker RS-101Orbital Linear Switchable Benchtop Laboratory Shaker RS-101Orbital Linear Switchable Benchtop Laboratory Shaker RS-101Orbital Linear Switchable Benchtop Laboratory Shaker RS-101

Introduction about laboratory shaker

Functioning as essential automation device, laboratory shaker provides reliable uniform agitation (benchtop/floor). Operates by moving holding platform in orbital/linear motions—creates homogeneous mixtures, ensures oxygenation, maintains suspension—vital for rigorous investigation.

Principle: standardizing mixing via mechanical means; replaces manual inconsistency. Common variants: orbital (general), rocking (gentle), incubator (temp-controlled). Modern digital interfaces provide exact control over parameters for comparative studies.

Applied in numerous contexts: growing yeast in fermentation studies, dispersing nanoparticles in materials science, ensuring efficient hybridization in molecular diagnostics. Attributes: powerful thermally protected motor, user-friendly control (tactile/touchscreen), compact footprint optimizing space.
