Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1unit
Price :
Available upon request
Packaging Details :
plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
100 units
Model Number :
SFS-705
Shaking Movement :
Orbital
Control Type :
Touch Screen LCD
Tray Size :
Orbital Laboratory Shaker
Orbit :
100mm
Speed :
30-250RPM
Capacity :
5000mlx12, 1000mlx40,500mlx60, 250mlx96
Description

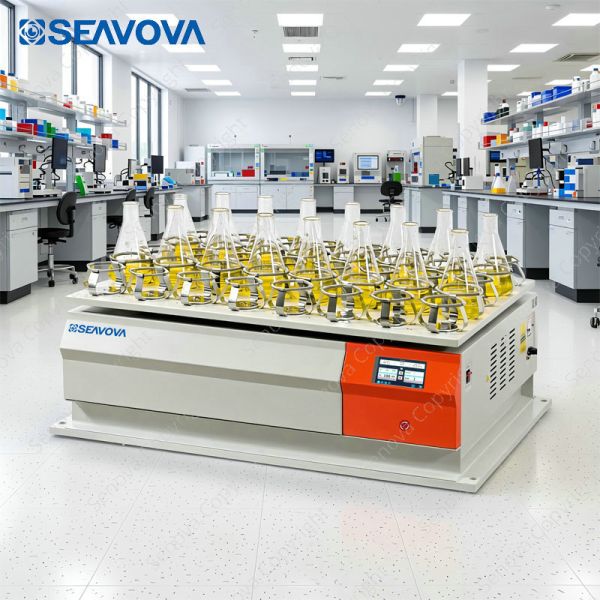

Big Capacity Single-deck Floor Orbital Shaker SFS-705
Main Features
  1. Precise P.I.D. temperature control
  2. Heavy-duty steel construction
  3. Clear operational display
  4. Flexible program settings
  5. Automated timing functions
  6. Parameter storage system
  7. Safety monitoring network
  8. Robust servo drive system
  9. Durable alloy components
  10. Protected start protocol
  11. Thermal safety mechanisms
  12. Emergency control features
  13. Standard work platform
  14. Connectivity options
  15. Accessory compatibility
Technical Data
Control P.I.D.

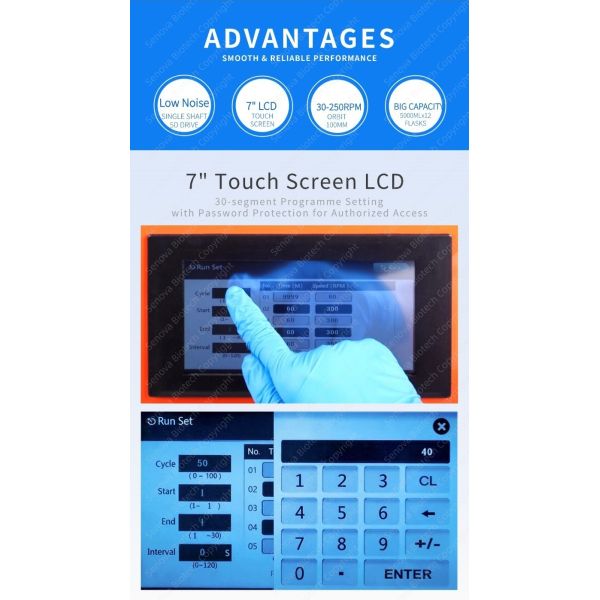

Display LCD
Program Control 8 segments (user programmable)
Safety Protection Automatic stop and start, timing, time display, power-off recovery, parameter memory
Auxiliary Function Monitoring timer, Independent over-speed acoustic/visual alarm, independent current leakage and over-load protection
Convection Mode Natural Convection
Shaking Mode Orbital
Timing Range 0-999.59 hr/Continuous
Drive Single-shaft balance device/Linear(Reciprocating)
Working Environment 15℃-35℃
Speed Range(rpm) 30-250
Speed Accuracy ±1rpm
Orbit Φ100mm
Capacity 5000mlx12, 1000mlx40,500mlx60, 250mlx96
Platform Size(mm) 1108x740
Platform Qty. 1
N.W./G.W. (Kg) 323/355
Overall Dimensions(DxWxH,mm) 1270x795x480
Packing Size(LxWxH,cm) 132x85x52
Power 250W
Power Supply AC 200-240V/50-60Hz. Optional: AC110V/60Hz
Construction Steel with powder coating

Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-705Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-705Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-705Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-705Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-705

Introduction about laboratory shaker

Serving as a workhorse for automated mixing, the laboratory shaker (in benchtop and floor configurations) provides consistent agitation for samples in various vessels. Through controlled orbital or linear motion, it homogenizes mixtures, ensures proper gas exchange in biological cultures, and prevents component settling. This capability is indispensable for maintaining uniform experimental conditions, which is vital for the integrity of scientific data.

The instrument operates on the principle of applying reproducible mechanical motion. This standardizes a key sample processing step. Common types include the orbital shaker for general use, the rocker for gentle agitation of blots, and the incubator shaker for combined temperature and motion control. The integration of digital controls has been transformative, allowing for precise setting, memory storage, and real-time monitoring of speed, time, and temperature parameters.

Applications span multiple disciplines. Shakers are used for fermenting cultures in biotechnology. They facilitate dissolution testing in pharmaceutical quality control. In immunohistochemistry, they provide consistent agitation for antibody incubation steps. Salient characteristics frequently encompass a powerful and quiet drive system, a platform designed for easy loading and securing of samples, and robust construction that ensures longevity even with frequent use.
