Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1unit
Price :
Available upon request
Packaging Details :
plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
100 units
Model Number :
DFS-903
Keyword :
Large Capacity Lab Orbital Shaker
Capacity :
1000mlx112, 500mlx216,250mlx300
Amplitude :
30-250 mm
Orbit :
50mm
Shaking Movement :
Orbital
Power Supply :
220V, 50Hz
Description

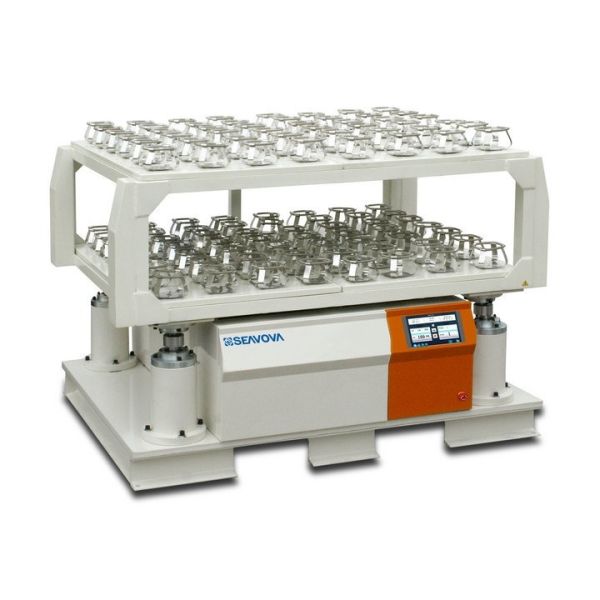

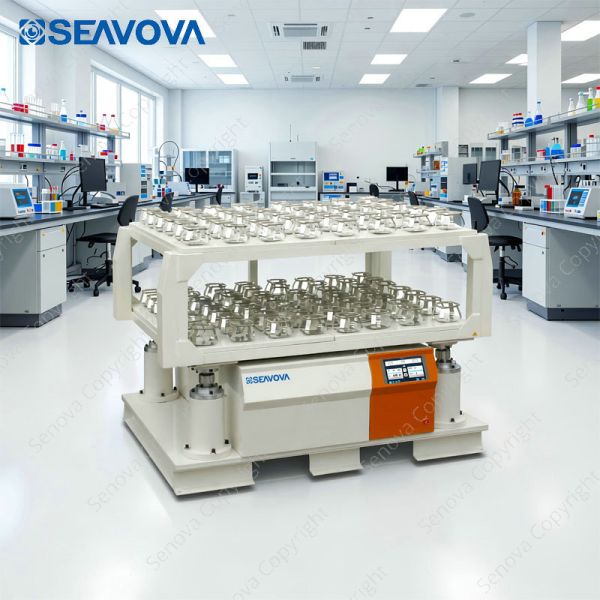

Big Capacity 2-deck Floor Orbital Shaker DFS-903
Main Features
  1. Intelligent P.I.D. microprocessor maintains exact experimental conditions
  2. Robust powder-coated housing protects internal components

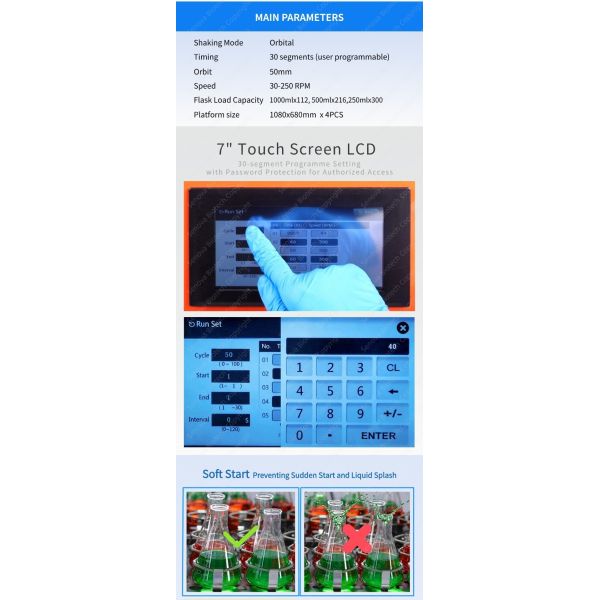

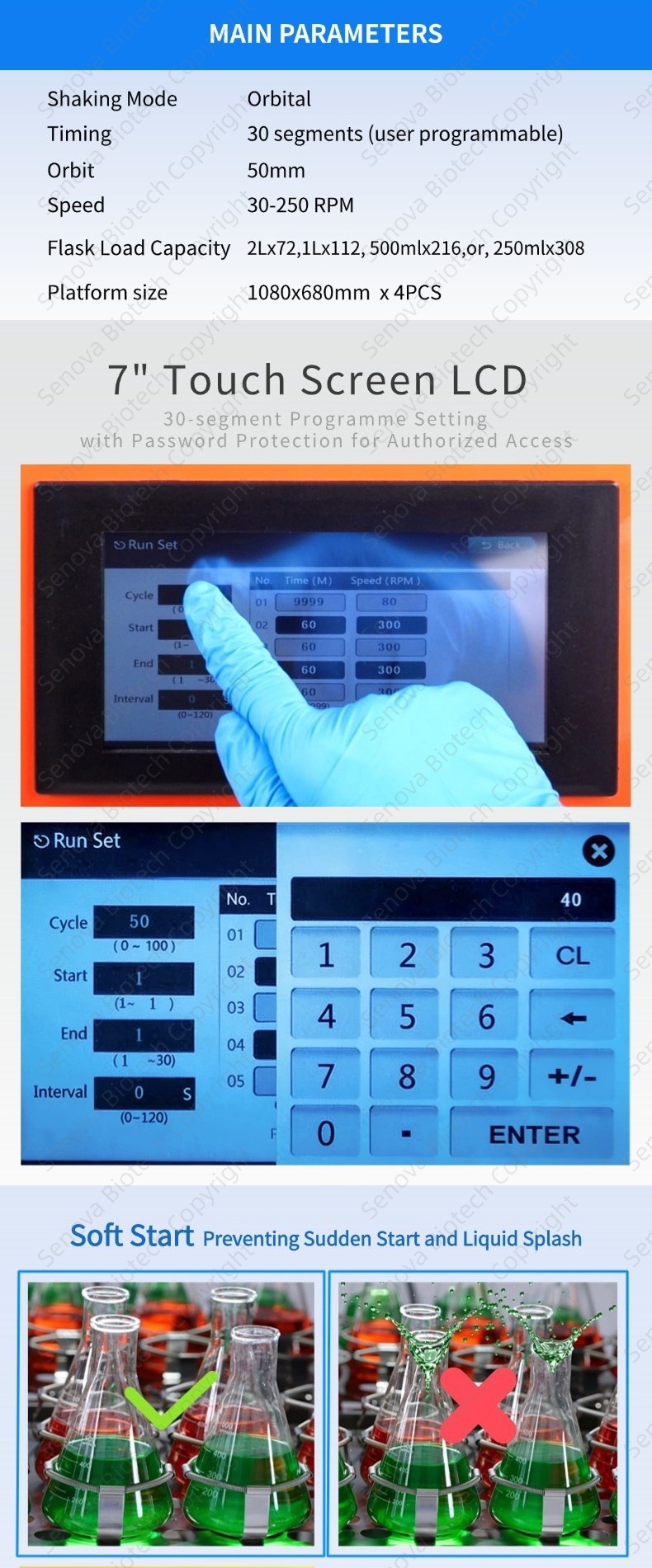

  3. High-resolution 7" colour touch interface provides real-time data visualization

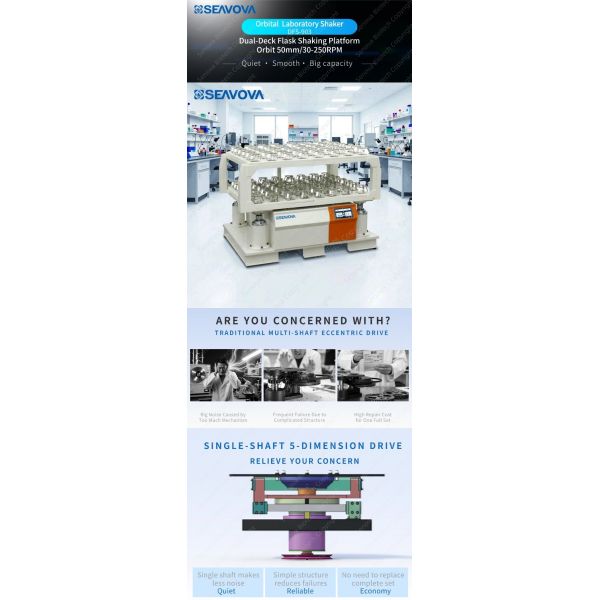

  4. Servo-driven single-shaft 5-dimensions technology delivers consistent orbital motion
  5. Extensive 30-segment programming enables multi-phase experimental designs
  6. Automated operation with programmable timing and recovery functions
  7. Smart parameter memory reduces setup time for repeated protocols
  8. Integrated safety monitoring with independent alarm systems
  9. Isolated electrical protection prevents laboratory-wide disruptions
  10. Engineered with premium chrome alloy and precision iron castings
  11. Industrial-grade bearings ensure reliable long-term performance
  12. Gradual soft start protects delicate cell cultures and reagents
  13. Automatic shutdown protocols for equipment protection
  14. Program-controlled emergency stop enhances laboratory safety

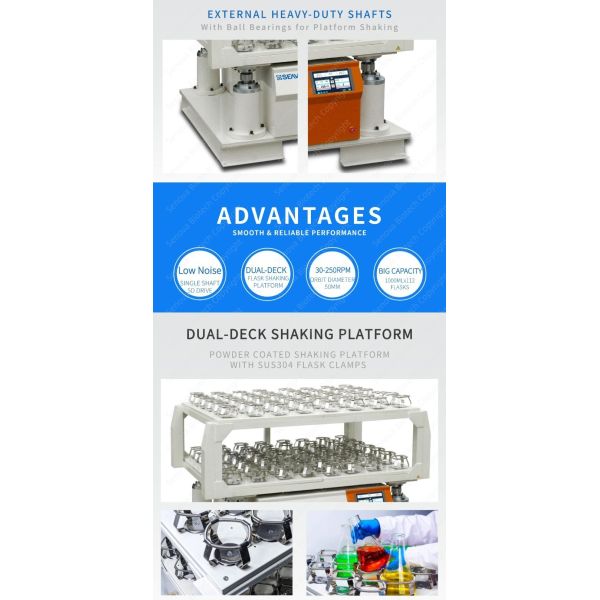

  15. Multiple shaking platforms support high-volume parallel processing
  16. Standardized flask clamping system for secure sample containment

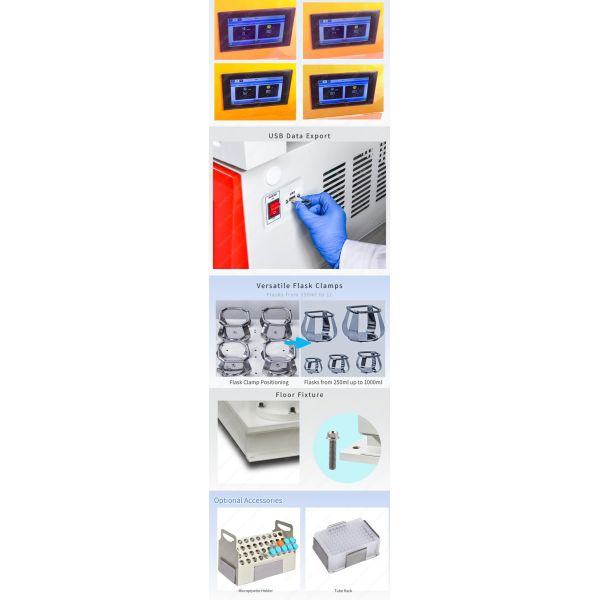

  17. Data export capability via optional USB interface
  18. Modular rack systems accommodate diverse sample formats
Technical Data
Model DFS-903
Control P.I.D.
Display LCD
Program Control 8 segments (user programmable)
Safety Protection Automatic stop and start, timing, time display, power-off recovery, parameter memory
Auxiliary Function Monitoring timer, Independent over-speed acoustic/visual alarm, independent current leakage and over-load protection
Convection Mode Natural Convection
Shaking Mode Orbital
Drive Single-shaft drive
Working Environment 15℃-35℃
Timing Range 0-999.59 hr/Continuous
Speed Range(rpm) 30-250
Speed Accuracy ±1rpm
Orbit Φ50mm
Capacity 1000mlx112, 500mlx216,250mlx300
Platform Size(mm) 1080x680
Platform Qty. 4
N.W./G.W. (Kg) 730/789
Overall Dimensions(LxWxH,mm) 1590x1120x950
Packing List(LxWxH,cm) 164x117x107
Power 250W
Power Supply AC 200-240V/50-60Hz. Optional: AC110V/60Hz
Construction Powder Coated Steel Housing

1000mlx112 Lab Orbital Shaker 2 Deck Floor Orbital Shaker For Incubator / Model DFS-9031000mlx112 Lab Orbital Shaker 2 Deck Floor Orbital Shaker For Incubator / Model DFS-9031000mlx112 Lab Orbital Shaker 2 Deck Floor Orbital Shaker For Incubator / Model DFS-9031000mlx112 Lab Orbital Shaker 2 Deck Floor Orbital Shaker For Incubator / Model DFS-903

Introduction about laboratory shaker

A laboratory shaker is an essential instrument for providing uniform agitation to samples. Available as benchtop or freestanding floor devices, it operates by moving container-holding platforms in orbital or linear patterns. This motion is designed to achieve complete mixing, promote necessary aeration for aerobic processes, and maintain consistent suspension of particulates. The reliability of this function underpins experimental consistency in research and analytical laboratories.

Its functionality is rooted in creating a stable and repeatable mixing condition. Mechanical agitation supersedes the inconsistency of manual techniques. The standard orbital shaker is versatile for many tasks. Incubator shakers add precise thermal regulation. Large floor shakers are designed for industrial-scale applications. Contemporary models leverage digital technology for exact parameter control, with accurate speed settings and programmable timers that enhance operational precision.

The instrument's utility is demonstrated in key areas. It is critical for growing microbial cultures in shake flasks for metabolic studies. It is used in chemistry to enhance extraction efficiency. In molecular biology, it ensures even washing of membranes in Southern blotting. Notable features often include a wide adjustable speed range, a durable motor built for continuous operation, and a user-centric design with an intuitive control layout and clear visual indicators.
