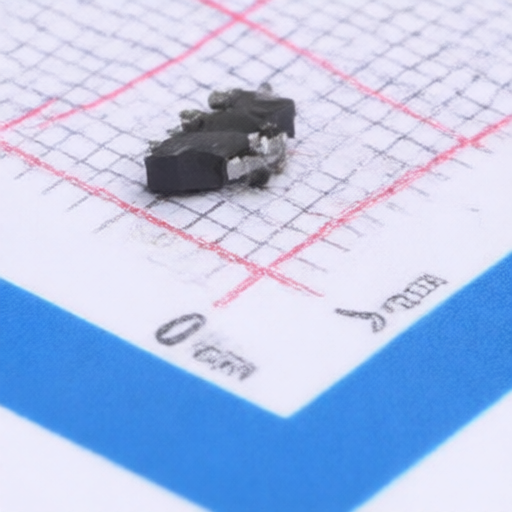

General Purpose NPN Transistor KUU BCX56-16 Featuring SOT-89 Package for Amplification and Switching
General Purpose NPN Transistor KUU BCX56-16 Featuring SOT-89 Package for Amplification and Switching
Specifications
Emitter-Base Voltage(Vebo) :
5V
Current - Collector Cutoff :
100nA
Pd - Power Dissipation :
500mW
Transition frequency(fT) :
130MHz
type :
NPN
Number :
1 NPN
Current - Collector(Ic) :
1A
Collector - Emitter Voltage VCEO :
80V
Operating Temperature :
-55℃~+150℃
Description :
Bipolar (BJT) Transistor NPN 80V 1A 130MHz 0.5W Surface Mount SOT-89
Mfr. Part # :
BCX56-16
Model Number :
BCX56-16
Package :
SOT-89
Description

Product Overview

The BCX54/BCX55/BCX56 series are NPN general-purpose bipolar transistors housed in the SOT-89 package. These transistors are designed for a wide range of applications requiring reliable amplification and switching capabilities.

Product Attributes

  • Brand: YONGYUTAI (implied by website)
  • Package Type: SOT-89
  • Transistor Type: NPN General Purpose

Technical Specifications

CharacteristicSymbolBCX54/-10/-16BCX55/-10/-16BCX56/-10/-16UnitConditions
Absolute Maximum Ratings
Collector-Base VoltageVCBO4560100V
Collector-Emitter VoltageVCEO456080V
Emitter-Base VoltageVEBO555V
Collector CurrentIC100010001000mA
Power DissipationPC(Ta=25)500500500mW
Thermal Resistance Junction-AmbientRJA250250250/W
Junction and Storage TemperatureTJ,Tstg-55 to +150
Electrical Characteristics (TA=25 unless otherwise noted)
Collector-Base Breakdown VoltageBVCBO4560100VIC= 100uA, IE=0
Collector-Emitter Breakdown VoltageBVCEO456080VIC= 10mA, IB=0
Emitter-Base Breakdown VoltageBVEBO555VIE= 100uA, IC=0
Collector-Base Leakage CurrentICBO100nAVCB= 30V (BCX54), VCB= 50V (BCX55), VCB= 80V (BCX56), IE=0
Emitter-Base Leakage CurrentIEBO100nAVEB= 5V, IC=0
DC Current Gain (HFE(1))HFE(1)404040VCE= 2V, IC= 5mA
DC Current Gain (HFE(2))HFE(2)6363100VCE=2V, IC=0.15A
63 (-10)63 (-10)160 (-16)
100 (-16)100 (-16)250 (-16)
DC Current Gain (HFE(3))HFE(3)252525VCE= 2V, IC= 0.5A
Collector-Emitter Saturation VoltageVCE(sat)0.5VIC= 0.5A, IB= 50mA
Base-Emitter Saturation VoltageVBE(sat)1VIC= 500mA, IB= 50mA
Base-Emitter On VoltageVBE(on)1VVCE= 2V, IC= 0.5A
Transition FrequencyfT130MHZVCE= 5V, IC= 10mA
Output CapacitanceCob15pFVCB= 10V, IE=0, f=1MHZ
