High gain NPN silicon epitaxial transistor GUOXIN JIAPIN SEMICONDUCTOR FC3356G designed for VHF UHF CATV amplifier circuits
High gain NPN silicon epitaxial transistor GUOXIN JIAPIN SEMICONDUCTOR FC3356G designed for VHF UHF CATV amplifier circuits
Specifications
Emitter-Base Voltage(Vebo) :
2.5V
Current - Collector Cutoff :
100nA
Pd - Power Dissipation :
200mW
Transition frequency(fT) :
7GHz
type :
NPN
Number :
1 NPN
Current - Collector(Ic) :
100mA
Collector - Emitter Voltage VCEO :
12V
Description :
Bipolar (BJT) Transistor NPN 12V 100mA 7GHz 200mW Surface Mount SC-59
Mfr. Part # :
FC3356G
Model Number :
FC3356G
Package :
SC-59
Description

Product Description

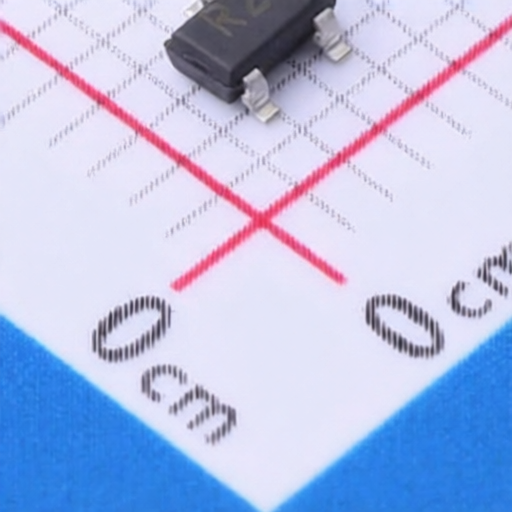

The FC3356G is a high-frequency, low-noise NPN silicon epitaxial bipolar transistor manufactured by Guo Xin Jia Pin Semiconductor Co., Ltd. It features high power gain, low noise figure, wide dynamic range, and ideal current characteristics. Packaged in an SC-59 surface-mount package, it is primarily used in VHF, UHF, and CATV high-frequency broadband low-noise amplifiers.

Product Attributes

  • Brand: (Guo Xin Jia Pin SEMICONDUTOR)
  • Material: NPN Silicon Epitaxial Bipolar
  • Packaging: SC-59

Technical Specifications

ParameterSymbolTypical ValueUnitTest Conditions
High Gain (|S21e|)|S21e|11.5dBVCE=10V, IC=20mA, f=1GHz
Low Noise Figure (NF)NF1.3dBVCE=10V, IC=7mA, f=1GHz
Gain Bandwidth Product (fT)fT7GHzVCE=10V, IC=20mA, f=1GHz
Collector-Base Breakdown VoltageVCBO20VIC=1.0A
Collector-Emitter Breakdown VoltageVCEO12V
Emitter-Base Breakdown VoltageVEBO2.5V
Collector CurrentIC100mA
Power DissipationPC200mW
Junction TemperatureTj150
Storage TemperatureTstg-65 ~ +150
Collector-Base Leakage CurrentICBO0.1AVCB=10V
Emitter-Base Leakage CurrentIEBO0.1AVEB=1V
DC Current GainHFE90 - 250VCE=10V,IC=20mA
Output Feedback CapacitanceCre0.65pFVCB=10V,IE=0mA,f=1MHz

2204211700_GUOXIN-JIAPIN-SEMICONDUCTOR-FC3356G_C2992560.pdf
