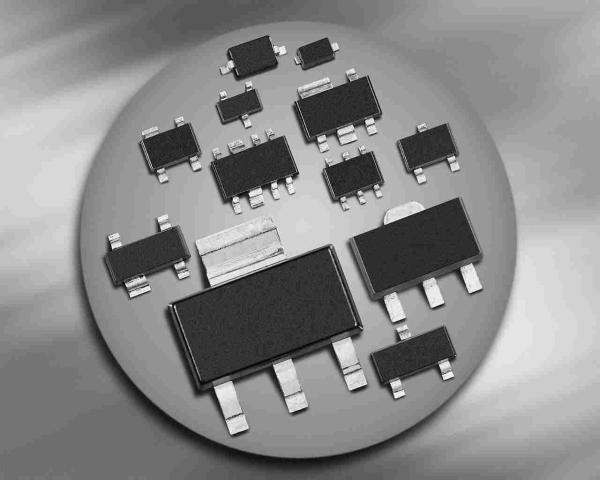

Pb-free silicon tuning diode Infineon BBY55-02WH6327 designed for low voltage operation in VCO circuits
Pb-free silicon tuning diode Infineon BBY55-02WH6327 designed for low voltage operation in VCO circuits
Specifications
Capacitance Ratio :
2.5@C2V/C10V
Diode Configuration :
Independent
DC Reverse Voltage(Vr) :
16V
Diode Capacitance :
6.5pF@10V,1MHz
Description :
2.5@C2V/C10V Independent 16V 6.5pF@10V,1MHz SCD80-2 Variable Capacitance (Varicaps, Varactors) RoHS
Mfr. Part # :
BBY55-02WH6327
Model Number :
BBY55-02WH6327
Package :
SCD80-2
Description

Product Overview

The BBY55 series are silicon hyperabrupt tuning diodes designed for low tuning voltage operation in VCOs for mobile communications equipment. These diodes offer excellent linearity, high Q, and low series resistance, along with a very low capacitance spread. They are Pb-free and RoHS compliant.

Product Attributes

  • Brand: Infineon Technologies
  • Material: Silicon
  • Compliance: Pb-free (RoHS compliant)

Technical Specifications

Model Type Package LS (nH) Marking
BBY55-02V single SC79 0.6 77 white
BBY55-02W single SCD80 0.6 7
BBY55-03W single SOD323 1.8 7
Parameter Symbol Value Unit Condition
Diode reverse voltage VR 16 V TA = 25C
Forward current IF 20 mA TA = 25C
Operating temperature range Top -55 ... 150 C
Storage temperature Tstg -55 ... 150 C
Reverse current IR - nA VR = 15 V, TA = 25C
Reverse current IR - 100 nA VR = 15 V, TA = 85C
Diode capacitance CT 17.5 - 19.6 pF VR = 1 V, f = 1 MHz
Diode capacitance CT 14 - 16 pF VR = 2 V, f = 1 MHz
Diode capacitance CT 11.6 - 13.6 pF VR = 3 V, f = 1 MHz
Diode capacitance CT 10 - 12 pF VR = 4 V, f = 1 MHz
Diode capacitance CT 5.5 - 6.5 pF VR = 10 V, f = 1 MHz
Capacitance ratio CT2/CT10 2 - 3 VR = 2 V, VR = 10 V, f = 1 MHz
Series resistance rS - 0.4 VR = 5 V, f = 470 MHz
Series resistance rS - 0.15 VR = 5 V, f = 470 MHz

2411220122_Infineon-BBY55-02WH6327_C3272470.pdf
