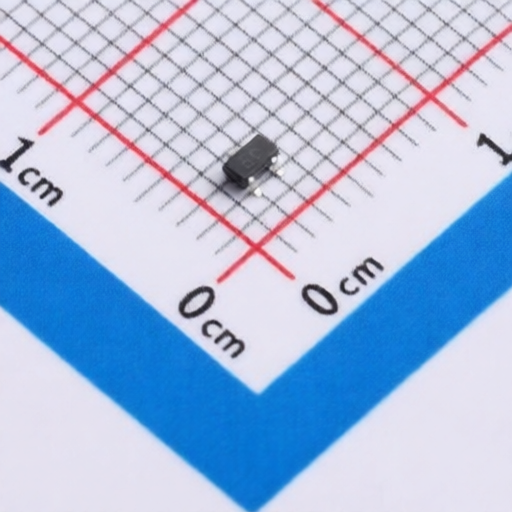

PNP transistor GOODWORK BC807-40W designed for automatic insertion in compact electronic assemblies
PNP transistor GOODWORK BC807-40W designed for automatic insertion in compact electronic assemblies
Specifications
Description :
SOT-323 Single Bipolar Transistors RoHS
Mfr. Part # :
BC807-40W
Model Number :
BC807-40W
Package :
SOT-323
Description

Product Overview

The BC807 is a PNP SOT-323 transistor ideally suited for automatic insertion. It features an axial planar die construction and has a complementary NPN type available (BC817). This transistor is designed for various electronic applications requiring PNP functionality.

Product Attributes

  • Brand: Not specified
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified
  • Marking: 807W -16:5A; 807W -25:5B; 807W -40:5C
  • Pinout: 1. BASE, 2. EMITTER, 3. COLLECTOR

Technical Specifications

SymbolParameterBC807-16 MINBC807-16 MAXBC807-25 MINBC807-25 MAXBC807-40 MINBC807-40 MAXUNIT
VCBOCollector-base breakdown voltage-50-50-50V
VCEOCollector-emitter breakdown voltage-45-45-45V
VEBOEmitter-base breakdown voltage-5V
ICBOCollector cut-off current-0.1A
ICEOCollector cut-off current-0.2A
IEBOEmitter cut-off current-0.1A
hFE(1)DC current gain100160250400250600
VCE(sat)Collector-emitter saturation voltage-0.7V
VBE(sat)Base-emitter saturation voltage-1.2V
fTTransition frequency100MHz
SymbolParameterValueUnits
PCCollector Power Dissipation0.3W
TjJunction Temperature150
TstgStorage Temperature-55-150

2510101615_GOODWORK-BC807-40W_C52037865.pdf
