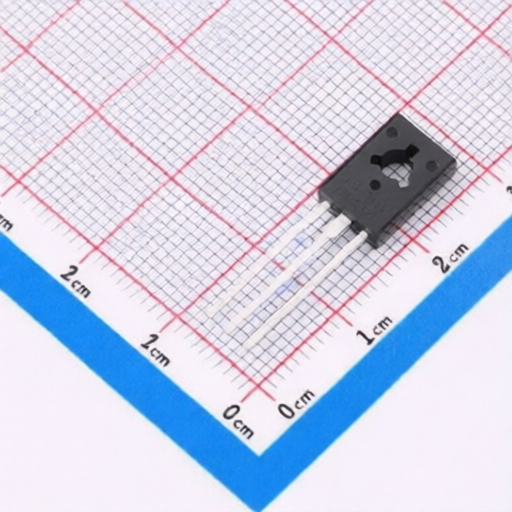

NPN transistor UTC 2SD882L-P-T60-K suitable for in audio amplifiers voltage regulators and DC-DC converter circuits
NPN transistor UTC 2SD882L-P-T60-K suitable for in audio amplifiers voltage regulators and DC-DC converter circuits
Specifications
Emitter-Base Voltage(Vebo) :
7V
Current - Collector Cutoff :
1uA
DC Current Gain :
160@1A,2V
Transition frequency(fT) :
80MHz
Vce Saturation(VCE(sat)) :
300mV
type :
NPN
Pd - Power Dissipation :
1W
Current - Collector(Ic) :
3A
Collector - Emitter Voltage VCEO :
30V
Operating Temperature :
-
Description :
Bipolar (BJT) Transistor NPN 30V 3A 80MHz 1W Through Hole TO-126
Mfr. Part # :
2SD882L-P-T60-K
Model Number :
2SD882L-P-T60-K
Package :
TO-126
Description

Product Overview

The UNISONIC TECHNOLOGIES CO., LTD 2SD882 is an NPN Silicon Transistor designed for medium power, low voltage applications. It features high current output up to 3A and low saturation voltage, making it a complementary part to the 2SB772. This transistor is suitable for use in audio power amplifiers, DC-DC converters, and voltage regulators.

Product Attributes

  • Brand: UNISONIC TECHNOLOGIES CO., LTD
  • Material: Silicon
  • Certifications: Lead Free, Halogen Free

Technical Specifications

ParameterSymbolTest ConditionsMinTypMaxUnit
ABSOLUTE MAXIMUM RATING
Collector-Base VoltageVCBO40V
Collector-Emitter VoltageVCEO30V
Emitter-Base VoltageVEBO7V
Collector CurrentIC3A
Pulse Collector CurrentICP7A
Base CurrentIB0.6A
Collector Dissipation (TA=25C)PCTO-251/TO-2521W
TO-126/TO-126C/TO-126S/TO-92NL0.8W
Junction TemperatureTJ+150C
Storage TemperatureTSTG-55~+150C
ELECTRICAL CHARACTERISTICS
Collector-Base Breakdown VoltageBVCBOIC=100A, IE=040V
Collector-Emitter Breakdown VoltageBVCEOIC=1mA, IB=030V
Emitter-Base Breakdown VoltageBVEBOIE=100A, IC=07V
Collector Cut-off CurrentICBOVCB=30V, IE=01000nA
Emitter Cut-off CurrentIEBOVEB=3V, IC=01000nA
DC Current GainhFE1VCE=2V, IC=20mA30200
hFE2VCE=2V, IC=1A100400
Collector-Emitter Saturation VoltageVCE(SAT)IC=2A, IB=0.2A0.30.5V
Base-Emitter Saturation VoltageVBE(SAT)IC=2A, IB=0.2A1.02.0V
Current Gain Bandwidth ProductfTVCE=5V, IC=0.1A80MHz
Output CapacitanceCobVCB=10V, IE=0, f=1MHz45pF

2304140030_UTC-2SD882L-P-T60-K_C71140.pdf
