A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Specifications
Product name :
Quilting Pins&Washers
Material :
Stainless steel 304/316/316L
Base size :
1-13/16" (30mm)
Pin size :
2.0mm,2.7mm
Pin length :
25mm-300mm
Washer :
25mm,30mm
Usage :
thermal insulation system
Accessories :
lacing anchor&hook&washer
Brand Name :
HUIHAO
Model Number :
Quilting pins
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
3000pcs
Payment Terms :
L/C,T/T
Supply Ability :
100000 pcs per 10 days
Delivery Time :
15 days after confirm the order
Packaging Details :
500pcs/1000 per bag in carton ,then on pallet
Description
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Product Attributes
Product name Quilting Pins & Washers
Material Stainless steel 304/316/316L
Base size 1-13/16" (30mm)
Pin size 2.0mm, 2.7mm
Pin length 25mm-300mm
Washer 25mm, 30mm
Usage Thermal insulation system
Accessories Lacing anchor & hook & washer
Product Introduction

Quilting pins and washers are used in removable insulation jackets/blankets/covers to provide quilting (support) when installing the insulation blankets or covers to fabricate a thermal insulation system. When quilting pins and washers are installed on the removable reusable insulation blankets or covers, the inside insulation will not settle down or slide around inside.

  • Head diameter: 30mm in common, others available upon request
  • Material: Stainless steel 304/316/316L, galvanized steel available for special order
  • Pin diameter: 2.0mm, 2.7mm in common, special sizes available upon request
  • Pin length: 25mm-300mm
  • Self locking washer: 25mm, 30mm
  • Other accessories: Lacing anchor, lacing hooks washer, lacing rings
Specifications
Product Name: A2 stainless steel quilting pins & washer
Brand Name: huihaocustom
Diameter: 12ga, 14ga
Head size: 30mm (1-13/16")
Length: 25mm-115mm
Material: Carbon steel, stainless steel 304/316
OEM: Available
Packaging Details: Packing can be customized as per requirements
Pin length: 1-1/2", 2-1/2", 3-1/2", 4-1/2", 5-1/2"
Production workmanship: Automated production
Report: Material test report and dimension measurement report
Supply Ability: 100000 Piece/Pieces per Month
Surface treatment: Zinc coated/copper plated, polished
Washer Dia.: 25mm/30mm self locking washers
Type: Used in the fabrication of insulation blankets or removable covers/pads
Product Images
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Accessories of Thermal Insulation Systems
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Lacing anchors
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems

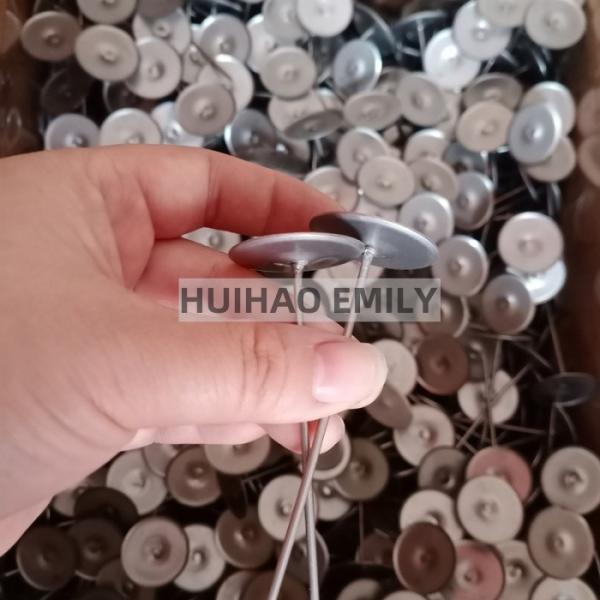

Quilting pins
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
2 holes lacing hooks
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Single holes lacing hooks
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Lacing washer
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
Self locking washers
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
D lacing rings
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
O lacing rings
Applications
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems
  • Rooftop insulation (can be applied under shingles)
  • Process piping and tanks
  • Petrochemical processing
  • Refineries and manufacturing plants
  • Hot and cold food processing
  • Wine tank insulation
  • Retort ovens
  • Refrigerated rooms and buildings
  • Heat conservation applications
  • Boats and ships
Packaging & Delivery
A2 Stainless Steel Quilting Pins Washers For Thermal Insulation Systems

Packaging Options:

  • 500 pcs per bag, 10 bags per carton, 64 cartons per pallet
  • Custom packaging available upon request

Delivery Options:

  • Sample: DHL/EMS/UPS/TNT/EXPRESS
  • Large Order: Recommended by SEA, or by AIR if in an emergency
